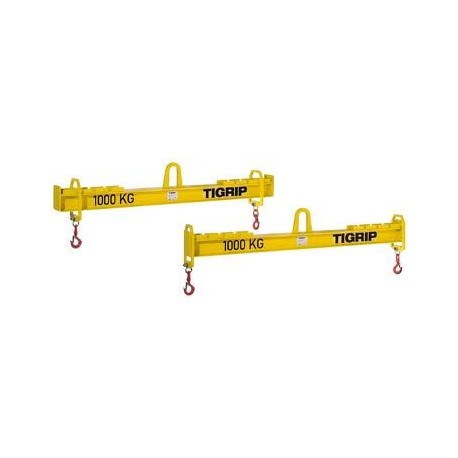

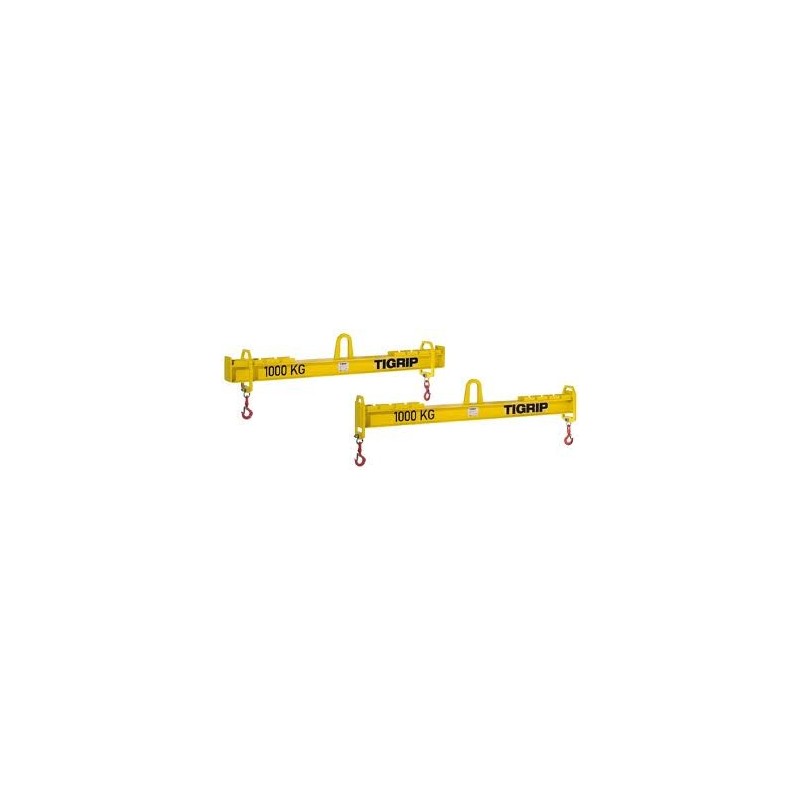

YALE TTS Spreader beam, adjustable
Capacity 1 000 - 25 000 kg
Price:
on demand
Product combinations
| Model | Capacity WLL in kg | Working width, mm |
|---|---|---|
| TTS 1,0/1500 | 1 000 | 700 - 1 500 |
| TTS 1,0/5000 | 1 000 | 2 000 - 5 000 |
| TTS 1,0/3500 | 1 000 | 1 700 - 3 500 |
| TTS 1,0/2500 | 1 000 | 1 500 - 2 500 |
| TTS 1,0/8000 | 1 000 | 3 000 - 8 000 |
| TTS 2,0/5000 | 2 000 | 2 000 - 5 000 |
| TTS 2,0/1500 | 2 000 | 700 - 1 500 |
| TTS 2,0/3500 | 2 000 | 1 700 - 3 500 |
| TTS 2,0/2500 | 2 000 | 1 500 - 2 500 |
| TTS 2,0/8000 | 2 000 | 3 000 - 8 000 |
| TTS 3,0/2500 | 3 000 | 1 500 - 2 500 |
| TTS 3,0/8000 | 3 000 | 3 000 - 8 000 |
| TTS 3,0/5000 | 3 000 | 2 000 - 5 000 |
| TTS 3,0/1500 | 3 000 | 700 - 1 500 |
| TTS 3,0/3500 | 3 000 | 1 700 - 3 500 |
| TTS 5,0/1500 | 5 000 | 700 - 1 500 |
| TTS 5,0/3500 | 5 000 | 1 700 - 3 500 |
| TTS 5,0/2500 | 5 000 | 1 500 - 2 500 |
| TTS 5,0/8000 | 5 000 | 3 000 - 8 000 |
| TTS 7,5/1500 | 7 500 | 700 - 1 500 |
| TTS 7,5/3500 | 7 500 | 1 700 - 3 500 |
| TTS 7,5/2500 | 7 500 | 1 500 - 2 500 |
| TTS 7,5/5000 | 7 500 | 2 000 - 5 000 |
| TTS 7,5/8000 | 7 500 | 3 000 - 8 000 |
| TTS 10,0/2500 | 10 000 | 1 500 - 2 500 |
| TTS 10,0/5000 | 10 000 | 2 000 - 5 000 |
| TTS 10,0/8000 | 10 000 | 3 000 - 8 000 |
| TTS 10,0/1500 | 10 000 | 700 - 1 500 |
| TTS 10,0/3500 | 10 000 | 1 700 - 3 500 |
| TTS 12,5/8000 | 12 500 | 3 000 - 8 000 |
| TTS 12,5/3500 | 12 500 | 1 700 - 3 500 |
| TTS 12,5/2500 | 12 500 | 1 500 - 2 500 |
| TTS 12,5/5000 | 12 500 | 2 000 - 5 000 |
| TTS 12,5/1500 | 12 500 | 700 - 1 500 |
| TTS 15,0/3500 | 15 000 | 1 700 - 3 500 |
| TTS 15,0/2500 | 15 000 | 1 500 - 2 500 |
| TTS 15,0/5000 | 15 000 | 2 000 - 5 000 |
| TTS 15,0/1500 | 15 000 | 700 - 1 500 |
| TTS 15,0/8000 | 15 000 | 3 000 - 8 000 |
| TTS 20,0/3500 | 20 000 | 1 700 - 3 500 |
| TTS 20,0/2500 | 20 000 | 1 500 - 2 500 |
| TTS 20,0/5000 | 20 000 | 2 000 - 5 000 |
| TTS 20,0/1500 | 20 000 | 700 - 1 500 |
| TTS 25,0/3500 | 25 000 | 1 700 - 3 500 |
| TTS 25,0/2500 | 25 000 | 1 500 - 2 500 |
| TTS 25,0/1500 | 25 000 | 700 - 1 500 |
