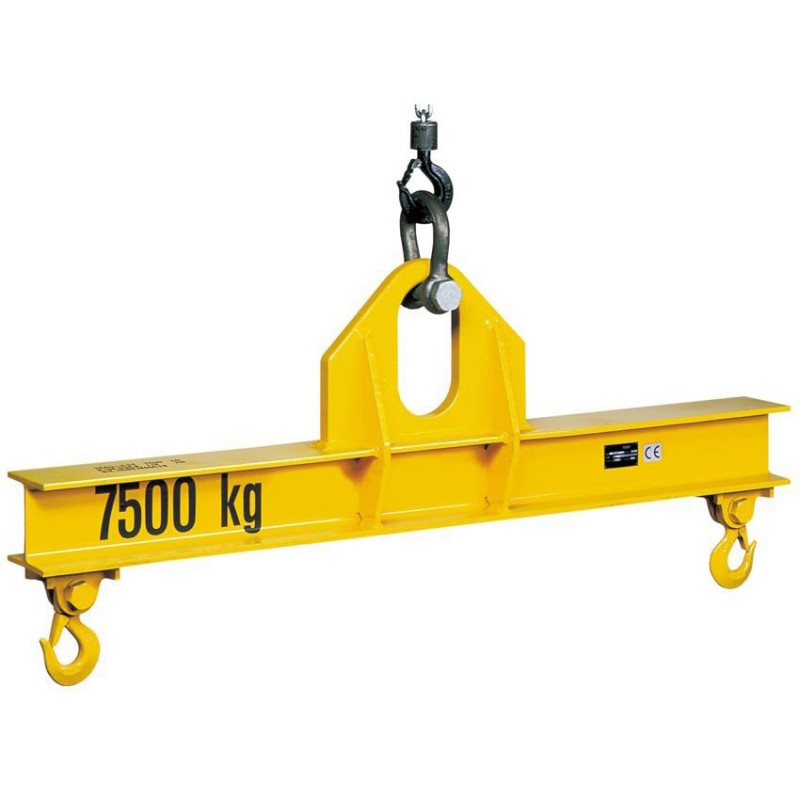

YALE TTS-E Spreader beam, non-adjustable
Capacity 1 000 - 10 000 kg
Tigrip spreader beams are the practical and safe choice for either long material to prevent sagging and shifting, or for loads where the weight has to be carefully distributed or suspended from several points. The extensive standard program offers a wide variety of capacities, working widths, adjustable ranges and hooks for common applications.
Price:
on demand
More info
Tigrip spreader beams are the practical and safe choice for either long material to prevent sagging and shifting, or for loads where the weight has to be carefully distributed or suspended from several points.
- The extensive standard program offers a wide variety of capacities, working widths, adjustable ranges and hooks for common applications.
- This heavy-duty and cost-effective standard type is complemented by various customized designs.
- These may be spreader beams with hooks for plate material, or with C-hooks, crane forks, or grabs for bulky and long materials.
- Special designs with laterally fixed hooks are fitted with slings to pick up rolls, pipes and similar objects.
- Also available are the socalled “star“ spreader beams for picking up cylindrical materials or spreader beams with side hooks and 4-point support which share the easy operation, reliability and safety of all Tigrip spreader beams.
Product combinations
| Model | Capacity WLL in kg | Working width, mm |
|---|---|---|
| TTS 1,0/1500E | 1 000 | 1 500 |
| TSS 1,0/2500E | 1 000 | 2 500 |
| TSS 1,0/3500E | 1 000 | 3 500 |
| TTS 1,0/5000E | 1 000 | 5 000 |
| TTS 1,0/1000E | 1 000 | 1 000 |
| TTS 2,0/2500E | 2 000 | 2 500 |
| TTS 2,0/3500E | 2 000 | 3 500 |
| TSS 2,0/5000E | 2 000 | 5 000 |
| TSS 2,0/1000E | 2 000 | 1 000 |
| TTS 2,0/1500E | 2 000 | 1 500 |
| TSS 3,0/1000E | 3 000 | 1 000 |
| TTS 3,0/1500E | 3 000 | 1 500 |
| TTS 3,0/2500E | 3 000 | 2 500 |
| TTS 3,0/3500E | 3 000 | 3 500 |
| TTS 3,0/5000E | 3 000 | 5 000 |
| TSS 5,0/1000E | 5 000 | 1 000 |
| TTS 5,0/1500E | 5 000 | 1 500 |
| TTS 5,0/2500E | 5 000 | 2 500 |
| TTS 5,0/3500E | 5 000 | 3 500 |
| TTS 5,0/5000E | 5 000 | 5 000 |
| TTS 7,5/2500E | 7 500 | 2 500 |
| TTS 7,5/3500E | 7 500 | 3 500 |
| TTS 7,5/5000E | 7 500 | 5 000 |
| TSS 7,5/1000E | 7 500 | 1 000 |
| TTS 7,5/1500E | 7 500 | 1 500 |
| TTS 10,0/5000E | 10 000 | 5 000 |
| TSS 10,0/1000E | 10 000 | 1 000 |
| TSS 10,0/1500E | 10 000 | 1 500 |
| TTS 10,0/2500E | 10 000 | 2 500 |
| TTS 10,0/3500E | 10 000 | 3 500 |
