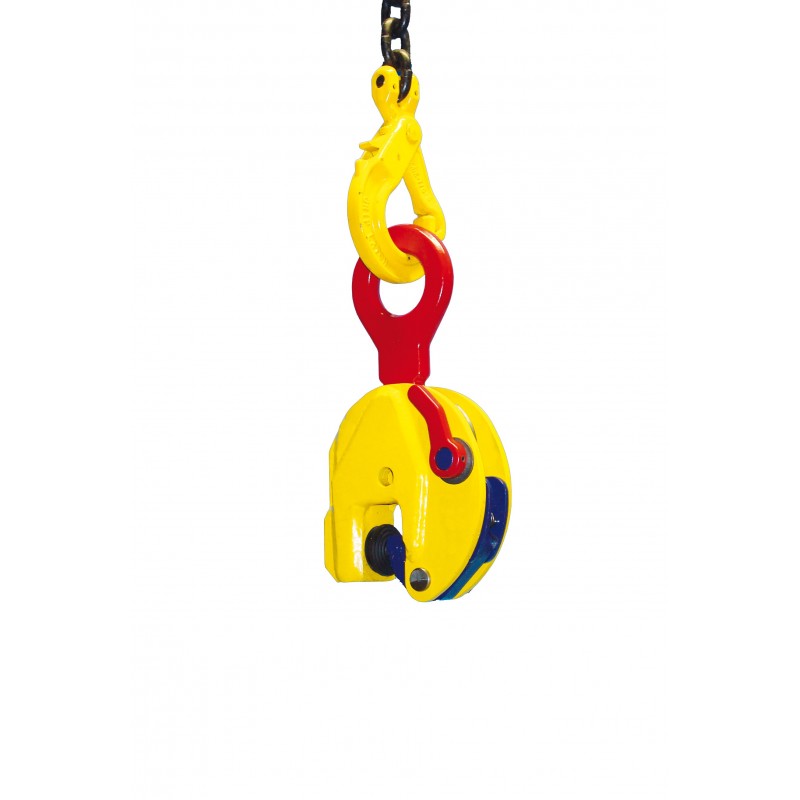

TJP / TJPU vertical clamp TERRIER

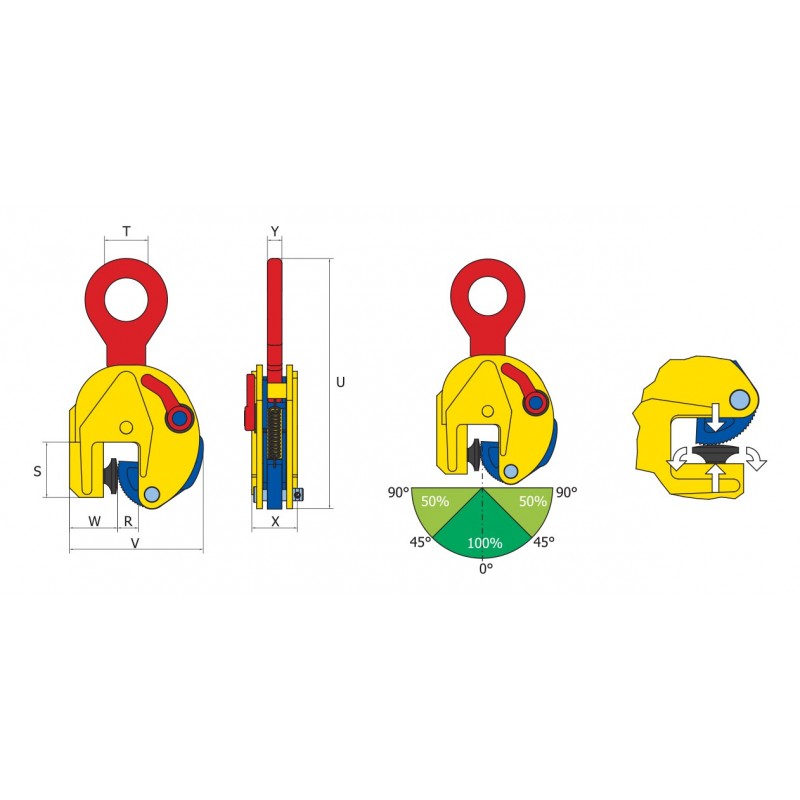

For vertical lifting and moving of panels and plates. If the clamp is being loaded, the cams will pull out sideways and will
grip into the sides of the load. The TJP clamp is locked in closed as well as in open position. Lifting capacity and jaw opening are clearly engraved in the body. Clamp type TJPU is equipped with a moveable lifting shackle.
Price:
on demand
More info
For vertical lifting and moving of panels and plates.
- If the clamp is being loaded, the cams will pull out sideways and will grip into the sides of the load.
- The TJP clamp is locked in closed as well as in open position.
- Lifting capacity and jaw opening are clearly engraved in the body.
- Clamp type TJPU is equipped with a moveable lifting shackle.
Product combinations
| Model | Capacity WLL in kg | Jaw-opening, mm |
|---|---|---|
| 0,25TJPU | 250 | 0-13 |
| 0.25TJP | 250 | 0-13 |
| 1TJP | 1 000 | 0-20 |
