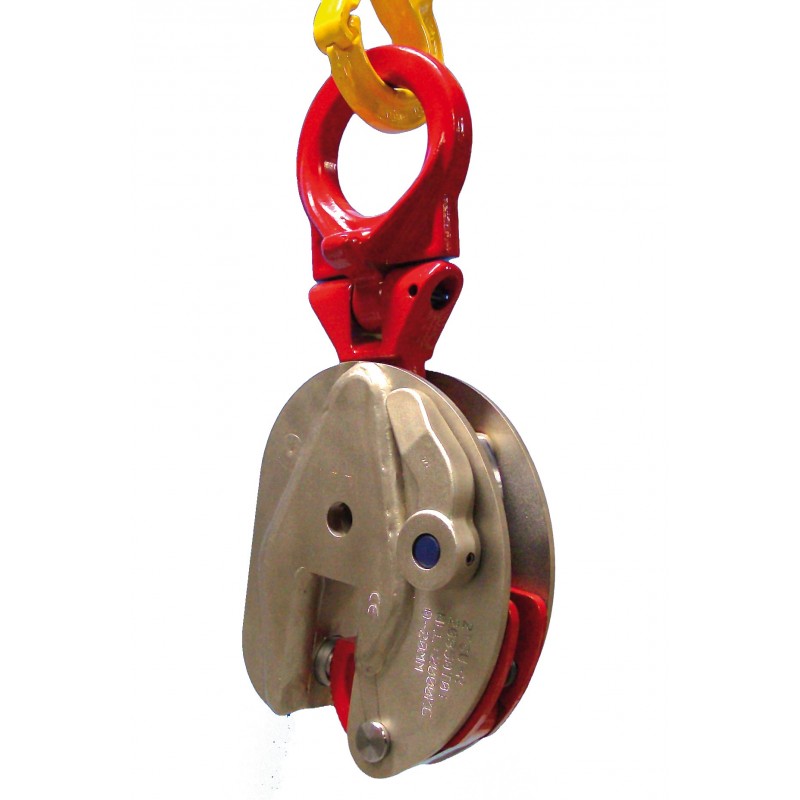

TS-R / TSE-R / TSU-R / TSEU-R vertical clamp TERRIER
For lifting and moving of stainless steel plates and structures a TSU-R lifting clamp is available. Pivot and cam are made of stainless steel. Body and lock lever are nickel plated to prevent corrosion due to carbon contamination.
Price:
on demand
More info
For lifting and moving of stainless steel plates and structures a TSU-R lifting clamp is available. Pivot and cam are made of stainless steel. Body and lock lever are nickel plated to prevent corrosion due to carbon contamination.
Product combinations
| Model | Capacity WLL in kg | Jaw-opening, mm | With moveable lifting shackle |
|---|---|---|---|
| 0.75 TS-R | 750 | 0-13 | |
| 0.75 TSU-R | 750 | 0-13 | Yes |
| 1 TSEU-R | 1 000 | 0-25 | Yes |
| 1 TSE-R | 1 000 | 0-25 | |
| 2 TSE-R | 2 000 | 0-35 | |
| 2 TSEU-R | 2 000 | 0-35 | Yes |
| 2 TSU-R | 2 000 | 0-20 | Yes |
| 3 TSEU-R | 3 000 | 0-35 | Yes |
| 3 TSE-R | 3 000 | 0-35 | |
| 4.5 TSEU-R | 4 500 | 0-45 | Yes |
| 4.5 TSE-R | 4 500 | 0-45 | |
| 6 TSE-R | 6 000 | 0-50 | |
| 6 TSEU-R | 6 000 | 0-50 | Yes |
| 7.5 TSE-R | 7 500 | 0-55 | |
| 7.5 TSEU-R | 7 500 | 0-55 | Yes |
