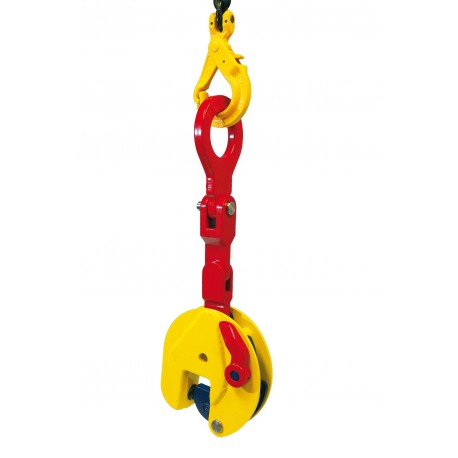

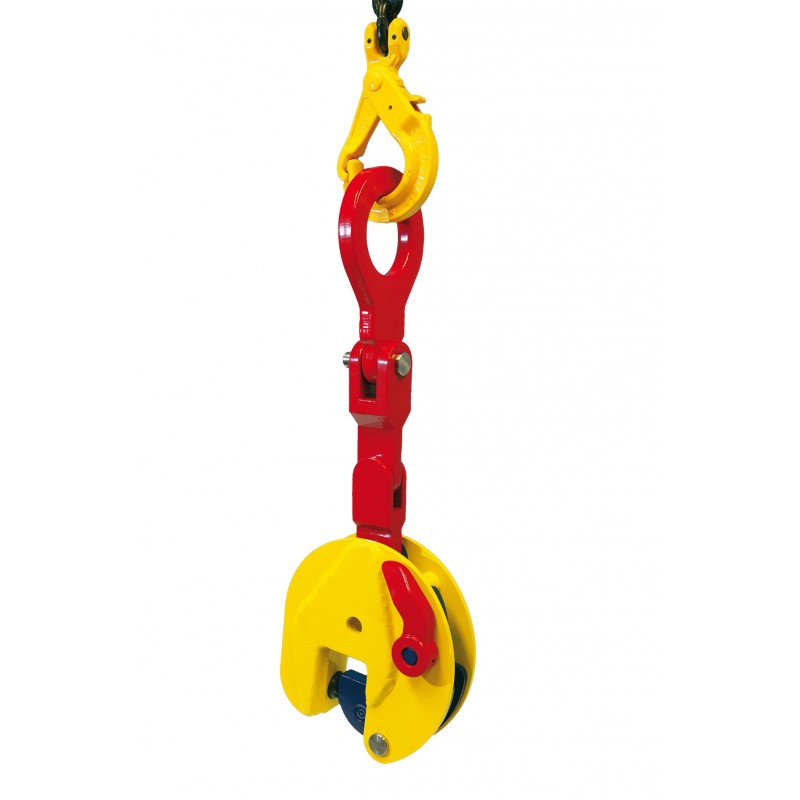

TSMP / TSEMP / STSMP vertical clamp TERRIER
The TSMP, STSMP lifting clamps are equipped with a three way multi-purpose lifting shackle.
The lifting shackle has a three way articulated linkage arrangement. For lifting and moving of all steel plates and structures.
When attached to a fixed load bearing arm (e.g. spreader bar) the clamp will retain its flexibility and no chain is needed.
Price:
on demand
More info
The TSMP, STSMP lifting clamps are equipped with a three way multi-purpose lifting shackle.
The lifting shackle has a three way articulated linkage arrangement. For lifting and moving of all steel plates and structures.
When attached to a fixed load bearing arm (e.g. spreader bar) the clamp will retain its flexibility and no chain is needed.

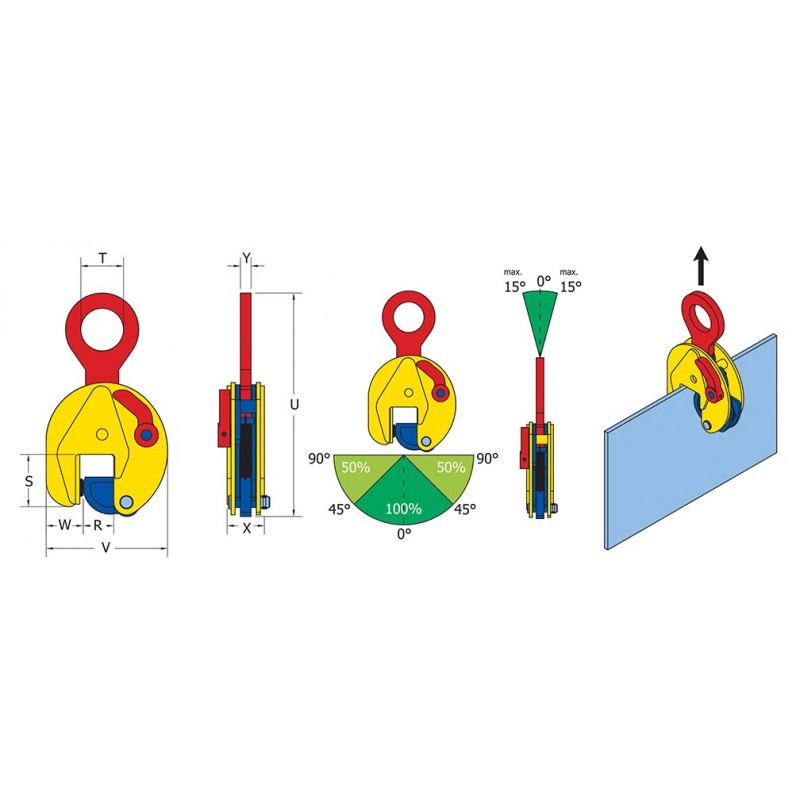

Due to the length of the three way linkage arrangement the clamp can be lowered further between standing plates or structures. Lifting capacity and jaw opening are clearly engraved in the body.
Type STSMP is supplied with an enlarged jaw opening.
Minimum W.L.L. is 10% of the maximum W.L.L.
Product combinations
| Model | Capacity WLL in kg | Jaw-opening, mm |
|---|---|---|
| 0.75TSMP | 750 | 0-13 |
| 1TSEMP | 1 000 | 0-25 |
| 2TSEMP | 2 000 | 0-35 |
| 3TSEMP | 3 000 | 0-35 |
| 4.5TSEMP | 4 500 | 0-45 |
| 6STSMP | 6 000 | 40-90 |
| 6TSEMP | 6 000 | 0-50 |
| 6TSMP | 6 000 | 0-32 |
| 7.5TSEMP | 7 500 | 0-55 |
| 7.5STSMP | 7 500 | 50-100 |
| 7.5TSMP | 7 500 | 0-40 |
| 9TSMP | 9 000 | 0-55 |
| 9STSMP | 9 000 | 50-100 |
