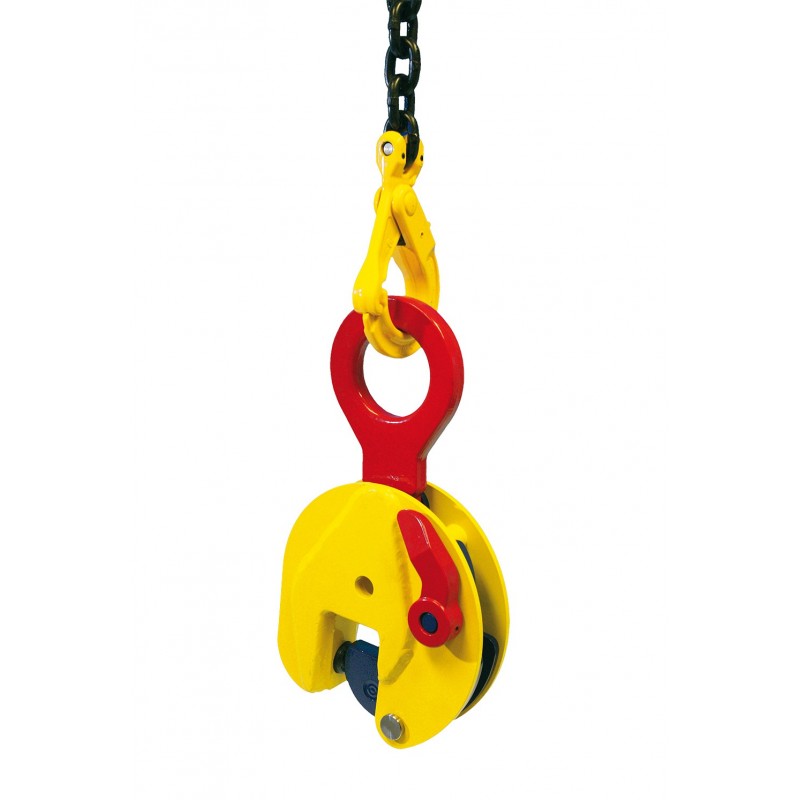

TS / TSE / STS vertickal clamp TERRIER
For vertical lifting and moving of steel plates and structures. The TS / STS lifting clamps are equipped with a safety
mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered. The clamp is locked in closed as well as in open position.
The STS types are supplied with enlarged jaw opening.
Minimum W.L.L. is 10% of the maximum W.L.L.
Price:
on demand
More info
For vertical lifting and moving of steel plates and structures. The TS / STS lifting clamps are equipped with a safety
mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered. The clamp is locked in closed as well as in open position.
The STS types are supplied with enlarged jaw opening.
Minimum W.L.L. is 10% of the maximum W.L.L.
Product combinations
| Model | Capacity WLL in kg | Jaw-opening, mm |
|---|---|---|
| 0,75TS | 750 | 0-13 |
| 1TSE | 1 000 | 0-25 |
| 2TSE | 2 000 | 0-35 |
| 3TSE | 3 000 | 0-35 |
| 4.5TSE | 4 500 | 0-45 |
| 4.5TS | 4 500 | 0-25 |
| 6TS | 6 000 | 0-32 |
| 6STS | 6 000 | 40-90 |
| 6TSE | 6 000 | 0-50 |
| 7.5TSE | 7 500 | 0-55 |
| 7.5STS | 7 500 | 50-100 |
| 7.5TS | 7 500 | 0-40 |
| 9TS | 9 000 | 0-55 |
| 9STS | 9 000 | 50-100 |
| 12TS | 12 000 | 0-52 |
| 12STS | 12 000 | 50-100 |
| 15TS | 15 000 | 0-76 |
| 15STS | 15 000 | 80-150 |
| 17TS | 17 000 | 0-76 |
| 20STS | 20 000 | 80-150 |
| 20TS | 20 000 | 0-80 |
| 25TS | 25 000 | 5-85 |
| 25STS | 25 000 | 80-150 |
| 30TS | 30 000 | 10-90 |
| 30STS | 30 000 | 80-150 |
