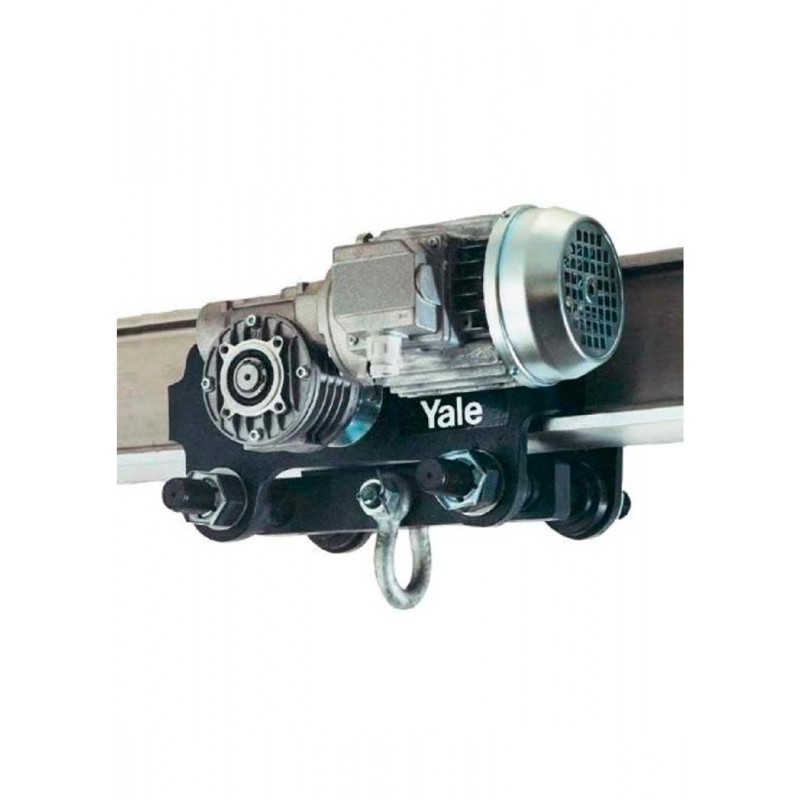

YALE VTE / VTEF-U Electric trolley
Capacity 1.000 - 5.000 kg
Specially recommended for loads over 1000 kg, for transpor ting over long distances and/or when used frequently. Suitable for almost all hoists with suspension hook due to universal shackle connection. Travel motor with worm gear transmission ensures smooth start and self braking – a separate motor brake is not required.
More info
Specially recommended for loads over 1000 kg, for transpor ting over long distances and/or when used frequently. Suitable for almost all hoists with suspension hook due to universal shackle connection. Travel motor with worm gear transmission ensures smooth start and self braking – a separate motor brake is not required.
Features
- Standard operating volt age: Euro-volt age 400 V, 3-phase, 50 Hz. Single speed motors can be reconnected to 230 V.
- Motor protected to IP 55 against dust and water jets. Push-button pendant control, IP 65.
- Compact, robust frame with low overall height.
- Wheels manufactured from fracture-proof steel. Smooth running due to machined surfaces and ball bearing mounting. Cambered profile suitable for parallel and inclined beam profiles.
- Anti-drop and anti-tilt devices as standard.
- Easy adjusted to fit to a wide range of beam widths and profiles due to threaded spindles.
Options
- Low voltage control (42 V)
- Rubber buffers
- 230 V, 1-phase, 50 Hz
Product combinations
| Model | Capacity WLL in kg | Beam flange width mm | Travel speed m/ min |
|---|---|---|---|
| VTEF 1-A-18/4,5/U | 1 000 | 58 - 180 | 18 or 18/4,5 |
| VTE 1-A-18/U | 1 000 | 58 - 180 | 18 |
| VTE 1-B-18/U | 1 000 | 180 - 300 | 18 |
| VTEF 1-B-18/4,5/U | 1 000 | 180 - 300 | 18 or 18/4,5 |
| VTE 2-A-18/U | 2 000 | 58 - 180 | 18 |
| VTEF 2-A-18/18,5/U | 2 000 | 58 - 180 | 18 or 18/4,5 |
| VTE 2-B-18/U | 2 000 | 180 - 300 | 18 |
| VTEF 2-B-18/4,5/U | 2 000 | 180 - 300 | 18 or 18/4,5 |
| VTEF 3-B-11/2,8/U | 3 000 | 180 - 300 | 11 or 11/2,8 |
| VTE 3-A-11/U | 3 000 | 74 - 180 | 11 |
| VTEF 3-A-11/2,8/U | 3 000 | 58 - 180 | 11 or 11/2,8 |
| VTE 3-B-11/U | 3 000 | 180 - 300 | 11 |
| VTEF 5-B-11/2,8/U | 5 000 | 180 - 300 | 11 or 11/2,8 |
| VTE 5-A-11/U | 5 000 | 98 - 180 | 11 |
| VTEF 5-A-11/2,8/U | 5 000 | 58 - 180 | 11 or 11/2,8 |
| VTE 5-B-11/U | 5 000 | 180 - 300 | 11 |
