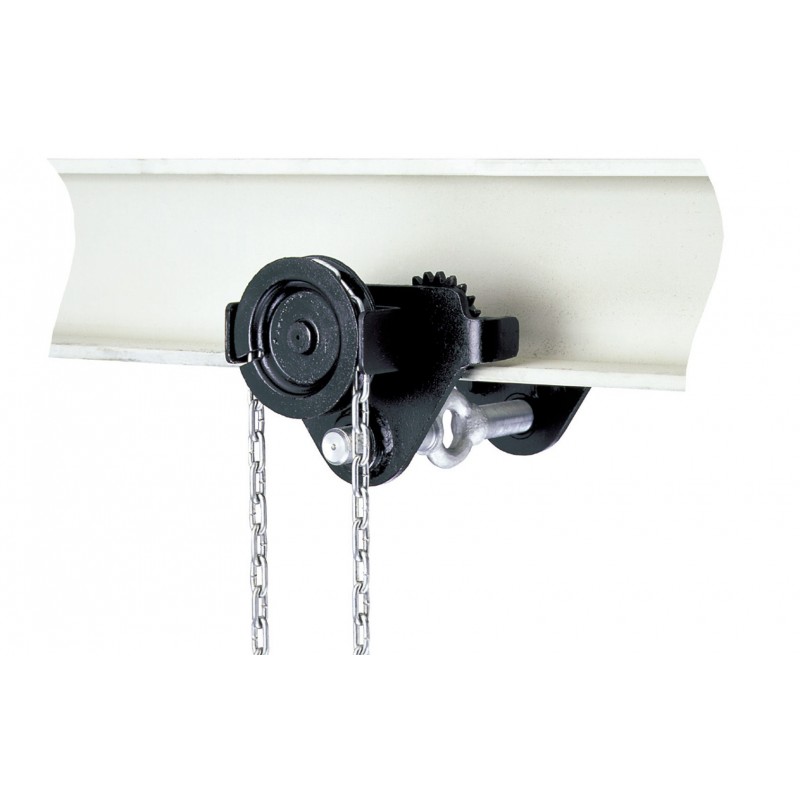

YALE HTG geared trolley
Capacity 500 - 20 000 kg
The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment. It has excellent rolling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings.
Price:
on demand
More info
The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.
Features
- It has excellent rolling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings.
- Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB).
- Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis – no creeping to the left or the right.
- The trolley wheels are designed for a max. beam profile incline of 14% (DIN 1025 - part 1).
- Trolleys are in accordance with the UVV and machinery directives.
Options
- Rotating hand chain guide.
- Stainless steel hand chains.
- Buffers
- Corrosion resistant version
- Explosion protection
- Locking device to secure the trolley in position on the beam (park position e.g. on ships).
Available in explosion proof version.
Product combinations
| Model | Capacity WLL in kg | Beam flange width mm |
|---|---|---|
| HTGB 500 | 500 | 160 - 300 |
| HTG 500 | 500 | 50 - 220 |
| HTGB 1000 | 1 000 | 160 - 300 |
| HTG 1000 | 1 000 | 50 - 220 |
| HTG 2000 | 2 000 | 66 - 220 |
| HTGB2000 | 2 000 | 160 - 300 |
| HTG 3000 | 3 000 | 74 - 220 |
| HTGB 3000 | 3 000 | 160 - 300 |
| HTG 5000 | 5 000 | 90 - 220 |
| HTGB 5000 | 5 000 | 180 - 300 |
| HTGB 8000 | 8 000 | 125 - 310 |
| HTGB 10000 | 10 000 | 125 - 310 |
| HTGB 15000 | 15 000 | 125 - 310 |
| HTGB 20000 | 20 000 | 125 - 310 |
