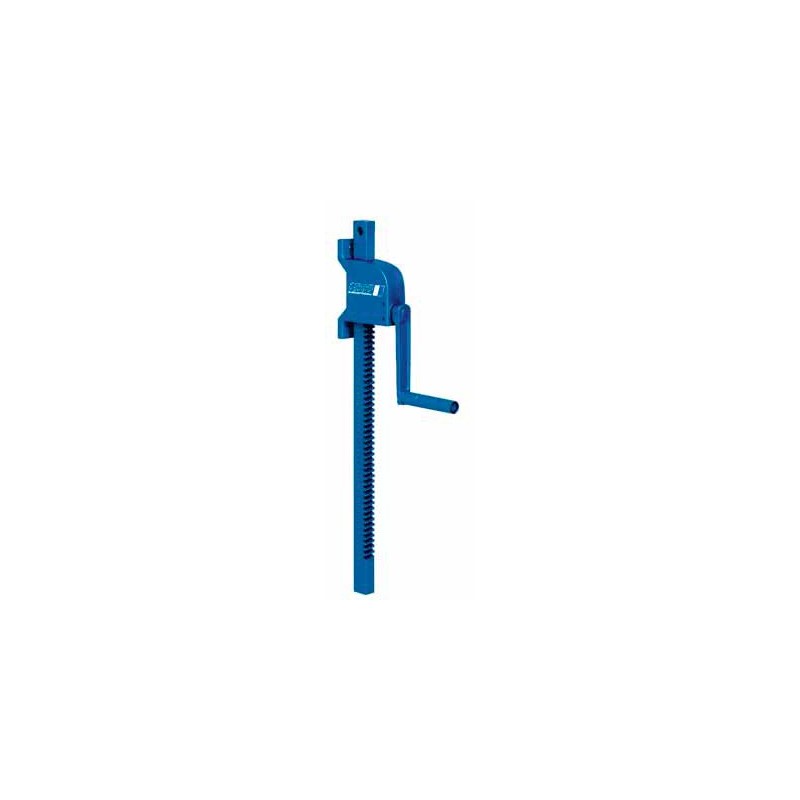

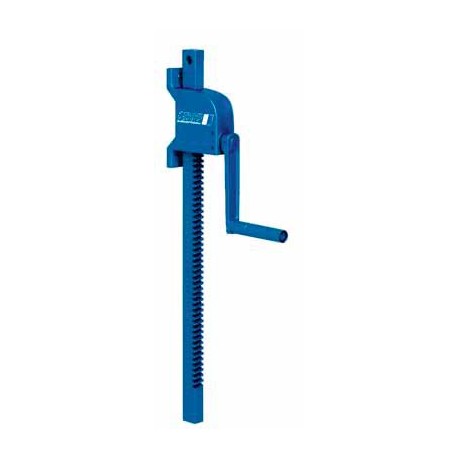

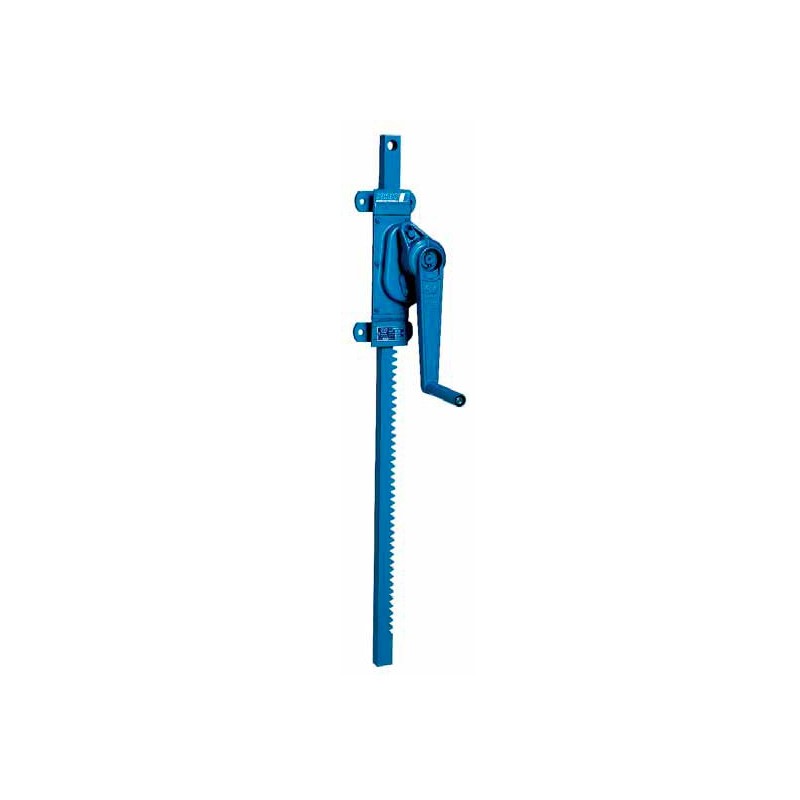

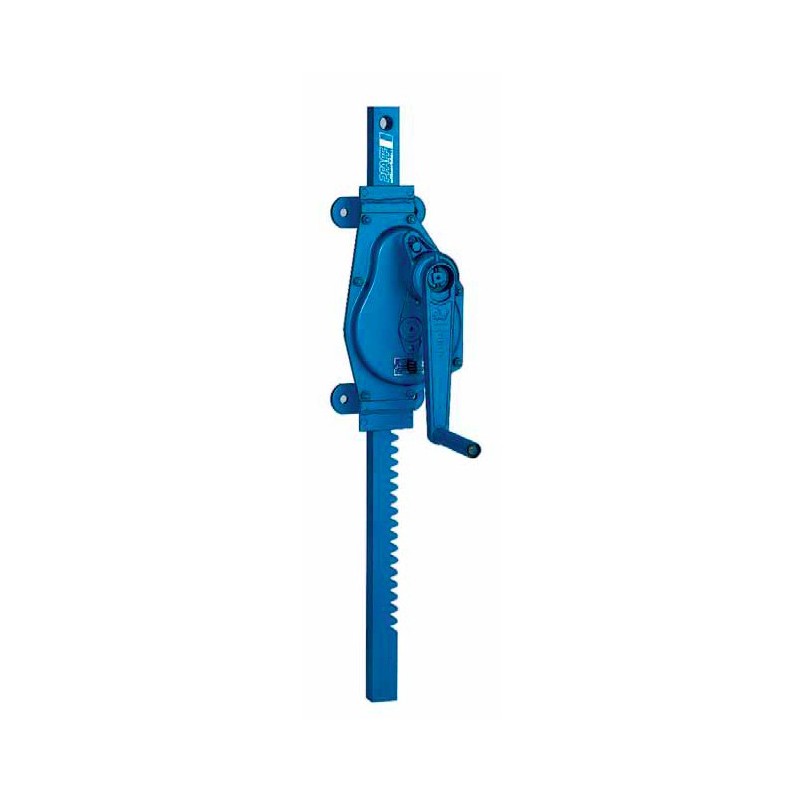

PFAFF ZWW / ZWW-L Wall-mounted rack and pinion jacks
Capacity 250 - 10 000 kg
Wall-mounted rack and pinion jacks are used for lifting, lowering, pulling and pushing of loads.
Price:
on demand
More info
Wall-mounted rack and pinion jacks are used for lifting, lowering, pulling and pushing of loads.
Features
- Robust steel design with precisely machined worm and spur gears for smooth and easy manual operation.
- Solid steel rack with additional bore hole for fastening of the load.
- Low wear owing to hardened gearing parts and precisely machined teeth.
- Suitable for a lifting load of up to 5000 kg for pushing and pulling loads.
- Rigid wall mounting.
Options
- Rack extensions
- Special fastening arrangements for shaft and rack
- Improved corrosion protection owing to zinc-plating
- With folding handle
Product combinations
| Model | Capacity WLL in kg | Lift, mm |
|---|---|---|
| ZWW-L 250/400 | 250 | 400 |
| ZWW-L 250/600 | 250 | 600 |
| ZWW-L 250/800 | 250 | 800 |
| ZWW-L 250/1000 | 250 | 1 000 |
| ZWW-L 250/1200 | 250 | 1 200 |
| ZWW-L 500/600 | 500 | 600 |
| ZWW-L 500/800 | 500 | 800 |
| ZWW-L 500/1000 | 500 | 1 000 |
| ZWW-L 500/1200 | 500 | 1 200 |
| ZWW-L 500/400 | 500 | 400 |
| ZWW-L 1000/1000 | 1 000 | 1 000 |
| ZWW-L 1000/1200 | 1 000 | 1 200 |
| ZWW-L 1000/1400 | 1 000 | 1 400 |
| ZWW-L 1000/600 | 1 000 | 600 |
| ZWW-L 1000/800 | 1 000 | 800 |
| ZWW-1500/800 | 1 500 | 800 |
| ZWW-3000/565 | 3 000 | 565 |
| ZWW-5000/700 | 5 000 | 700 |
| ZWW-10000/700 | 10 000 | 700 |
