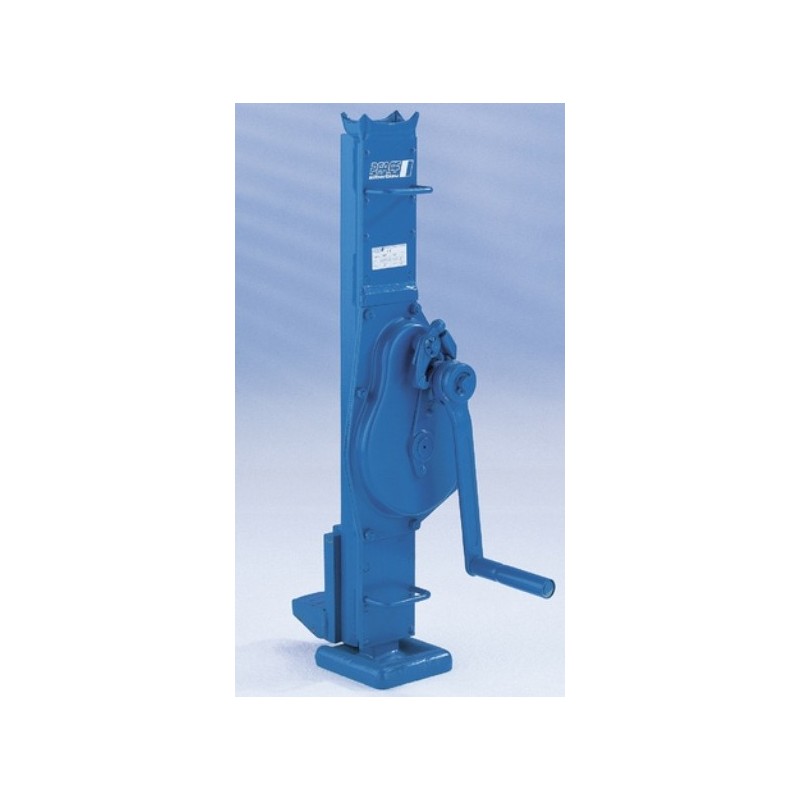

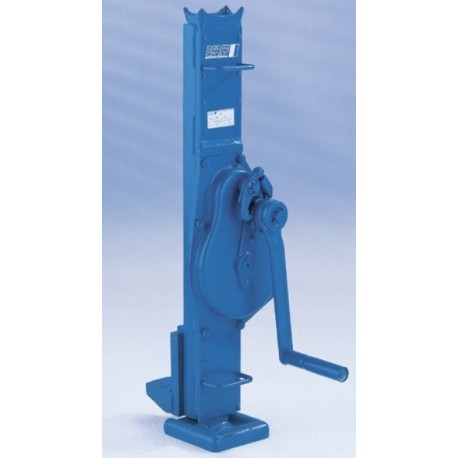

PFAFF STW-V Steel jacks acc. to DIN 7355
Capacity 3000 - 10 000 kg
Steel jacks are traditional hoisting equipment for universal application in the forest and agricultural sector, in the industrial sector for assembly activities and many other fields of application.
Price:
on demand
More info
Steel jacks are traditional hoisting equipment for universal application in the forest and agricultural sector, in the industrial sector for assembly activities and many other fields of application.
Features
- The robust steel design and a toothed rack of solid material increase the service life of the jack.
- Low wear owing to hardened gearing parts and precisely machined teething.
- The precisely machined gears with a high degree of efficiency guarantees low crank forces.
- The load is supported either on the claw or the head of the steel jack.
- Robust base plate for a high level of stability.
Option
- Different crank versions
Product combinations
| Model | Capacity WLL in kg | Type |
|---|---|---|
| STW-V 15 - SK | 1 500 | Siku |
| STW-V 15 - RK | 1 500 | Raku |
| STW-V 15 - SF | 1 500 | Sifeku |
| STW-V 30 - SK | 3 000 | Siku |
| STW-V 30 - SF | 3 000 | Sifeku |
| STW-V 30 - RK | 3 000 | Raku |
| STW-V 50 - SF | 5 000 | Sifeku |
| STW-V 50 - RK | 5 000 | Raku |
| STW-V 50 - SK | 5 000 | Siku |
| STW-V 100 - RK | 10 000 | Raku |
| STW-V 100 - SK | 10 000 | Siku |
