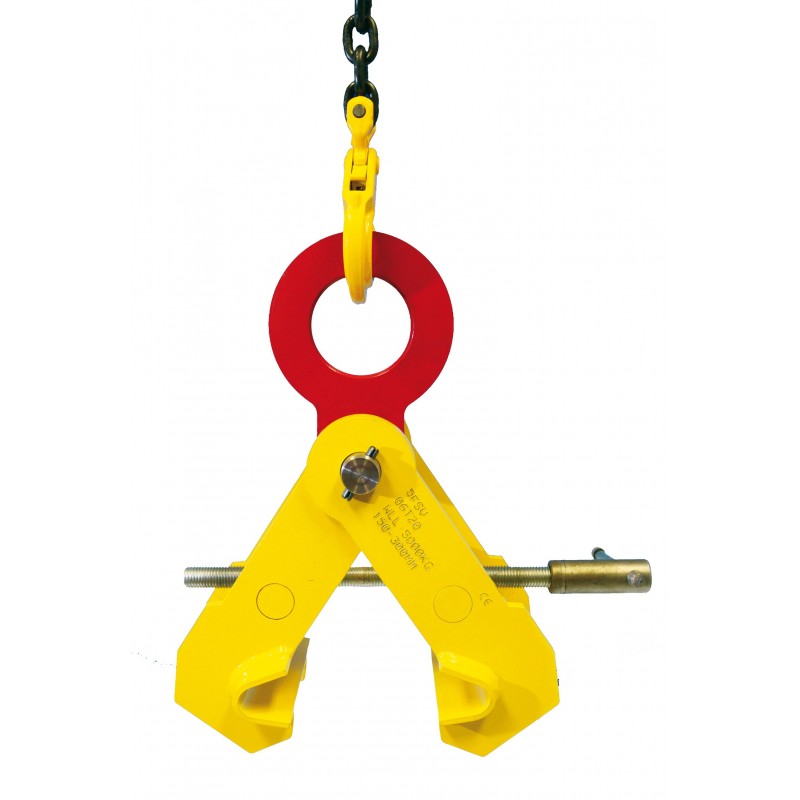

FSV / FSVS / FSVSU Screw clamps TERRIER
Only suitable for lifting and moving of steel beams and structures. The clamping force is evenly transferred to the jaws by means of a spindle. Can also be attached upside down and be used as a (temporary) lifting point. Has equal opening and closing of both jaws for simple and quick assembly. Lifting capacity and jaw opening are clearly engraved in the body.
Price:
on demand
More info
Only suitable for lifting and moving of steel beams and structures.
- The clamping force is evenly transferred to the jaws by means of a spindle.

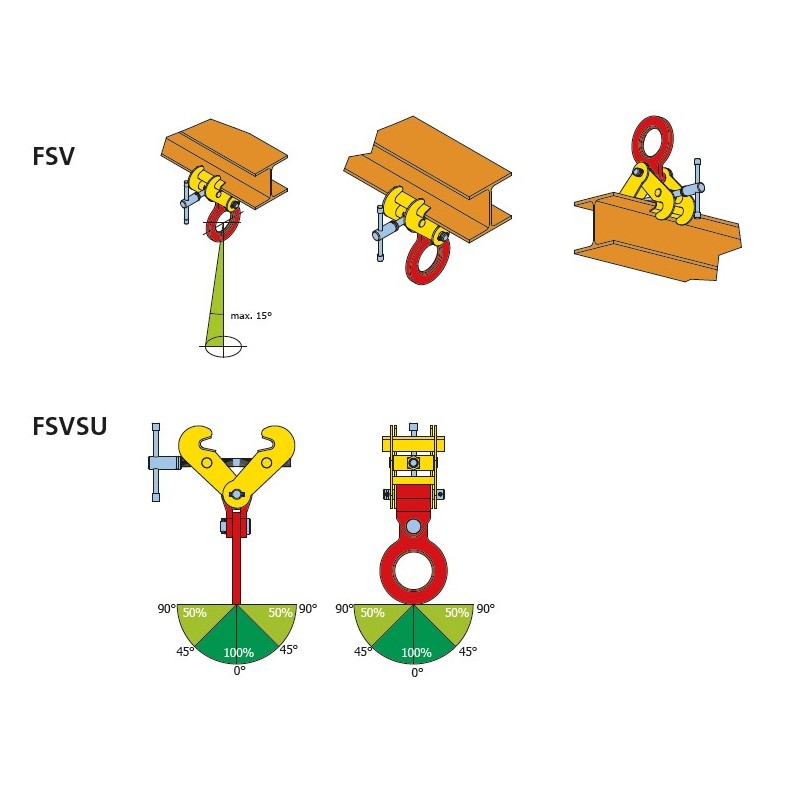

- Can also be attached upside down and be used as a (temporary) lifting point.
- Has equal opening and closing of both jaws for simple and quick assembly.
- Lifting capacity and jaw opening are clearly engraved in the body.
Product combinations
| Model | Capacity WLL in kg | Jaw-opening, mm | With moveable lifting shackle |
|---|---|---|---|
| 1FSV | 1 000 | 75-190 | |
| 2FSVS | 2 000 | 75-420 | |
| 2FSV | 2 000 | 75-190 | |
| 3FSV | 3 000 | 75-190 | |
| 3 FSVS | 3 000 | 75-420 | |
| 3 FSVSU | 3 000 | 75-420 | Yes |
| 4FSV | 4 000 | 150-300 | |
| 4 FSVSU | 4 000 | 150-560 | Yes |
| 4 FSVS | 4 000 | 150-560 | |
| 5 FSVS | 5 000 | 150-560 | |
| 5FSV | 5 000 | 150-300 | |
| 5 FSVSU | 5 000 | 150-560 | Yes |
| 10FSV | 10 000 | 350-450 |
