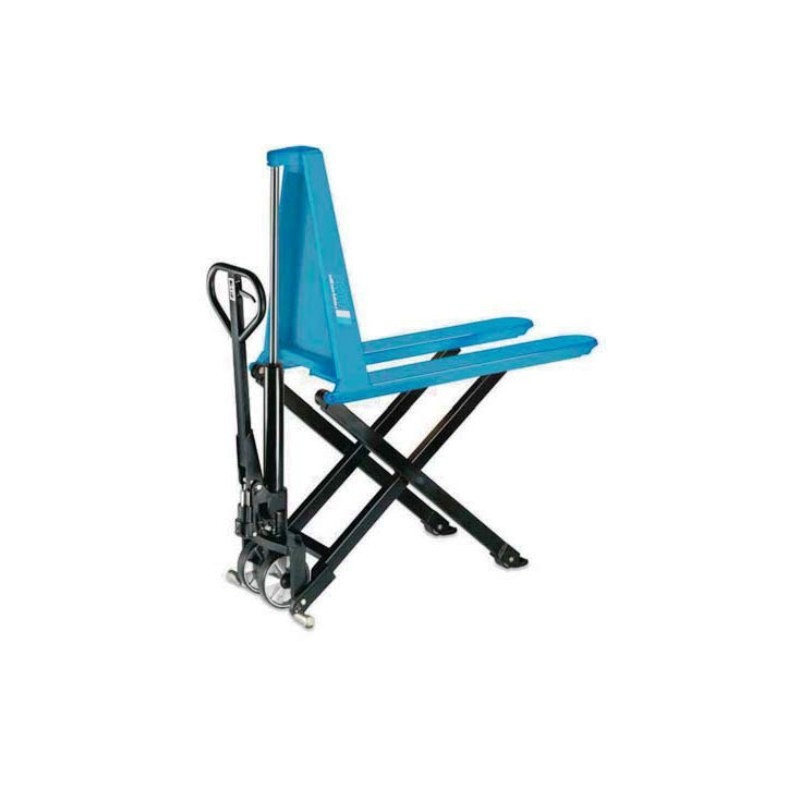

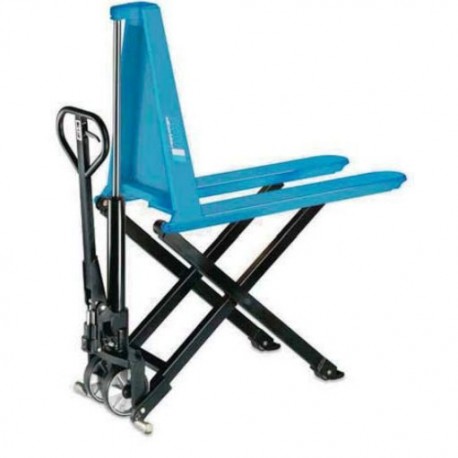

HU HS 10A Scissor pallet truck with manual-hydraulic lift PFAFF silberblau
Capacity 1 000 kg, fork height max. 800 mm
A combination of hand pallet truck and elevating platform for the transport and raising of palletised loads to various departments.
Price:
on demand
More info
A combination of hand pallet truck and elevating platform for the transport and raising of palletised loads to various departments.
Features
- Safety control handle with the functions: – Quick-lift – lifting – lowering –
- Lowering speed can be finely metered for sensitive lowering of the load.
- One-stage hydraulic for increased robustness.
- Quick-lift for loads up to 250 kg.
- Overload protection by pressure relief valve.
- Safety supports guarantee sure standing when the forks are raised.
- Low noise and smooth running with standard tyres: steer rollers and load rollers – polyurethane.
Product combinations
| Model | Capacity WLL in kg | Scroll wheel, mm | Supporting wheels, mm | Fork width, mm | Fork length, mm | Overall width Fork, mm |
|---|---|---|---|---|---|---|
| HU HS 10A | 1 000 | 180x50 | 78x60 | 160 | 1 150 | 540 |
