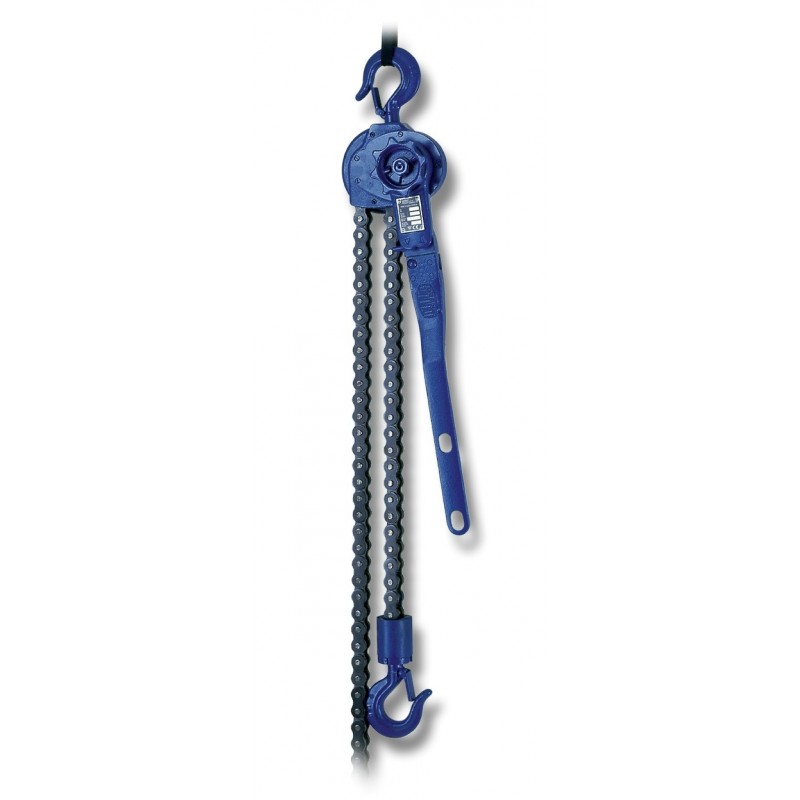

BRANO RZV Ratchet jack
Capacity 800 - 6 300 kg
A wide range of use particularly in construction and mining and anywhere loads must be manipulated.
Price:
on demand
More info
A wide range of use particularly in construction and mining and anywhere loads must be manipulated.
- for lifting and towing loads
- for tensioning fences, extricating work, pulling out posts in mines
- as a lifting device for suspended mine tracks
- for installation and manipulation work of various types
- suitable for heavy duty use – in mines, smelting works etc.
- can also be used in environments with a risk of explosion (NEXP symbol)
Properties:
- simple, robust construction, portable
- withstands rough use
- equipped with a safety device against overloading
- simple operation
The jack is manufactured as standard with a basic lift height of 1.5m. A selection of lift heights from 1.5m to 6 m are available.
Product combinations
| Model | Capacity WLL in kg | Number of chain falls |
|---|---|---|
| RZV0,8 | 800 | 1 |
| RZV1,6 | 1 600 | 1 |
| RZV3,2 | 3 200 | 2 |
| RZV5,0 | 5 000 | 3 |
| RZV6,3 | 6 300 | 4 |
