PETZL ROLLCLIP Pulley carabiner
Pulley carabiner, available in versions with or without TRIACT-LOCK locking system. The version with the TRIACT-LOCK locking system can be used to minimize friction on the work rope or to install redirects. The non-locking version is designed for use as a directional point on the ASCENSION handled rope clamp during short rope ascents.
Price:
on demand
Data sheet
| Diameter of rope in mm | 7-13 |
| Material | aluminum |
| Strength major axis kN | 20 kN |
| Strength minor axis kN | 8 kN |
| Strength open gate kN | 7 kN |
| Working load max. | 4 kN |
| Diameter of sheaven in mm | 18 |
| Bearing | ball bearing |
| Efficiency | 85 % |
More info
- Facilitates manipulations:
- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
- gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
- may be used with a CAPTIV positioning bar to favor loading of the carabiner along its major axis and to limit the risk of it flipping
- sheave mounted on sealed ball bearings for excellent efficiency - Available with or without locking system:
- with TRIACT-LOCK locking system: may be used to minimize friction on the work rope while keeping set-ups simple. May also be used to install redirects.

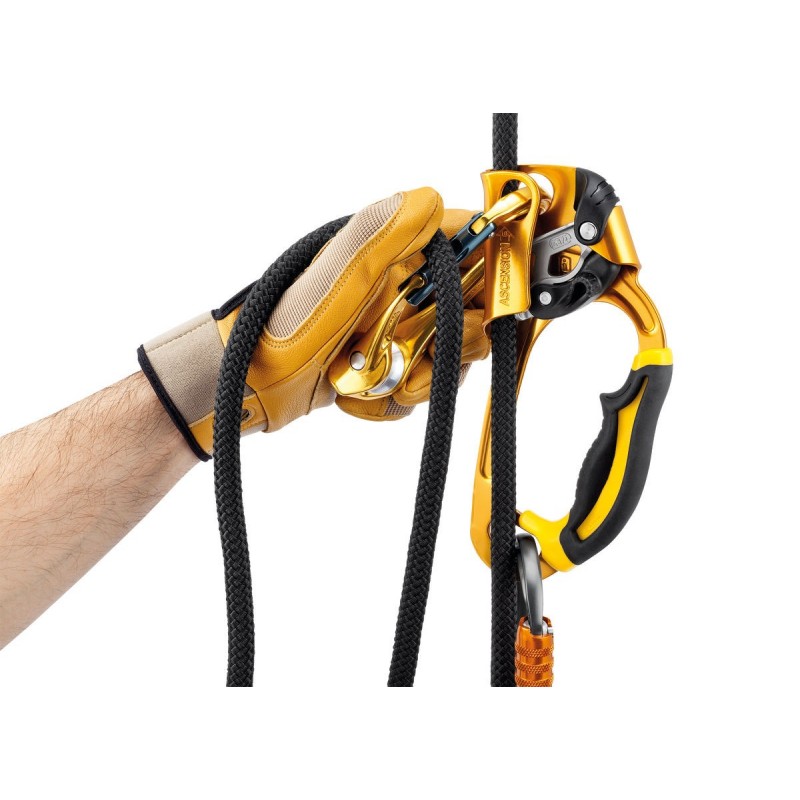

- without locking system: may be used as a directional point on the ASCENSION handled rope clamp during short rope ascents - H profile of carabiner:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion
Product combinations
| Model | Weight | Gate opening (g) | Locking system | Certification |
|---|---|---|---|---|
| P74 | 105 g | 25 mm | without locking system | CE EN 12275, CE EN 12278, EAC |

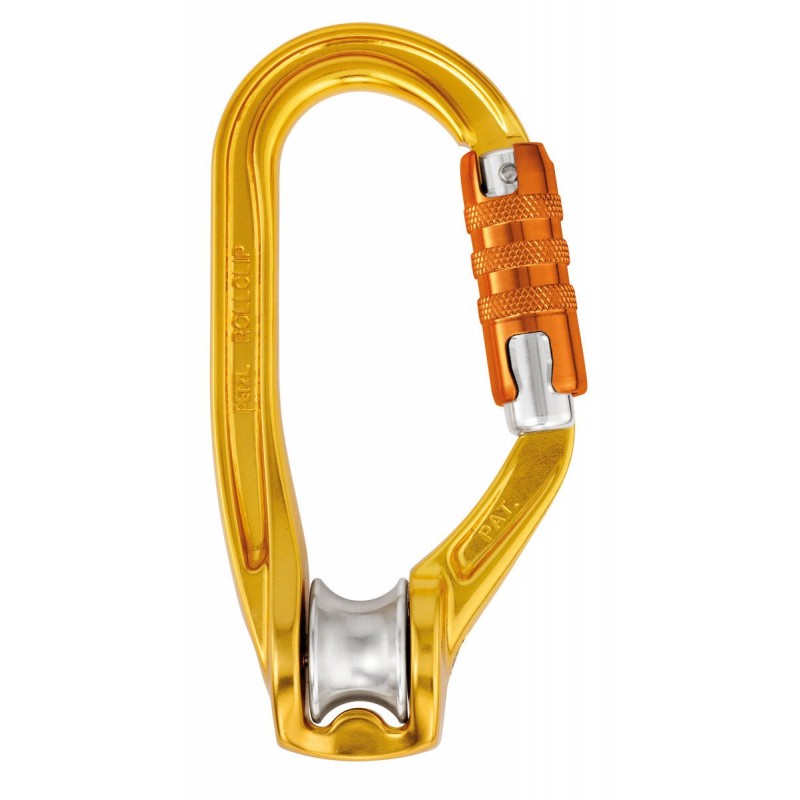

| P74 TL | 115 g | 22 mm | TRIACT-LOCK | CE EN 362, CE EN 12278, EAC |
