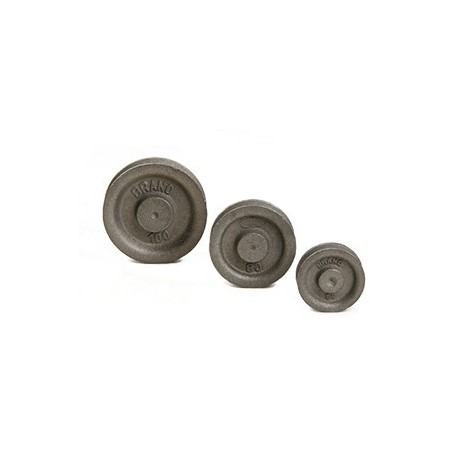

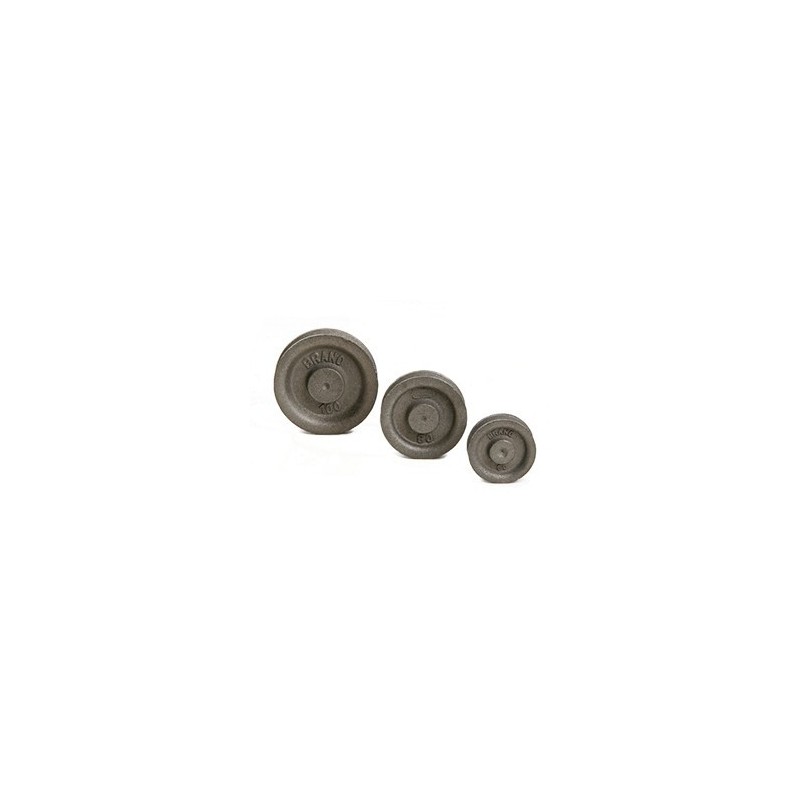

BRANO Cast pulley
Liata kladka
Semi-finished product for manufacturing of pulleys
Price:
on demand
More info
Semi-finished product for manufacturing of pulleys
Detail description:
It is semi-finished product for manufacturing of pulleys for various types of use.
For example fitness equipment, suspension devices, as a support for movement and change of direction of a cable and many other aplications. Casting has a dimple for drilling of the central hole. The central hole for rotation of the pulley is adjusted according to the customer´s request
| Size – Ø pulley (mm) | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 |
|---|---|---|---|---|---|---|---|---|---|
|
Dimension A (mm) |
30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 |
|
Dimension B (mm) |
20 | 30 | 36 | 45 | 55 | 61 | 71 | 81 | 98 |
|
Dimension C (mm) |
11 | 12 | 17 | 18 | 19 | 23 | 24 | 26 | 28 |
|
Dimension D (mm) |
11 | 12 | 16 | 16 | 16 | 20 | 20 | 22 | 26 |
|
Dimension E (mm) |
13 | 15 | 15 | 26 | 25 | 28 | 30 | 35 | 35 |
|
Dimension R (mm) |
2,5 | 3 | 4 | 4 | 4 | 5 | 5 | 6 | 8 |
|
Weight (kg) |
0,05 | 0,07 | 0,1 | 0,17 | 0,23 | 0,34 | 0,5 | 0,7 | 0,85 |
