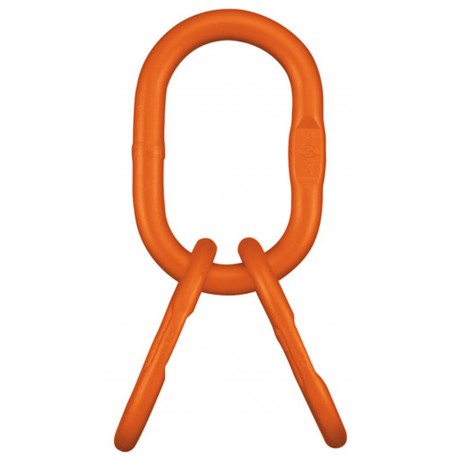

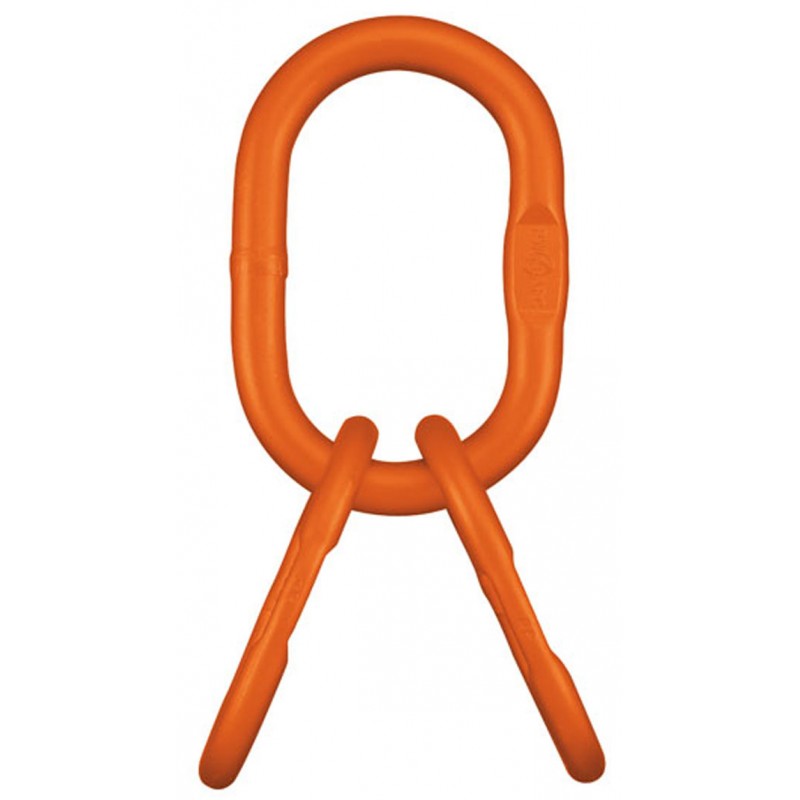

PEWAG VAW Special 4-leg master link assemblies
VAW Special master link assemblies - According to EN 1677-4 with increased load capacity, for pewag connex and welded system.
Price:
on demand
More info
VAW Special master link assemblies:
- According to EN 1677-4 with increased load capacity
- For pewag connex and welded system
- For assembling 3- and 4-leg chains with connex links CW, when shortening hooks are to be assembled separately, and for slings with thimbled eyes.
- For use in rope slings please consider that load capacity is listed according to EN 1677-4 with safety factor 4.
- For assembling of welded slings with BW by pewag.
Product combinations
| Model | Capacity WLL 0° - 45° (kg) |
|---|---|
| VAW 6/7 | 5 000 |
| VAW 8 | 6 300 |
| VAW 10 | 9 500 |
| VAW 13 | 16 100 |
| VAW 16 | 25 100 |
| VAW 19/20 | 41 100 |
| VAW 22 | 47 400 |
| VAW 26 | 58 000 |
| VAW 32 | 85 000 |
