PEWAG MWP Enlarged master links
It is used to create I- and II-leg chain slings using the Connex CWP connecting link and opens up universal connection possibilities thanks to the flattened section incorporated in its design.
on demand
More info
This master links corresponds to EN 1677-4 with a load capacity according to G12. It is used to create I- and II-leg chain slings using the Connex CWP connecting link and opens up universal connection possibilities thanks to the flattened section incorporated in its design. It may also be used as an end link in single- or multiple-leg chain slings.

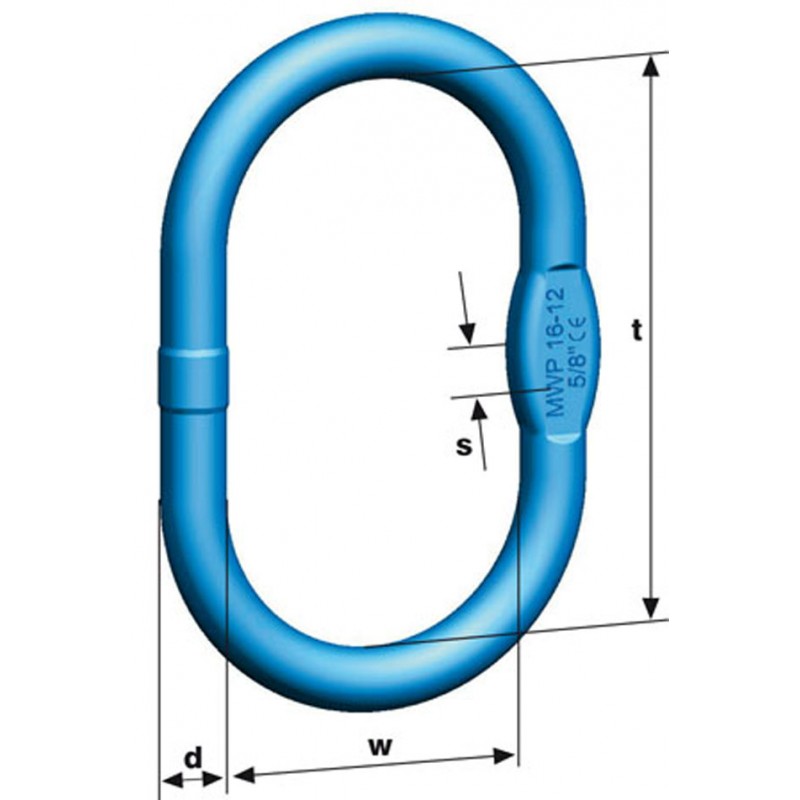

With its extra-large inner width compared to the AWP master link, it is also suitable for larger single hooks according to DIN 15401. Refer to the table for the correct chain dimensions and single hook size.
This enlarged master link is manufactured according to EN 1677-4 with the mechanical values of G12 and comes with BG-approval. The surface of the master link has a light blue powder coating.
Product combinations
| Model | Capacity WLL in kg | Diameter |
|---|---|---|
| MWP 13 | 2 360 | 14 mm |
| MWP 16 | 3 200 | 17 mm |
| MWP 18 | 5 000 | 19 mm |
| MWP 26 | 10 100 | 27 mm |
| MWP 36 | 17 500 | 38 mm |
