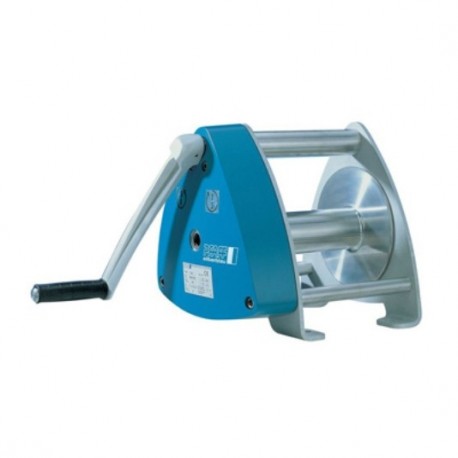

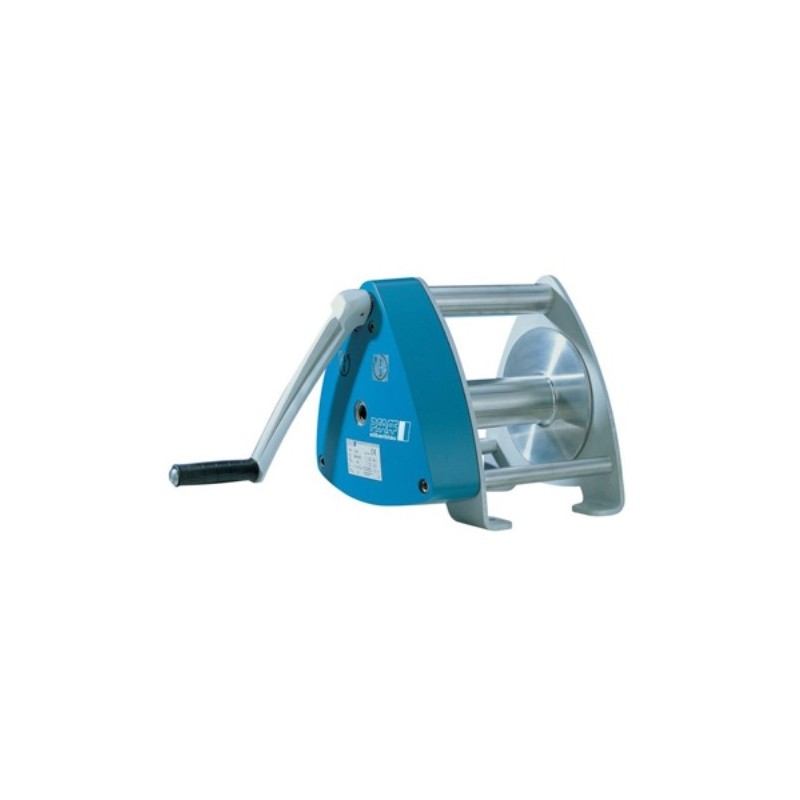

PFAFF SW-K GAMMA Console-mounted aluminium rope winch
Capacity 200 - 800 kg
Due to its rugged design, the aluminium rope winch is suitable for operation outdoors.
Price:
on demand
More info
Due to its rugged design, the aluminium rope winch is suitable for operation outdoors.
Features
- Compact aluminium housing and enclosed sprocket wheel drive. From a capacity of 500 kg with speed increasing ratio for small loads and quicker winding and unwinding of the unloaded rope.
- Spur gear drive for optimal efficiency and comfortable handling.
- Enclosed gear for the protection of parts inside, also for arduous applications.
- Low-friction shaft sliding bearings for improved rope lead-off and a longer service life of the winch.
- Wide rope drum for a large rope capacity with two rope attachment points.
- Easy and quick mounting.
- With integrated safety spring brake system and removable crank. The winches can be operated from either side.
Options
- Increased corrosion protection owing to additional paint finish.
- Drum separation web for double rope operation
Product combinations
| Model | Capacity 1. layer in kg | Capacity top layer in kg |
|---|---|---|
| GAMMA 200 | 200 | 110 |
| GAMMA 500 | 500 | 200 |
| GAMMA 800 | 800 | 350 |
