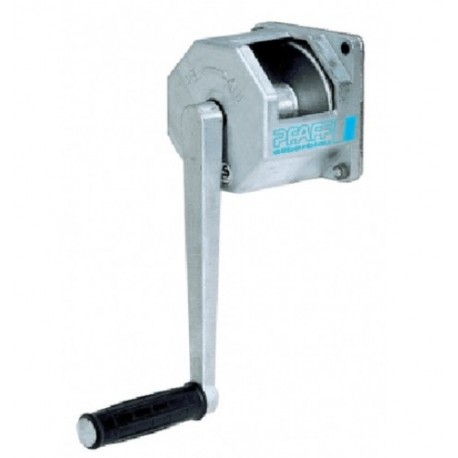

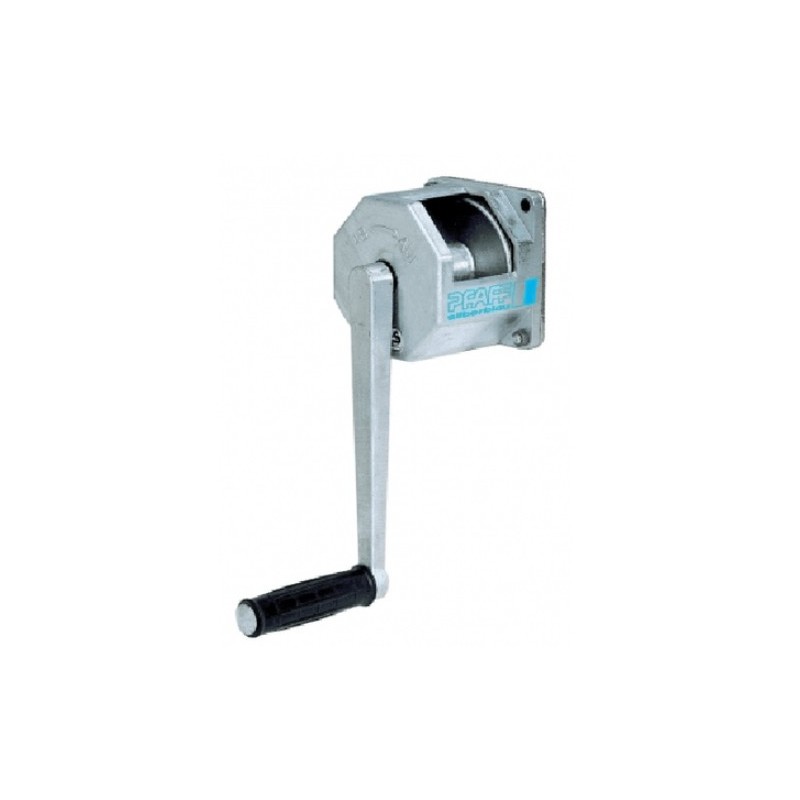

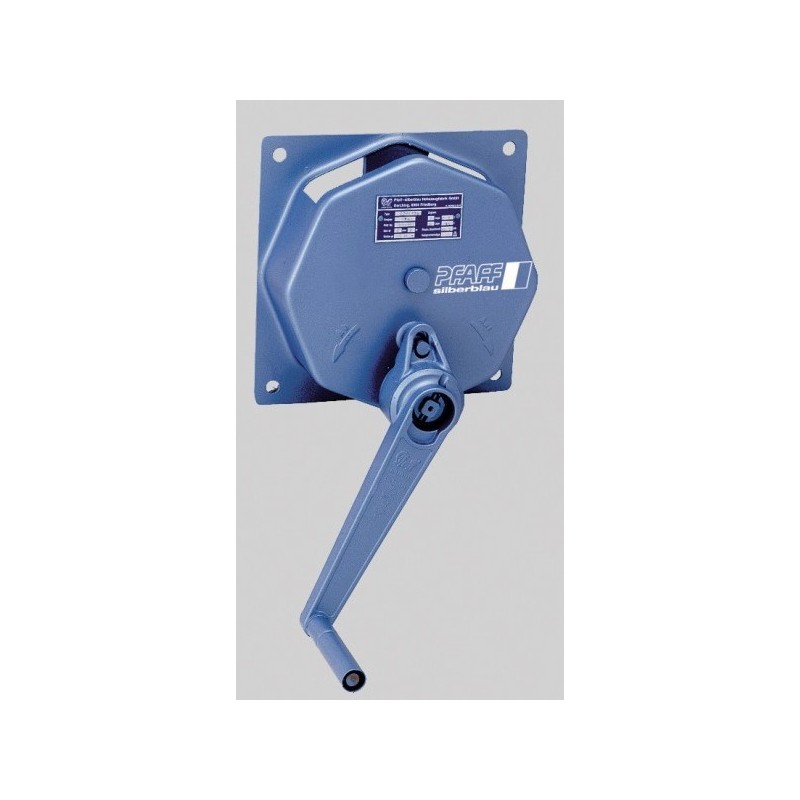

PFAFF SW-W Wall-mounted winch
Capacity 80 - 750 kg
Wall-mounted rope winches of the SW-W model range are intended for fixed stationary mounting inside a building. The steel wire rope is guided to the required suspension point of the load by means of deflection sheaves.
Price:
on demand
More info
Wall-mounted rope winches of the SW-W model range are intended for fixed stationary mounting inside a building. The steel wire rope is guided to the required suspension point of the load by means of deflection sheaves.
Features
- Robust aluminium housing for models SW-W 80 and SW-W 125, proven steel plate design for models SW-W 300 - 750.
- Spur gear drive for optimal efficiency and comfortable handling. Direct drive for loads up to 125 kg.
- The low-noise safety spring brake safely holds the load in every position.
- Removable hand crank for models SW-W 80 and SW-W 125, foldable crank for models SW-W 300 - 750.
- Easy and quick mounting onto walls.
Options
- Safety retaining spring with removable hand crank.
Product combinations
| Model | Capacity 1. layer in kg | Capacity top layer in kg |
|---|---|---|
| SW-W 80 | 80 | 45 |
| SW-W 125 | 125 | 65 |
| SW-W 300 | 300 | 220 |
| SW-W 500 | 500 | 350 |
| SW-W 750 | 750 | 550 |
