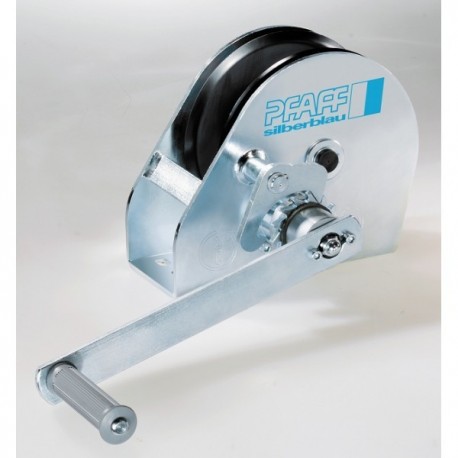

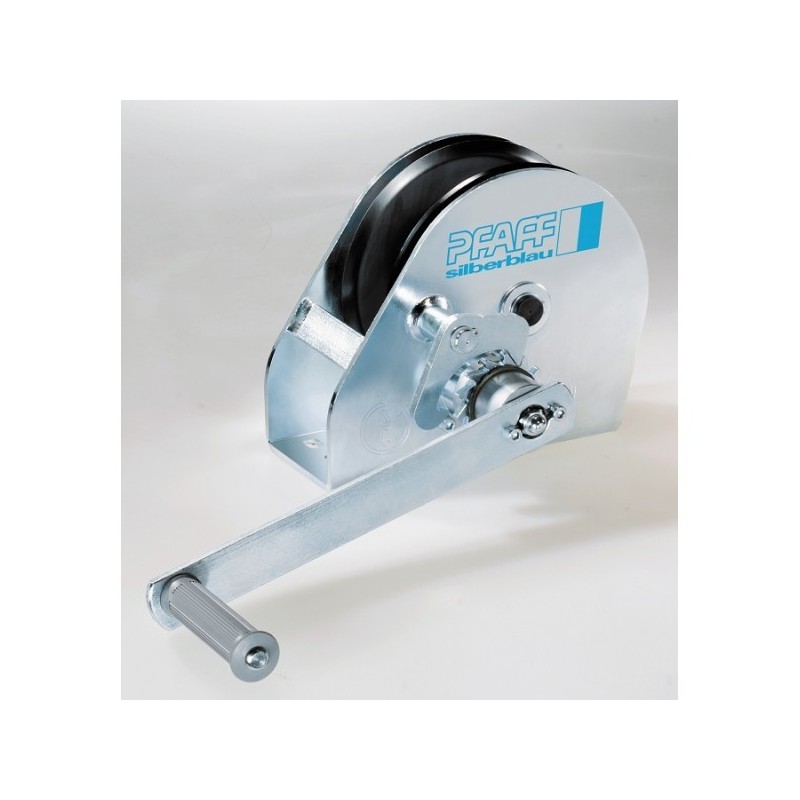

PFAFF LB Console-mounted winch
Capacity 150 - 1 200 kg
Originally developed as offroad winch the console-mounted winch model LB is used today for a variety of lifting and pulling applications.
Price:
on demand
More info
Originally developed as offroad winch the console-mounted winch model LB is used today for a variety of lifting and pulling applications.
Features
- Light weight robust stamped steel housing.
- Spur gear drive for optimal efficiency and comfortable handling.
- Automatic load pressure brake for save holding of the load in any position. An unintentional brake release is prevented.
- All parts are zinc-plated for increased corrosion protection, drum with additional special coating.
- Easy and quick mounting to consoles, even under lifting conditions.
Options
- Stainless steel version (mat. 1.4301) for increased corrosion protection.
- Free wheeling device for a quick manual unrolling of the unloaded rope
Product combinations
| Model | Capacity 1. layer in kg | Capacity top layer in kg | Rope diameter in mm | Useable rope length max. in m |
|---|---|---|---|---|
| LB 150 VZ | 150 | 75 | 4 | 11 |
| LB 250 VA | 250 | 125 | 4 | 19,5 |
| LB 350 ZV | 350 | 170 | 4 | 20 |
| LB 650 VZ | 650 | 290 | 6 | 20 |
| LB 650 VA | 650,0 | 290 | 6 | 20 |
| LB 900 VZ | 900 | 400 | 7 | 14 |
| LB 900 VA | 900 | 320 | 7 | 26 |
| LB 900 ARA | 900,0 | 400 | 7 | 14 |
| LB 1200 VZ | 1 200 | 430 | 7 | 26 |
| LB 1200 ARA | 1200 | 430 | 7 | 26 |
