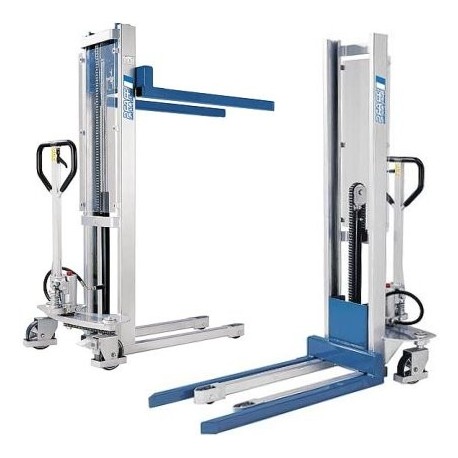

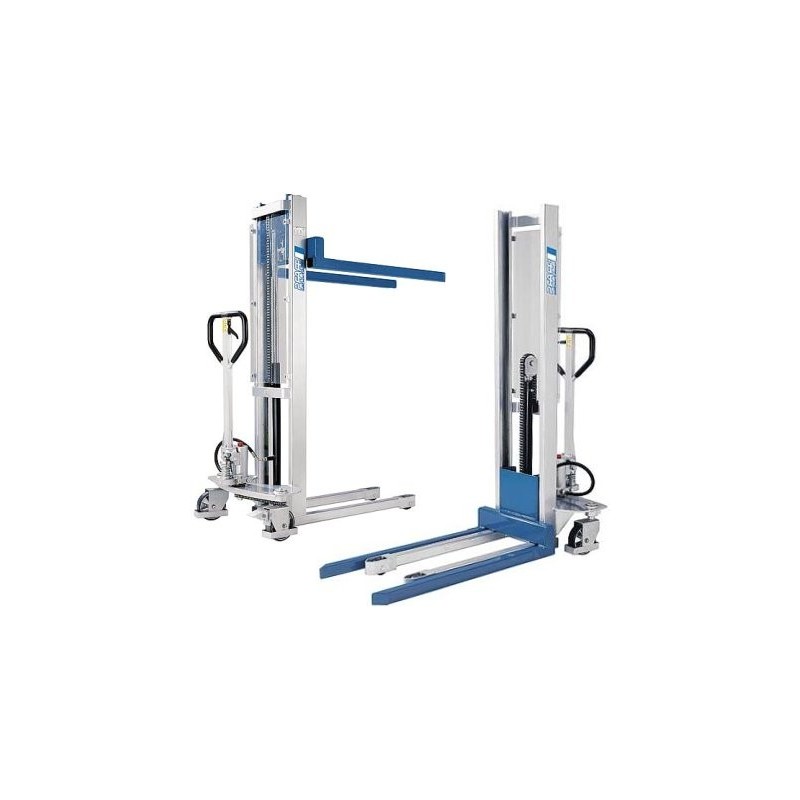

HV 1008 / HV 1016 Manual drive stacker PFAFF silberblau
Capacity 1 000 kg
Ideal for the occasional, internal application of stacking and transporting of palletised goods.
Price:
on demand
More info
Ideal for the occasional, internal application of stacking and transporting of palletised goods.
Features
- Ergonomic safety control handle for one-hand operation of lifting, driving and lowering.
- Easy handling due to forced steering rollers.
- Lowering speed can be finely metered for sensitive lowering of the load.
- Single-acting hand pump with increased lift per handle stroke.
- Quick-lift for loads up to 100 kg.
- Robust mast construction with hard chromium plated piston.
- Steering roller with brake for safe parking of the hand stacker.
Product combinations
| Model | Capacity WLL in kg | Scroll wheel, mm | Supporting wheels, mm | Fork width, mm | Fork length, mm | Overall width Fork, mm | Lifting height max. mm |
|---|---|---|---|---|---|---|---|
| HV 1008 | 1 000 | 180x50 | 80x55 | 60 | 1 122 | 570 | 900 |
| HV 1016 | 1 000 | 180x50 | 80x55 | 60 | 1 122 | 570 | 1 600 |
