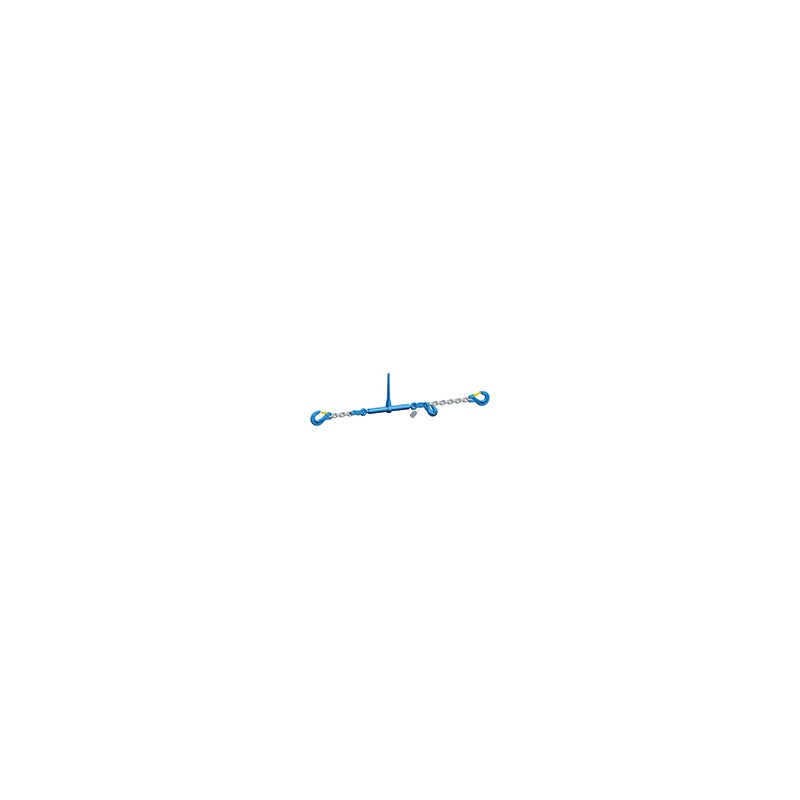

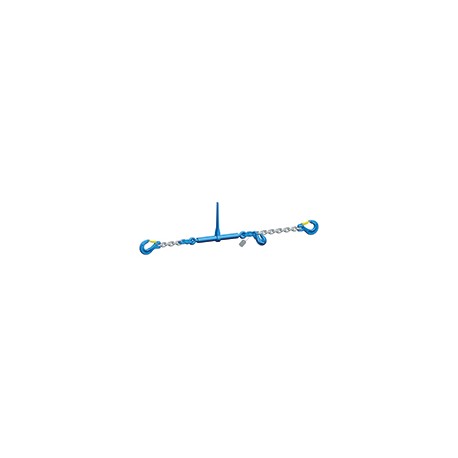

PEWAG ZRSWP/ KHSWP - KHSWP-PSWP Lashing chain
This lashing chain surpasses the requirements of EN 12195-3 as it has a 50 % higher lashing capacity than standard G8 lashing chains.
on demand
More info

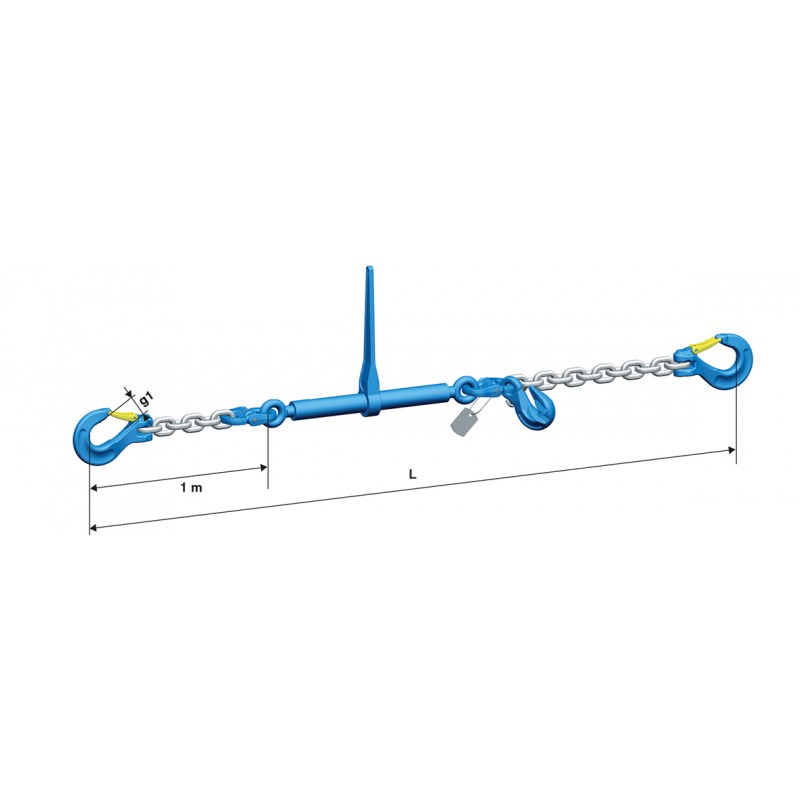

This lashing chain surpasses the requirements of EN 12195-3 as it has a 50 % higher lashing capacity than standard G8 lashing chains. The lashing chain comes in a modular design with a standard length of 3,500 mm and is also suitable for frictional lashing, provided that the STF value is taken into account. Other end fittings and/or combinations and delivery lengths are available upon request and with short delivery times.
Please note that the product must not be used for lifting or attaching loads. A full operating manual tells you all you need to know about how to use the chain to its best advantage. Make sure you also refer to the tables "Direct lashing" and "Frictional lashing" for a useful overview.
Product combinations
| Model | Lashing capacity, kN | Standard tension force STF, daN |
|---|---|---|
| ZRSWP 7200/KHSWP-KHSWP-PSWP 3500 | 47 | 1 900 |
| ZRSWP 8200/KHSWP-KHSWP-PSWP 3500 | 60 | 1 900 |
| ZRSWP10200/KHSWP-KHSWP-PSWP 3500 | 100 | 3 000 |
| ZRSWP13200/KHSWP-KHSWP-PSWP 3500 | 160 | 2 500 |
