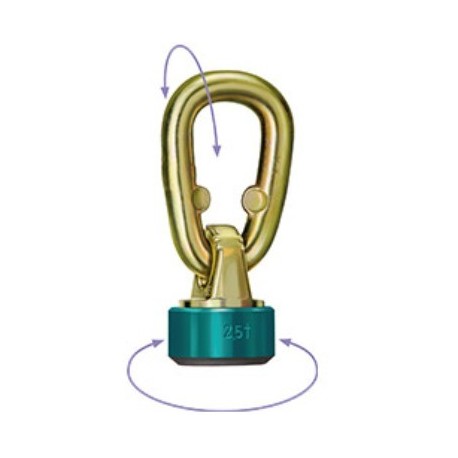

THEIPA Point - S The advanced generation of attachment swivels - JDT View larger

THEIPA Point - S The advanced generation of attachment swivels - JDT

Grade 10 ENORM 10 material allows for an increase in working load limit of 25% without increasing swivel size compared to TAWSK.

More details

Price:

on demand

More info

Grade 10 ENORM 10 material allows for an increase in working load limit of 25% without increasing swivel size compared to TAWSK.

  • Marks on the swivel give a clear indication of inclination angels.
  • Additional ball bearing system allows for smooth swiveling under load.
  • Crimpfeature on the link prevents the link from kinking.
  • Both internal and external surfaces are protected against corrosion by a tough galvanized coating.
  • Improved swivel to surface contact is due to special machining.
  • Ball bearing wear can be visually recognized by the gap on the wear ring without measuring instruments.
  • Secured four times against breakage in all load directions.
  • Marks on the swivel give a clear indication of inclination angles.
  • Additional ball bearing system allows for smooth swiveling under load.
  • With the new WLL you can measure disposal stage

Product combinations

Model Capacity WLL in kg
TP-S 2,5 2 500
TP-S 4 4 000
TP-S 6,7 6 700
TP-S 10 10 000
TP-S 17 17 000
