VRBK Load ring for welding for 90°-corners - RUD

View larger

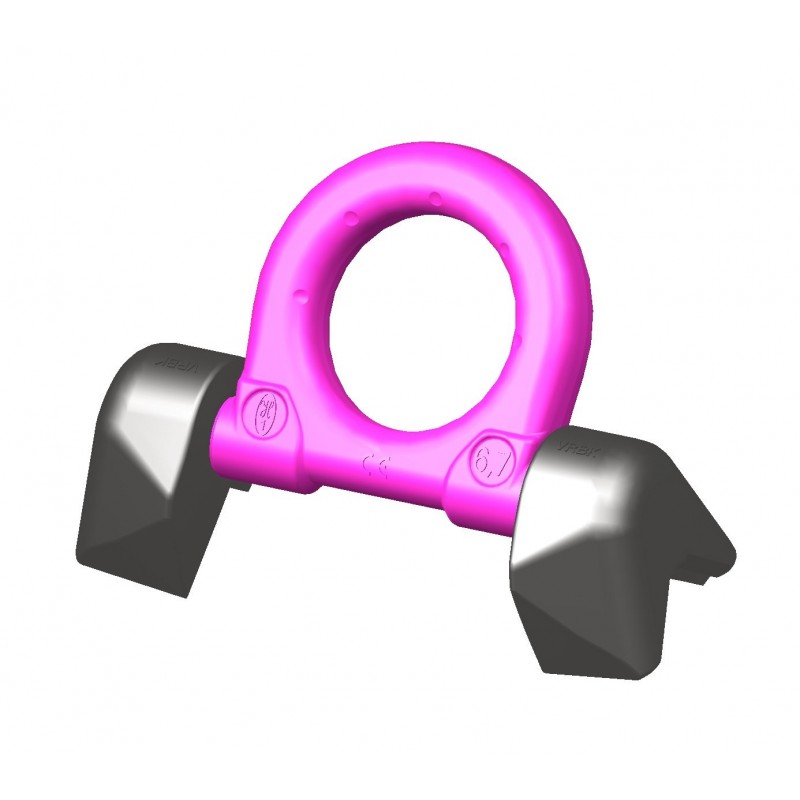

VRBK-FIX Load ring for welding for 90°-corners - RUD

Name: VRBK-FIX Load ring for welding for 90°-corners - RUD
Brand: RUD
Availability: OutOfStock

An enhancement of the well-established VRBK - series.
A forged ring bracket according to EN1677-1, electromagnetically crack detected, pink powder coated and it can be loaded in all directions. No time-consuming alignment between the weld-on blocks and ring. Clamp spring is protected placed inside the weld-on block.

More details

Price:

on demand

Send to a friend

Send to a friend

VRBK-FIX Load ring for welding for 90°-corners - RUD

An enhancement of the well-established VRBK - series.
A forged ring bracket according to EN1677-1, electromagnetically crack detected, pink powder coated and it can be loaded in all directions. No time-consuming alignment between the weld-on blocks and ring. Clamp spring is protected placed inside the weld-on block.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

An enhancement of the well-established VRBK - series.
A forged ring bracket according to EN1677-1, electromagnetically crack detected, pink powder coated and it can be loaded in all directions.
No time-consuming alignment between the weld-on blocks and ring. Clamp spring is protected placed inside the weld-on block. The spring fixes the weld-on blocks to the ring and creates at the same time a radial clamping. No loose items.
Clamping spring avoids rattling noise.
Recognition of inclination angle indicated by markings on the ring and on the blocks in all levels.
Even force distribution owing to the two point attachment.
Low profile sice it can be folded with in an angle range of 270°.
The welding block for edges is forged out of a good welding material 1.0577+N (St 52-3) and clearly stamped with an identification number for the permissible WLL.
