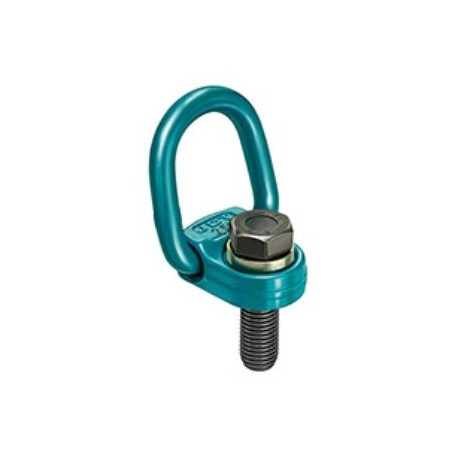

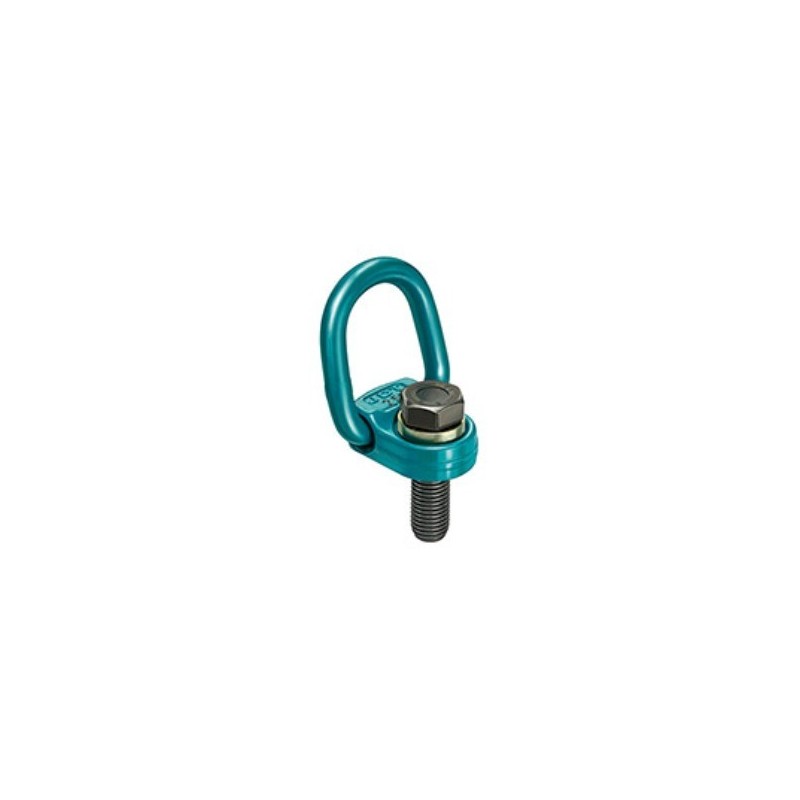

FLAT Point  enormously flat and good - JDT View larger

FLAT Point enormously flat and good - JDT

The socket labelling and WLL must always be upwards when installing the screw. Secured four times against breakage in all load directions Enormously flat , Rotates 360°, Admissible working range of take-up link 110°, Automatically locking link

More details

Price:

on demand

More info

  • The socket labelling and WLL must always be upwards when installing the screw.
  • Secured four times against breakage in all load directions Enormously flat
  • Rotates 360°
  • Admissible working range of take-up link 110°
  • Automatically locking link

Product combinations

Model Capacity WLL in kg Thread Thread length, mm
FP 0,5 700 M10 12
FP 0,8 1 250 M12 17
FP 1,5 2 120 M16 27
FP 2,5 3 550 M20 42
FP 4-S 4 000 M24 50
FP 4 5 600 M24 41
FP 5 7 100 M27 51
FP 6 8 000 M30 51
FP 8 8 000 M36 57
