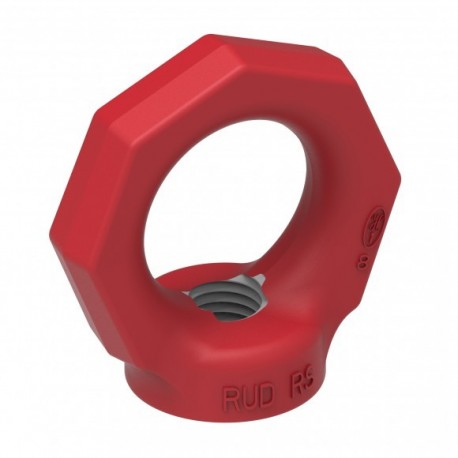

RM Eye nut, metric thread - RUD

Name: RM Eye nut, metric thread - RUD
Brand: RUD
Availability: OutOfStock

With the following characteristics, distinctive in comparison to the conventional DIN - eye nuts; An octagonal shape symbolising quality class 8 Colored red, the identification color of quality class 8

More details

Price:

on demand

Send to a friend

Send to a friend

RM Eye nut, metric thread - RUD

With the following characteristics, distinctive in comparison to the conventional DIN - eye nuts; An octagonal shape symbolising quality class 8 Colored red, the identification color of quality class 8

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

With the following characteristics, distinctive in comparison to the conventional DIN - eye nuts
An octagonal shape symbolising quality class 8
Colored red, the identification color of quality class 8
Identification : Clear WLL indication for the most unfavorable load direction F2 (not permissible for DIN 581).
Swiveling movements must be avoided during transportation.
Not suitable for swiveling under load.
It does not automatically adjust to the direction of pull hence not permitted in the mining industry.

Product combinations

Model	Capacity WLL in kg	Thread
RM M6	100	M6
RM M8	200	M8
RM M10	250	M10
RM M12	400	M12
RM M14	750	M14
RM M16	1 000	M16
RM M20	1 500	M20
RM M24	2 000	M24
RM M30	3 000	M30
RM M36	4 000	M36
RM M42	6 000
RM M48	8 000	M48
