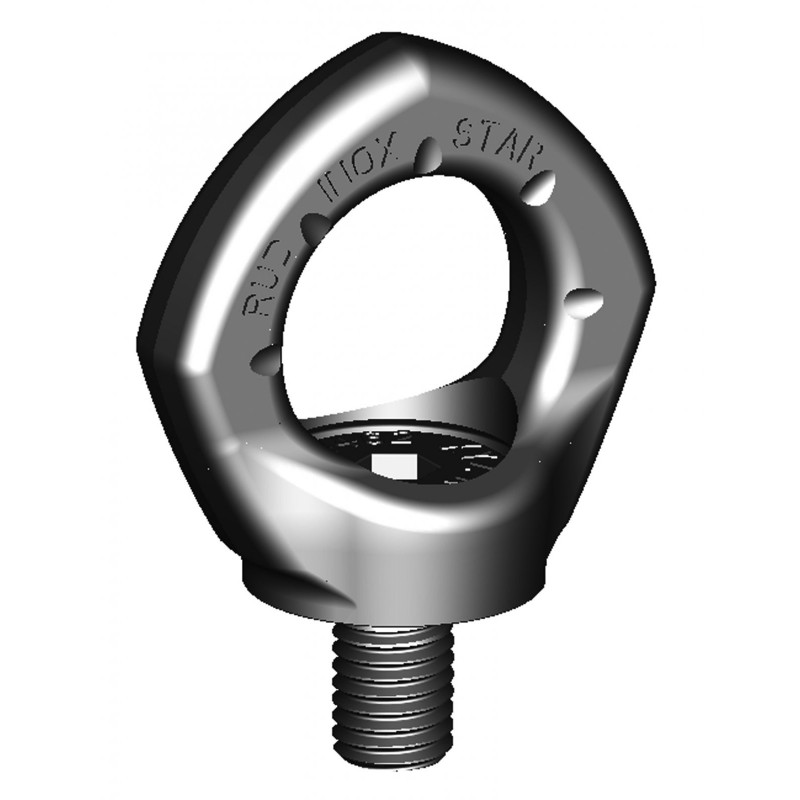

Pentagonal design - clearly distinctive in comparison to the DIN 580 eye bolt.
Identification : Clear WLL indication for the most unfavorable load direction F (not permissible for DIN 580). With a forged ring body out of the material 1.4462, 100% electromagnetic crack detected and with a 4 :1 design factor.

More details

Price:

on demand

More info

  • Pentagonal design - clearly distinctive in comparison to the DIN 580 eye bolt.
  • Identification : Clear WLL indication for the most unfavorable load direction F (not permissible for DIN 580).
  • With a forged ring body out of the material 1.4462, 100% electromagnetic crack detected and with a 4 :1 design factor.
  • Ensure an appropriate bore depth to facilitate an optimal sitting of the engaging surface. Without an additional washer, screw the INOX-STAR into the work piece until the seat - engaging surface of the hexagon socket bolt in the INOX-STAR evenly lies on the surface of the work piece.
  • The thread bore countersink is equal to the effective diameter of the thread.
  • Always make sure that the hexagon socket bolt is tight before loading.
  • When impact loaded or operated in environments with skewing and vibrations, unintentional loosening can happen, especially if through bolts with nuts are used.
  • Securing possibilities: Use of a liquid thread securing medium eg. Loctite ( follow the manufacturer´s recommendations).
  • In a tightened condition, the INOX-STAR must be able to swivel up to 360°.
  • Before loading, adjust the assembly to the direction of the applied force.
  • A captive hexagon socket bolt - special bolt.

Product combinations

Model Capacity WLL in kg Thread The standard length of thread, mm
INOX-STAR M12 500 M12 18
INOX-STAR M16 1 000 M16 24
INOX-STAR M20 2 000 M20 30
INOX-STAR M24 2 500 M24 36
