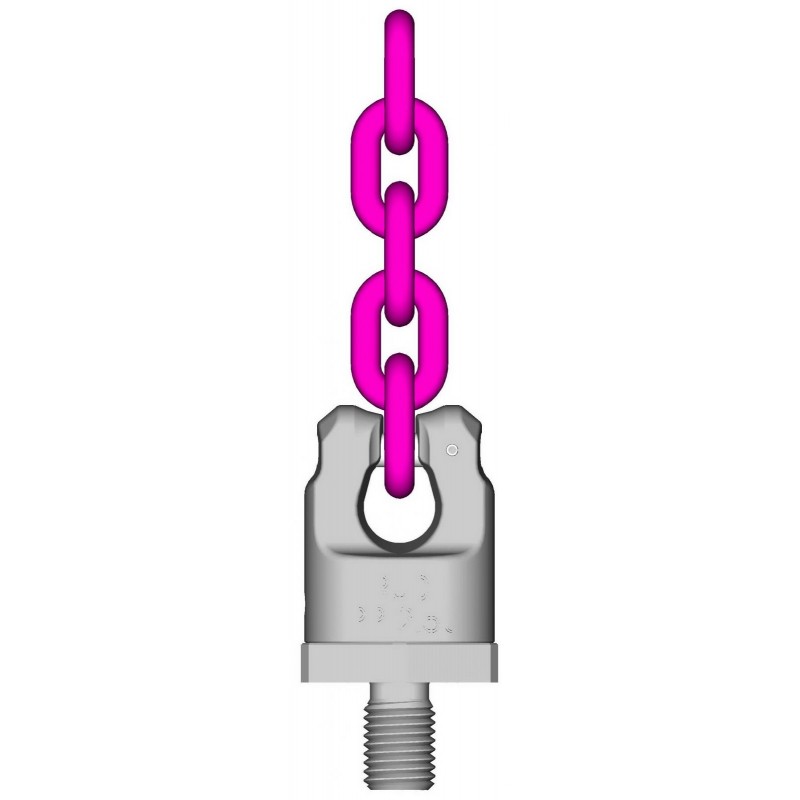

PP-VIP PowerPoint direkter VIP-Ketten-Anschluss - metrisch RUD

The first generation of lifting points with a double ball bearing for the direct connection of the VIP chain. Version PP-VIP. Even under full load, can be turned in a 90° position from the bolt centre line. Not suitable for permanent swiveling under full load. Maximum WLL with the smallest thread diameter. Thread length : 18 mm

More details

Price:

on demand

Send to a friend

Send to a friend

PP-VIP PowerPoint direkter VIP-Ketten-Anschluss - metrisch RUD

The first generation of lifting points with a double ball bearing for the direct connection of the VIP chain. Version PP-VIP. Even under full load, can be turned in a 90° position from the bolt centre line. Not suitable for permanent swiveling under full load. Maximum WLL with the smallest thread diameter. Thread length : 18 mm

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

More info

The first generation of lifting points with a double ball bearing for the direct connection of the VIP chain.
Version PP-VIP.

Even under full load, can be turned in a 90° position from the bolt centre line.
Not suitable for permanent swiveling under full load.
Maximum WLL with the smallest thread diameter. Thread length : 18 mm

Product combinations

Model	Capacity WLL in kg	Thread	The standard length of thread, mm
PP-VIP 0,63 M12	630	M12	18
PP-VIP 1,5 M16	1 500	M16	25
PP-VIP 2,5 M20	2 500	M20	30
PP-VIP 4 M24	4 000	M24	36
PP-VIP 5 M30	5 000 (6 700)	M30	45
PP-VIP 8 M36	8 000 (10 000)	M36	50
