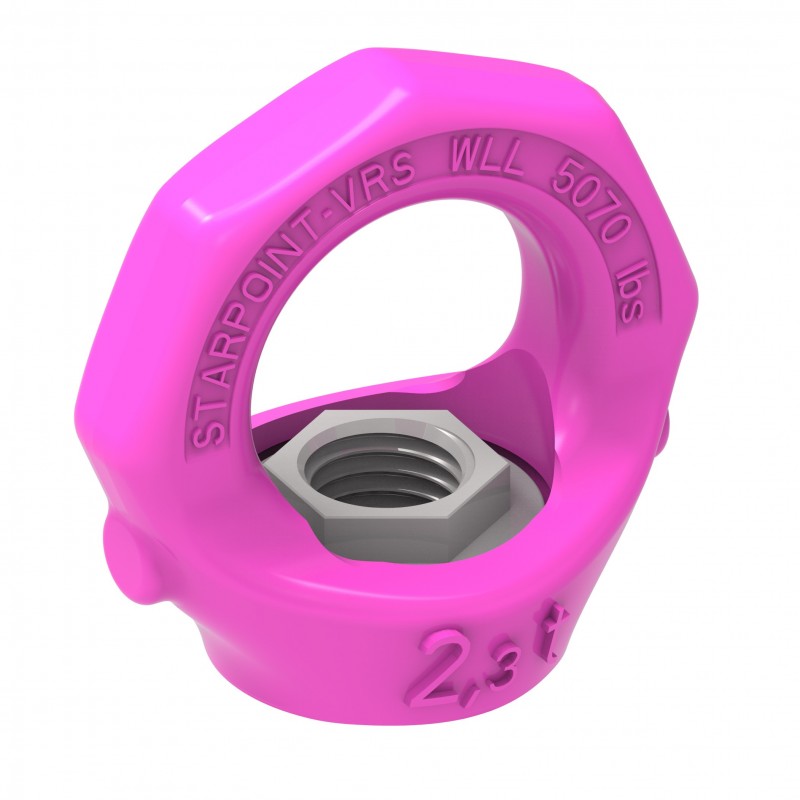

VRM STARPOINT - Eye nut, metric thread - RUD View larger

VRM STARPOINT - Eye nut, metric thread - RUD

Star shaped design. A clear distinction from the DIN 582 eye nut.
Color : A striking fluorescent pink powder coating.
Identification : Clear WLL indication for the most unfavorable load direction F (not permissible for DIN 582)

More details

Price:

on demand

More info

  • Star shaped design. A clear distinction from the DIN 582 eye nut.
  • Color : A striking fluorescent pink powder coating.
  • Identification : Clear WLL indication for the most unfavorable load direction F (not permissible for DIN 582)

Product combinations

Model Capacity WLL in kg Thread The standard length of thread, mm
VRM-M6 100 M6 11
VRM-M8 300 M8 14
VRM-M10 400 M10 14
VRM-M12 750 M12 17
VRM-M16 1 500 M16 21
VRM-M20 2 300 M20 23
VRM-M24 3 200 M24 29
VRM-M30 4 500 M30 34
