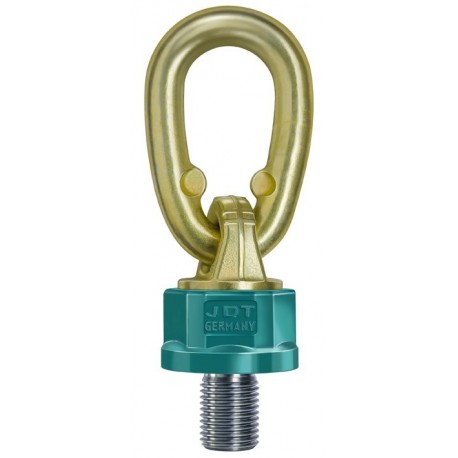

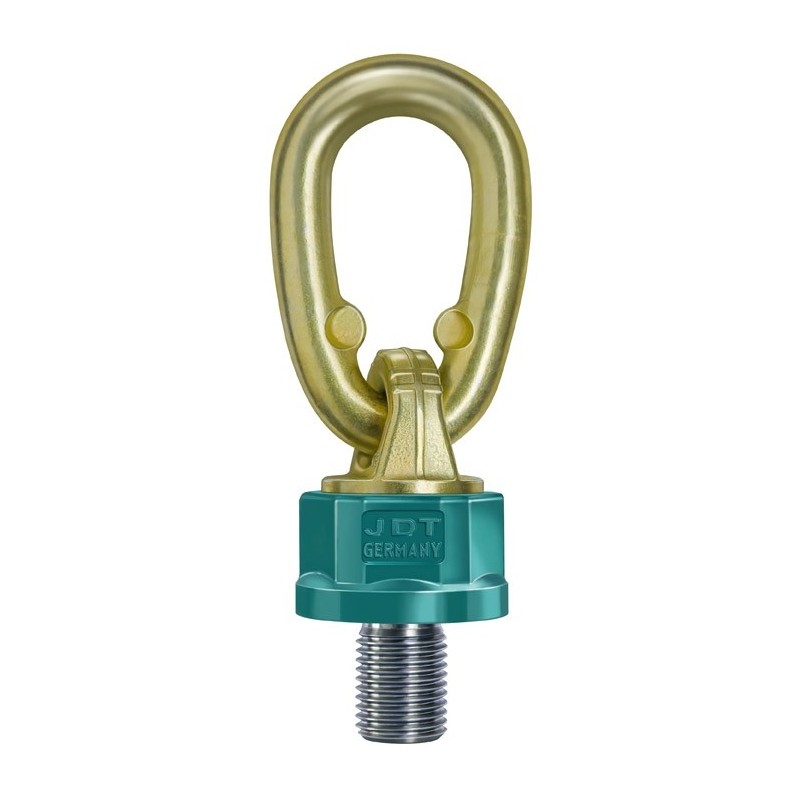

> >>>THEIPA Point The advanced Generation of attachment swivels ball-bearing - JDT
THEIPA Point The advanced Generation of attachment swivels ball-bearing - JDT View larger

THEIPA Point The advanced Generation of attachment swivels ball-bearing - JDT

Increase of working load limit by 25% without increasing swivel size compared to TAWGK. Easy to attach or dismantle due to the forged hexagon shaped body of the swivel. Crimpfeature on the link prevents the link from kinking. Both internal and external surfaces are protected against corrosion by a tough galvanized coating.

More details

Price:

on demand

More info

  • Increase of working load limit by 25% without increasing swivel size compared to TAWGK.
  • Easy to attach or dismantle due to the forged hexagon shaped body of the swivel.
  • Crimpfeature on the link prevents the link from kinking.
  • Both internal and external surfaces are protected against corrosion by a tough galvanized coating.
  • Swings more than 180°, rotates 360°.
  • Secured four times against breakage in all load directions. Rotatable under load.
  • Marked with the WLL.
  • Marks on the swivel give a clear indication of inclination angles.
  • Additional ball bearing system allows for smooth swiveling under load.
  • With the new WLL tables you can measure disposal stage.
  • Improved swivel to surface contact due to special machining.
  • All thread versions are available on request

Product combinations

Model Capacity WLL in kg Thread Thread length, mm
TP 0,7 M10x18 500 M10 18
TP 0,7 M12x18 700 M12 18
TP 0,7 M12x25 700 M12 25
TP 0,7 M14x20 1 000 M14 20
TP 1,4 M16x30 1 400 M16 30
TP 1,4 M16x20 1 400 M16 20
TP 1,4 M24x30 1 700 M24 30
TP 1,4 M20x30 1 700 M20 30
TP 2,5 M20x30 2 500 M20 30
TP 2,5 M20x50 2 500 M20 50
TP 2,5 M20x40 2 500 M20 40
TP 2,5 M20x70 2 500 M20 70
TP 4 M24x30 4 000 M24 30
TP 4 M24x50 4 000 M24 50
TP 4 M24x45 4 000 M24 45
TP 4 M30x35 4 000 M30 35
TP 6,7 M30x35 6 700 M30 35
TP 6,7 M30x50 6 700 M30 50
TP 6,7 M30x45 6 700 M30 45
TP 6,7 M30x60 6 700 M30 60
TP 8 M30x45 8 000 M30 45
TP 8 M30x35 8 000 M30 35
TP 10 M36x54 10 000 M36 54
TP 10 M36x50 10 000 M36 50
TP 17 M42x60 13 000 M42 60
TP 12,5 M42x60 12 500 M42 60
TP 12,5 M45x60 12 500 M45 60
TP 12,5 M42x50 12 500 M42 50
TP 12,5 M42x63 12 500 M42 63
TP 12,5 M48x72 12 500 M48 72
TP 17 M48x60 17 000 M48 60
TP 17 M45x60 17 000 M45 60
TP 17 M56x78 18 000 M56 78
TP 20 M64x96 20 000 M64 96
TP 20 M64x110 20 000 M64 110
TP 28 M64x120 28 000 M64 120
TP 28 M80x150 28 000 M80 150
TP 35 M90x150 35 000 M90 150
TP 35 M80x120 35 000 M80 120
TP 40 M90x115 40 000 M90 115
TP 40 M100x150 40 000 M100 150
TP 40 M80x120 40 000 M80 120
TP 40 M90x150 40 000 M90 150
