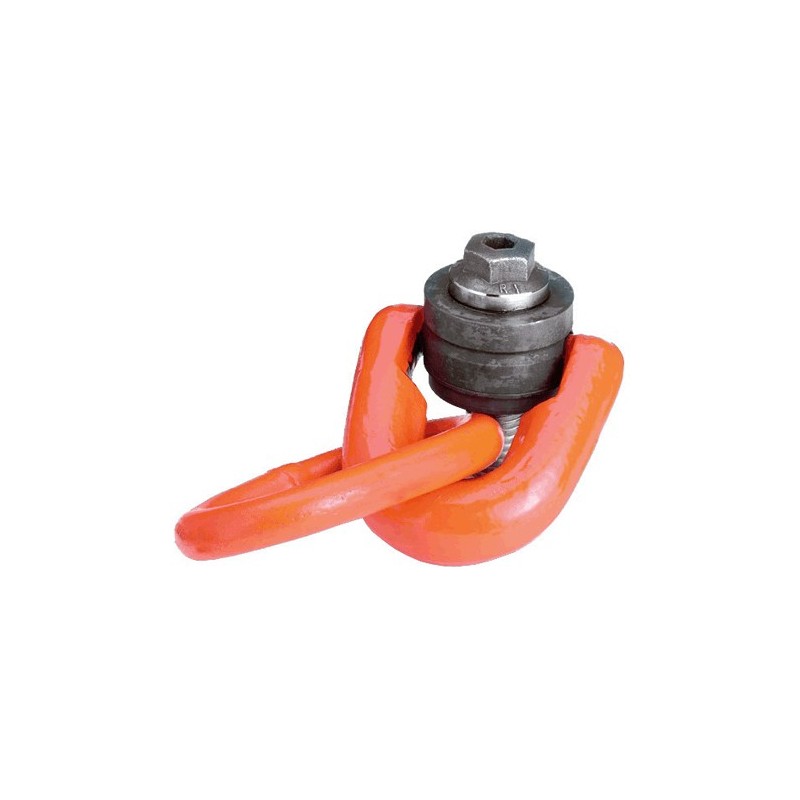

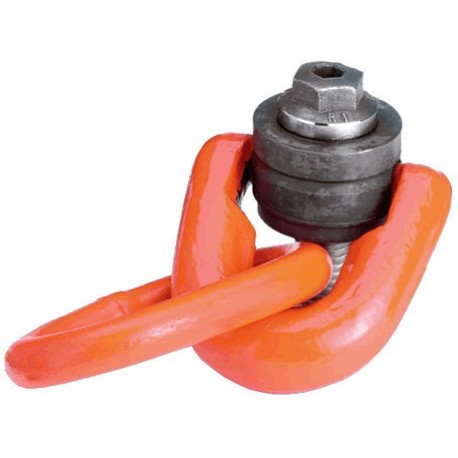

TSR + C Triple Swivel Ring + Centring CODIPRO

The triple swivel ring, TSR+C, allows the hook to move parallel to the supporting face of the ring being drawn at 90° Thanks to its centring system (+C) the axis is reinforced, when the eye bolt is fixed laterally on the charge to load.

More details

Price:

on demand

More info

The triple swivel ring, TSR+C, allows the hook to move parallel to the supporting face of the ring being drawn at 90° Thanks to its centring system (+C) the axis is reinforced, when the eye bolt is fixed laterally on the charge to load

  • Safety factor 4 or 5, according to the proposed WLL
  • Steel with high resistance, class > 8
  • Its triple articulation allows it to line up perfectly with the sling
  • Two ways of tightening: either by open-ended spanner or by Allen key
  • From M8 to M56 as standard; for loads from 0.3 t to 22 t
  • From UNC 5/16" to UNC 2" as standard; for loads from 650 lbs to 50,000 lbs
  • Other variants of fitting bolts on request
  • Equipped with the patented centring system

Product combinations

Model Capacity WLL in kg Thread Safety factor The standard length of thread, mm
TSR+C M8 300 M 8 (x1,25) 5 14
TSR+C M10 600 M 10 (x1,5) 5 78
TSR+C M12 1 000 M 12 (x1,75) 5 21
TSR+C M14 1 300 M 14 (x2) 5 23
TSR+C M16 1 600 M 16 (x2) 5 27
TSR+C M18 2 000 M 18 (x2,5) 5 27
TSR+C M20 2 500 M 20 (x2,5) 5 30
TSR+C M22 3 000 M 22 (x2,5) 5 33
TSR+C M24 4 000 M 24 (x3) 5 36
TSR+C M27 5 000 M 27 (x3) 5 36
TSR+C M30 6 300 M 30 (x3,5) 5 45
TSR+C M36 10 000 M 36 (x4) 5 54
TSR+C M42 12 500 M 42 (x4,5) 5 63
TSR+C M48 20 000 M 48 (x5) 4 68
TSR+C M56 22 000 M 56 (5,5) 4
