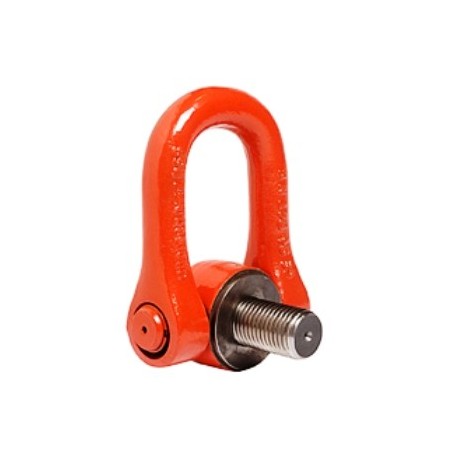

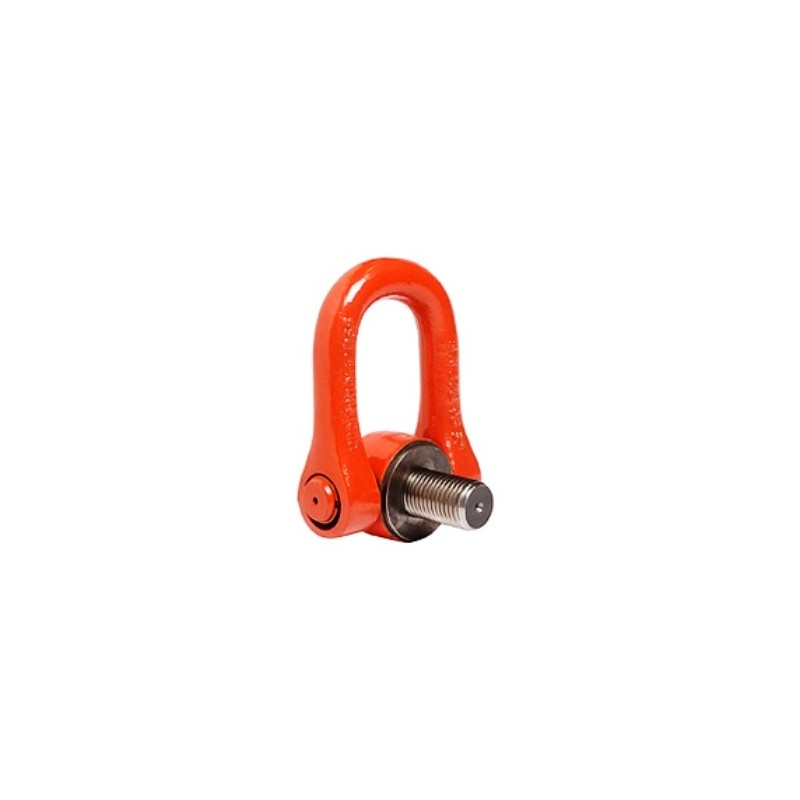

DSS Double Swivel Shackle CODIPRO

With a WLL of up to 50 tons, the double swivel shackle DSS has been especially designed for liftings and turnings of heavy loads. The lifting ring DSS also has a very large shackle.

More details

Price:

on demand

More info

With a WLL of up to 50 tons, the double swivel shackle DSS has been especially designed for liftings and turnings of heavy loads. The lifting ring DSS also has a very large shackle.

  • Safety factor of 4 or 5, according to the proposed WLL
  • Double articulation allows it to line up perfectly with the sling
  • Compact and ergonomic
  • Tightening by Allen key
  • From M24 to M100 as standard; for loads from 4.5 t to 32.1 t
  • From UNC 1¼" to UNC 2" as standard; for loads from 14,000 lbs to 50,000 lbs
  • Other variants of fitting bolts on request
  • Also available in stainless steel and "female" version

Product combinations

Model Capacity WLL in kg Thread Safety factor The standard length of thread, mm
DSS M24 4 500 M 24 (x3) 5 36
DSS M30 7 300 M 30 (x3,5) 5 45
DSS M33 8 000 M 33 (x3,5) 5 50
DSS M39 10 000 M 39 (x4) 5 58
DSS M36x3 10 000 M 36 (x3) 5 54
DSS M36 10 000 M 36 (x4) 5 54
DSS M42x3 12 500 M 42 (x3) 5 63
DSS M42 12 500 M 42 (x4,5) 5 63
DSS M45 15 000 M 45 (x4,5) 4 63
DSS M52 20 000 M 52 (x5) 4 68
DSS M 48x3 20 000 M 48 (x3) 4 68
DSS M48 20 000 M 48 (x5) 4 68
DSS M 48x4 20 000 M 48 (x4) 4 68
DSS M72x4 25 000 M 72 (x4) 4 90
DSS M56x4 25 000 M 56 (x4) 4 78
DSS M72 25 000 M 72 (x6) 4 90
DSS M56 25 000 M 56 (5,5) 4 78
DSS M100 32 100 M 100 (x6) 4 90
DSS M64x4 32 100 M 64 (x4) 4 90
DSS M80 32 100 M 80 (x6) 4 90
DSS M64 32 100 M 64 (x6) 4 90
DSS M90 32 100 M 90 (x6) 4 90
