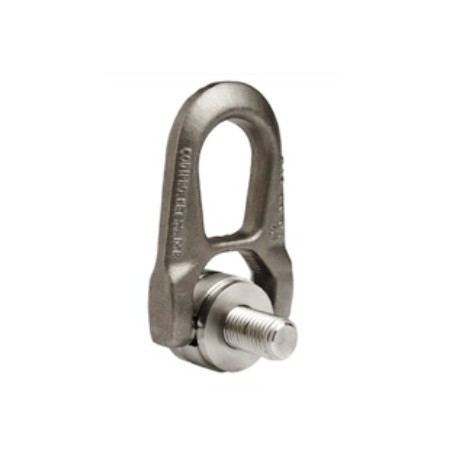

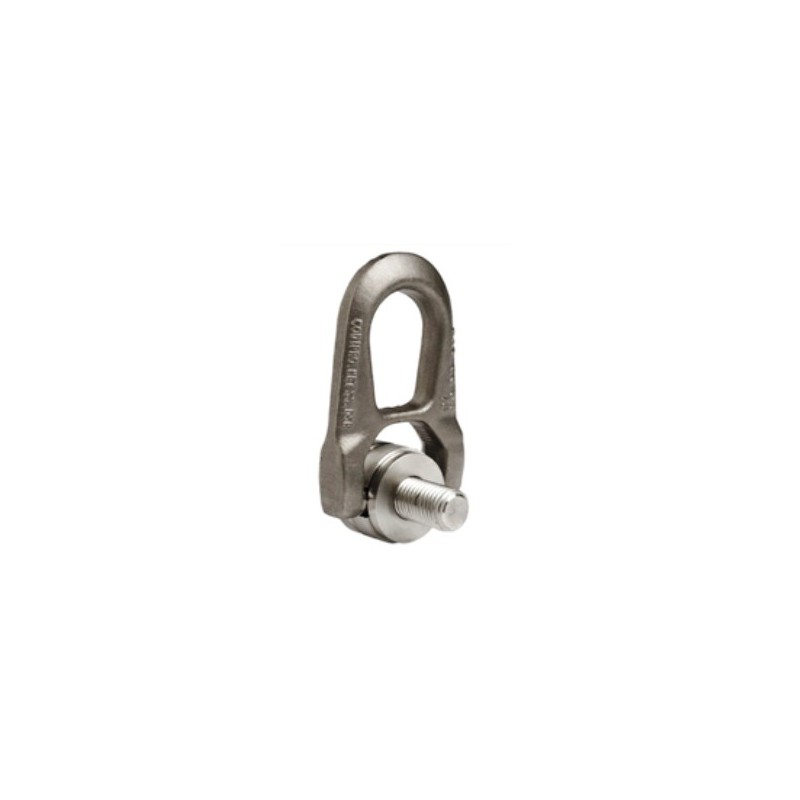

> >>> SS.DSR Stainless Steel Double Swivel Ring CODIPRO
SS.DSR Stainless Steel Double Swivel Ring CODIPRO View larger

SS.DSR Stainless Steel Double Swivel Ring CODIPRO

Capacity 300 - 3 000 kg

Stainless steel version of the double swivel ring: SS.DSR This ring can be used in humid, corrosive, chemical, maritime,... environment.

More details

Price:

on demand

More info

Stainless steel version of the double swivel ring: SS.DSR This ring can be used in humid, corrosive, chemical, maritime,... environment.

  • Safety factor 5
  • Double articulation allows it to line up perfectly with the sling
  • From M8 to M30 as standard; for loads from 0.3 t to 3 t
  • Other variants of fitting bolts on request

Product combinations

Model Capacity WLL in kg Thread Safety factor The standard length of thread, mm
SS.DSR M8 300 M 8 (x1,25) 5 16
SS.DSR M10 500 M 10 (x1,5) 5 16
SS.DSR M12 800 M 12 (x1,75) 5 19
SS.DSR M14H 1 000 M 14 (x2) 5 29
SS.DSR M16H 1 500 M 16 (x2) 5 26
SS.DSR M18H 1 500 M 18 (x2,5) 5 30
SS.DSR M20H 1 600 M 20 (x2,5) 5 30
SS.DSR M22H 2 000 M 22 (x2,5) 5 42
SS.DSR M24H 2 700 M 24 (x3) 5 42
SS.DSR M27H 2 800 M 27 (x3) 5 42
SS.DSR M30H 3 000 M 30 (x3,5) 5 47
