Capacity 50 - 6 300 kg
The double swivel ring DSR has been especially designed to guarantee liftings under load. Its double articulation allows it to line up perfectly with the sling. This swivel ring is also available in stainless steel and can be used in a humid, corrosive, chemical,... environment.
Warning: Last items in stock!
Availability date:

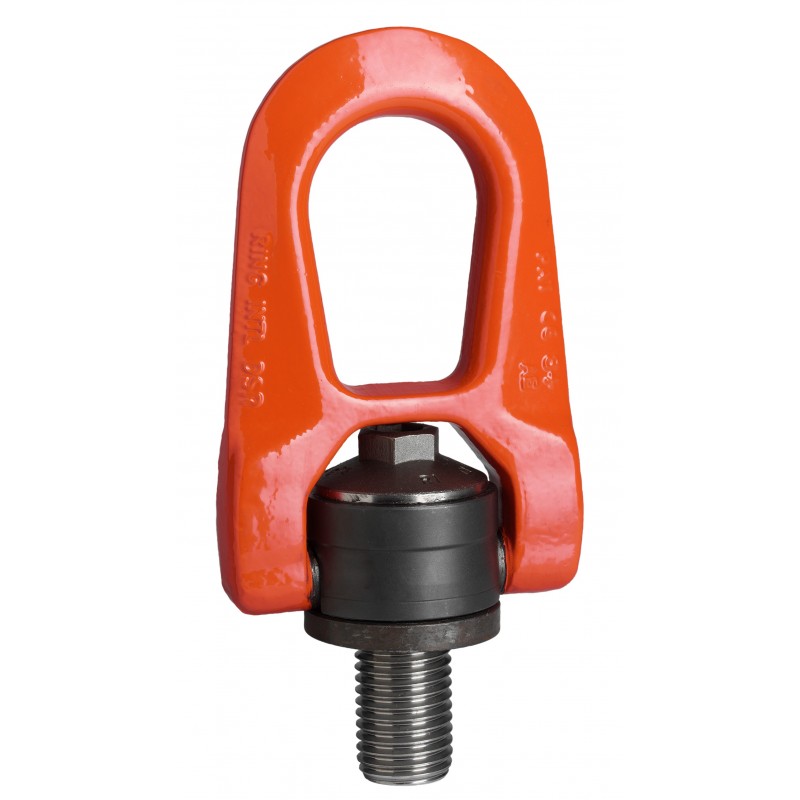

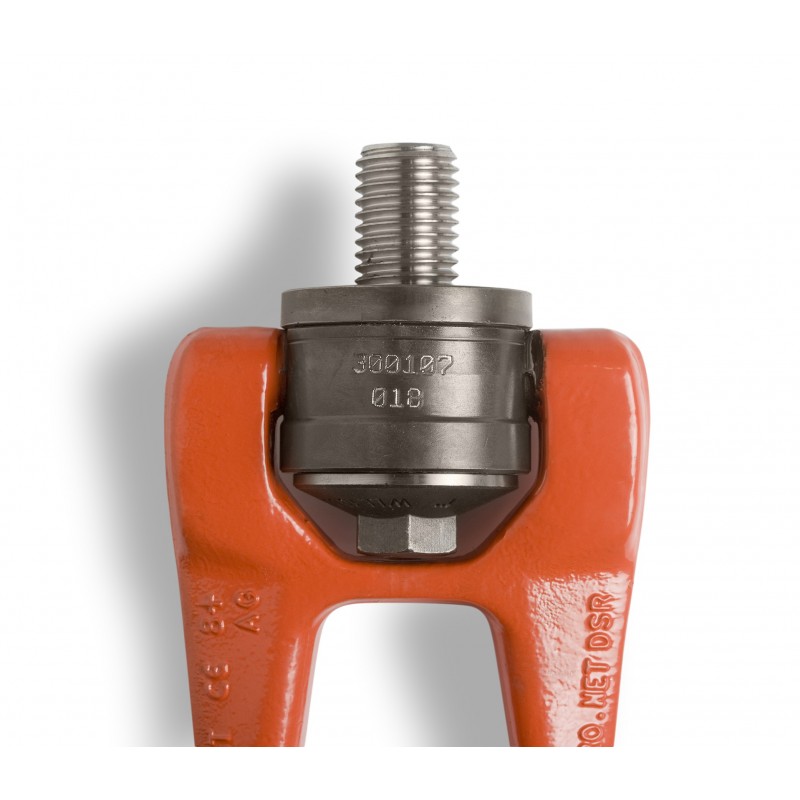

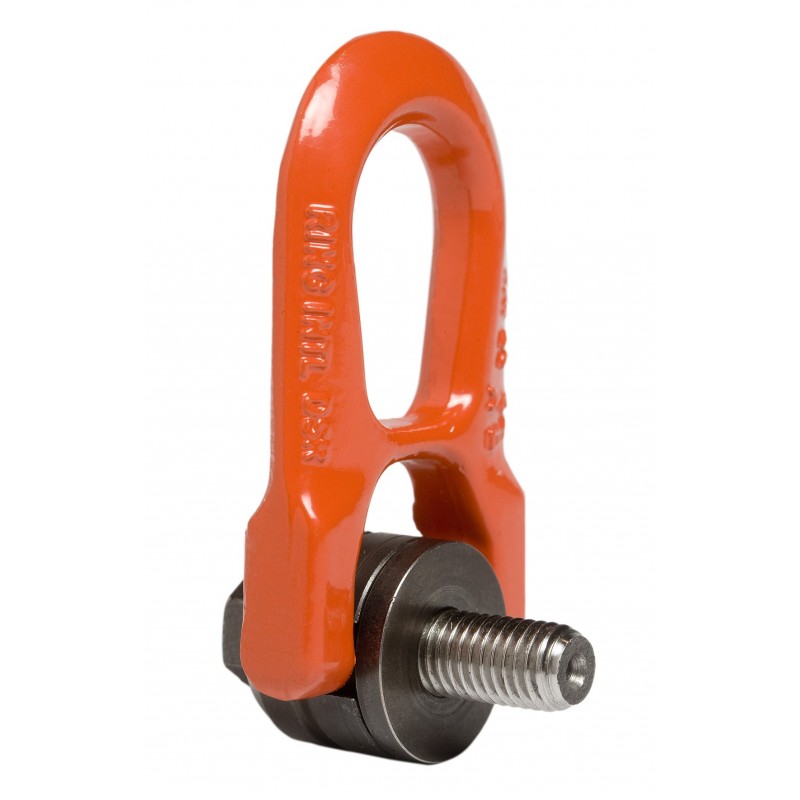

DSR Double Swivel Ring CODIPRO
Capacity 50 - 6 300 kg
The double swivel ring DSR has been especially designed to guarantee liftings under load. Its double articulation allows it to line up perfectly with the sling. This swivel ring is also available in stainless steel and can be used in a humid, corrosive, chemical,... environment.
Recipient :
* Required fields
or Cancel
Der Doppelwirbelring DSR wurde speziell entworfen um das Heben unter Rotation zu gewährleisten. Sein doppeltes Gelenk ermöglich es, diesen perfekt zum Anschlaggeschirr auszurichten. Er ist ebenfalls in Edelstahl erhältlich und kann somit in feuchter, korrosiver, chemischer,... Umgebung benutzt werden.
Model | Capacity WLL in kg | Thread | Safety factor | The standard length of thread, mm |
---|---|---|---|---|
DSR M 4 | 50 | M 4 (x0,7) | 5 | 15 |
DSR M 5 | 75 | M 5 (x0,8) | 5 | 15 |
DRS M 6 | 100 | M 6 (x1) | 5 | 15 |
DSR M 8 | 300 | M 8 (x1,25) | 5 | 14 |
DSR M 10 | 600 | M 10 (x1,5) | 5 | 17 |
DSR M 12 | 1 000 | M 12 (x1,75) | 5 | 21 |
DSR M 14 | 1 300 | M 14 (x2) | 5 | 23 |
DSR M 16 | 1 600 | M 16 (x2) | 5 | 27 |
DSR M 18 | 2 000 | M 18 (x2,5) | 5 | 27 |
DSR M 20 | 2 500 | M 20 (x2,5) | 5 | 30 |
DSR M 22 | 3 000 | M 22 (x2,5) | 5 | 33 |
DSR M 24 | 4 000 | M 24 (x3) | 5 | 36 |
DSR M 27 | 5 000 | M 27 (x3) | 5 | 40 |

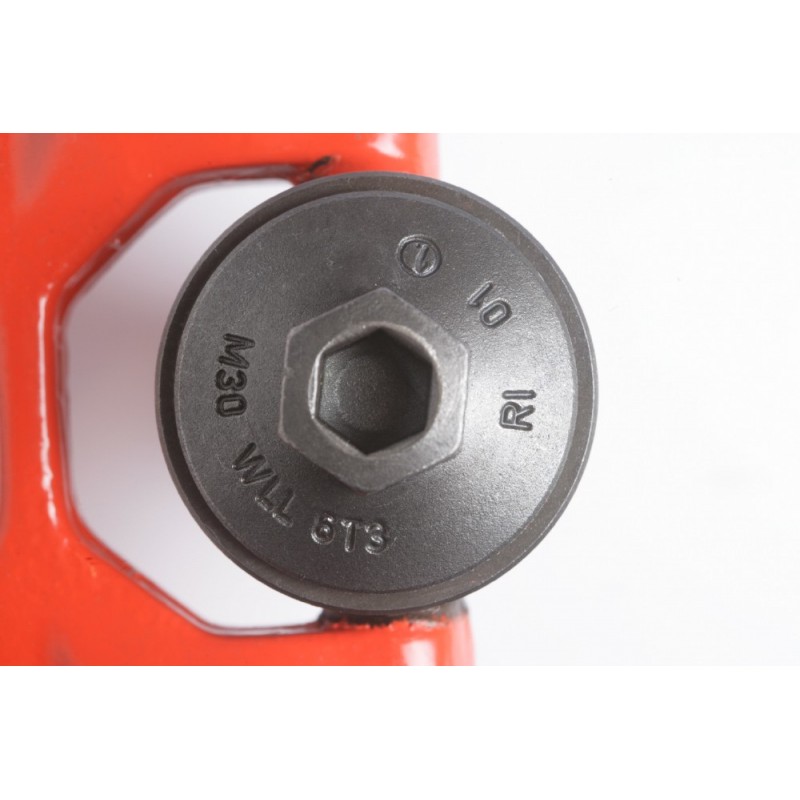

DSR M 30 | 6 300 | M 30 (x3,5) | 5 |
