PEWAG AOR High-tensile lashing points

Capacity 3 150 - 36 000 kg
For mounting machine parts or vehicle bodies. Ideal for hanging of
lifting and lashing gear.

Permissible usage
Load capacity acc. to the inspection certificate respectively table of
WLL in the mentioned directions of pull.


More details

Price:

on demand

More info

For mounting machine parts or vehicle bodies. Ideal for hanging of
lifting and lashing gear.

Permissible usage
Load capacity acc. to the inspection certificate respectively table of
WLL in the mentioned directions of pull.

Non permissible usage
Make sure when choosing the assembly that improper charge can
not arise e.g. if:
• The direction of pull is obstructed
• Direction of pull is not in the foreseen area
• Loading ring rests against edges or loads

Product combinations

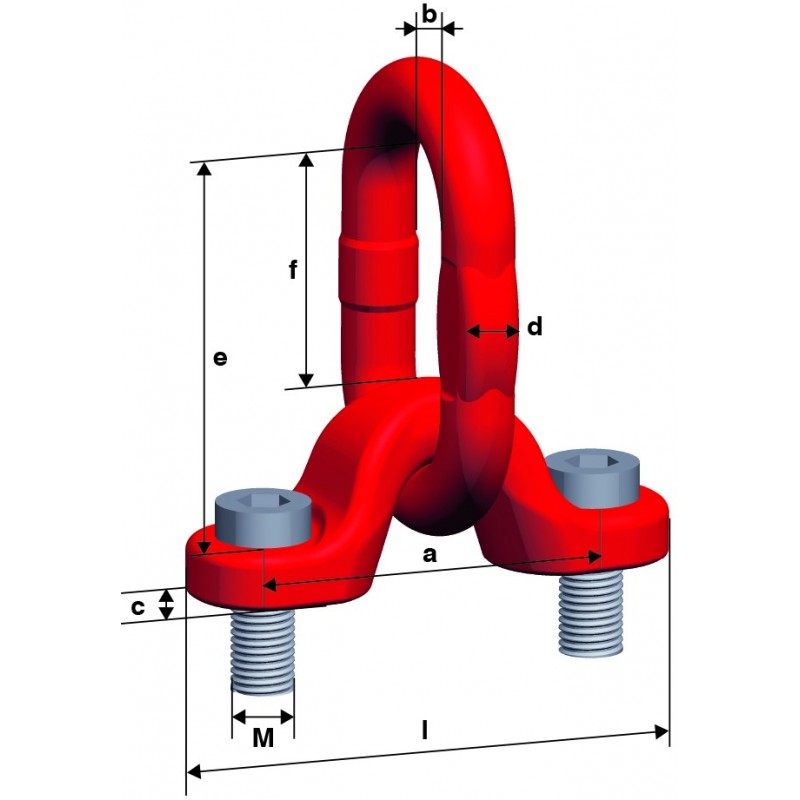

Model Capacity WLL in kg Thread
AOR 10 3 150 M16
AOR 13 5 300 M20
AOR 16 8 000 M30
AOR 22 15 000 M36
AOR 26 21 200 M42
AOR 28 25 000 M45
AOR 32 31 500 M56
AOR 34 36 000 M56
