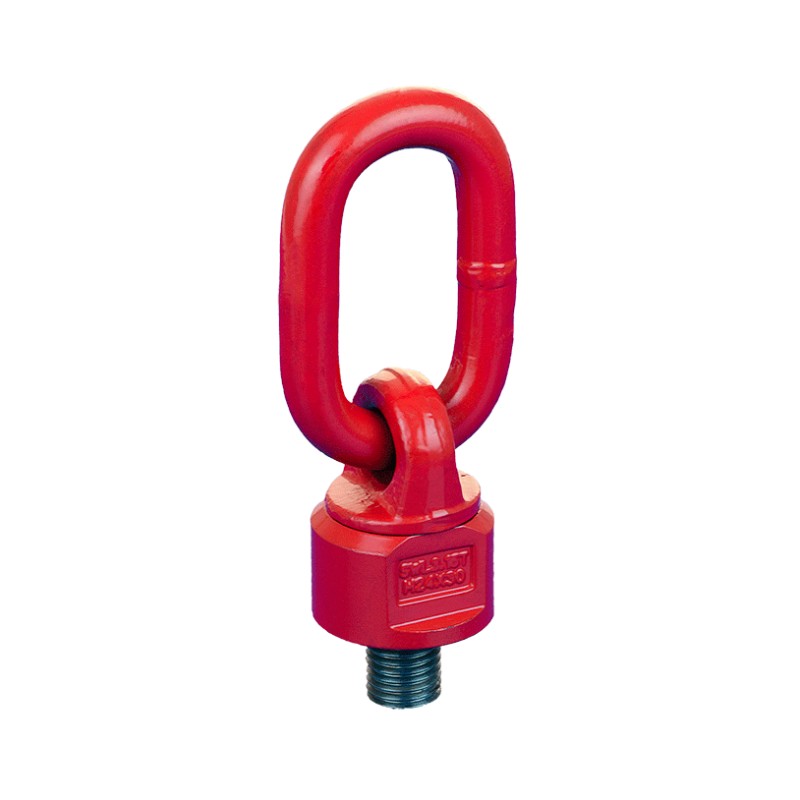

SAW Ring bolt

Name: SAW Ring bolt
Availability: OutOfStock

SAW Ring bolt grade 8.

Price:

on demand

SAW Ring bolt grade 8.

Model	Capacity WLL in kg	Thread	Diameter D&E	The standard length of thread, mm
SAW 0,3 - 10 - 18	300		M10	18
SAW 0,3 - 8 - 22	300		M8	22
SAW 0,3 - 8 - 18	300		M8	18
SAW 0,5 - 12 - 25	500		M12	25
SAW 0,5 - 12 - 18	500		M12	18
SAW 0,5 - 14 - 20	500		M14	20
SAW 1 - 16 - 20	1 120		M16	20
SAW 1 - 20 - 30	1 120		M20	30
SAW 1 - 16 - 30	1 120		M16	30
SAW 1 - 24 - 30	1 120		M24	30
SAW 2 - 20 - 70	2 000		M20	70
SAW 2 - 20 - 30	2 000		M20	30
SAW 2 - 20 - 50	2 000		M20	50
SAW 2 - 20 - 40	2 000		M20	40
SAW 3 - 24 - 45	3 150		M24	45
SAW 3 - 30 - 35	3 150	M30		35
SAW 3 - 24 - 30	3 150		M24	30
SAW 3 - 24 - 50	3 150		M24	50
SAW 5 - 30 - 45	5 300	M30		45
SAW 5 - 30 - 35	5 300	M30		35
SAW 8 - 30 - 45	8 000	M30		45
SAW 8 - 30 - 35	8 000	M30		35
SAW 8 - 36 - 54	8 000	M36		54
SAW 10 - 36 - 50	10 000	M36		50
SAW 10 - 42 - 63	10 000	M42		63
SAW 10 - 36 - 54	10 000	M36		54
SAW 10 - 42 - 50	10 000	M42		50
SAW 10 - 48 - 72	10 000	M48		72
SAW 15 - 56 - 78	15 000	M56		78
SAW 15 - 48 - 60	15 000	M48		60
SAW 15 - 64 - 96	15 000	M64		96
SAW 15 - 45 - 60	15 000	M45		60
SAW 25 - 72 - 108	25 000	M72		108
SAW 30 - 80 - 120	30 000	M80		120
SAW 35 - 90 - 135	35 000	M90		135
