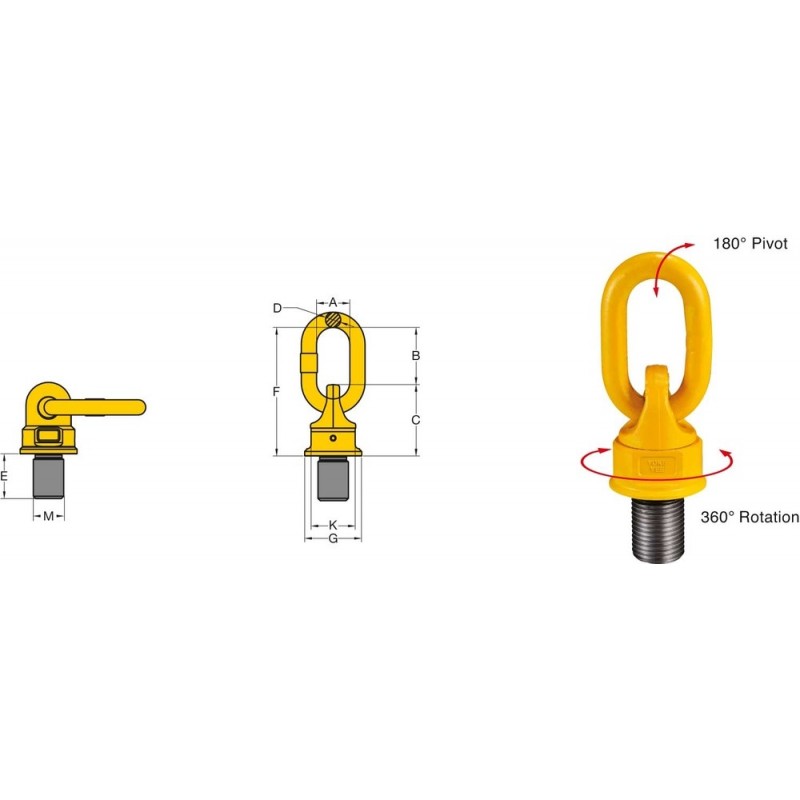

> >>>YOKE WBO Swivel point
WBO / YOKE SWIVEL POINT WBO View larger

YOKE WBO Swivel point

Extremely robust and corrosion-resistant YOKE-surface coating in characteristically yellow color. Threads from M8 up to M90.

More details

Price:

on demand

More info

  • With long-lasting premium ball bearing
  • 360° rotating Swivel Point
  • High-tensile, certified masterlink
  • Fully loadable in all directions on all sides, safety factor 4:1
  • Rotatable even under full load
  • Easy assembling through only one thread hole
  • All bolts and bodies 100% crack-detected
  • Extremely robust and corrosion-resistant YOKE-surface coating in characteristically yellow color
  • Threads from M8 up to M90
  • UNC-threads available on request

Product combinations

Model Diameter D&E Working load limit in t The standard length of thread, mm
WBO-M8 M8 0.3 12
WBO-M10 M10 0.45 15
WBO-M12 M12 0.6 18
WBO-M16 M16 1.3 24
WBO-M20 M20 2.0 30
WBO-M24 M24 3.5 36
WBO-M30 M30 5.0 50
WBO-M36 M36 8.0 54
WBO-M42 M42 13.0 63
WBO-M48 M48 14.0 68
WBO-M52 M52 20.0 78
WBO-M56 M56 20.0 84
WBO-M64 M64 20.0 95
WBO-M72 M72 40.0 108
WBO-M80 M80 40.0 120
WBO-M90 M90 40.0 135
