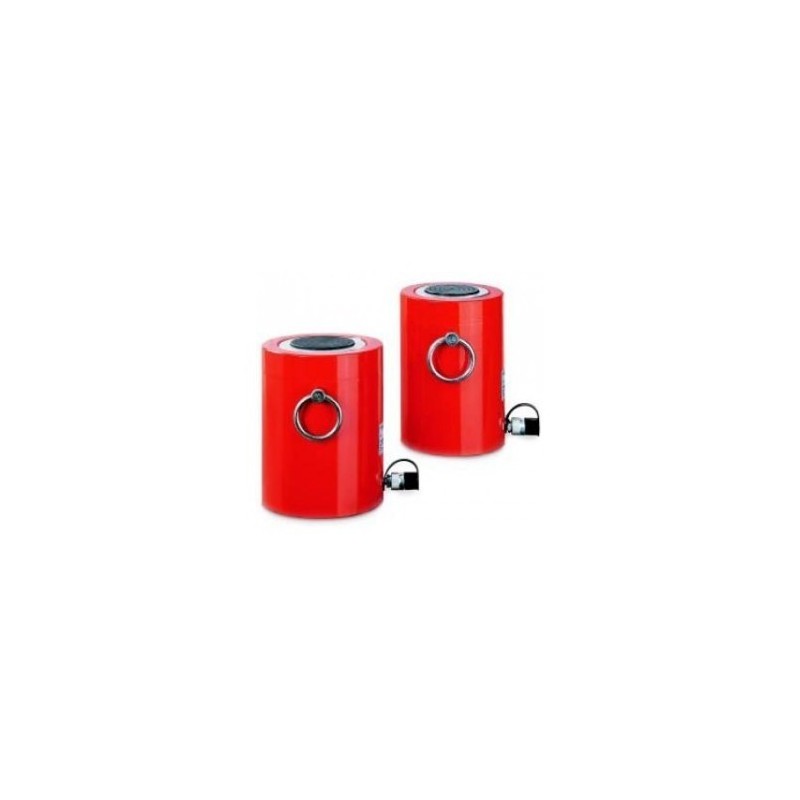

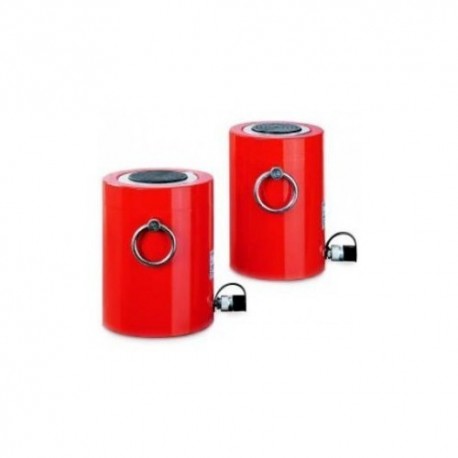

YALE YEGA High-tonnage cylinders

Single-acting, gravity return capacity max. 140 - 1100 t

These inexpensive cylinders of series YEGA are used for all general lifting applications in any area of industry where heavy loads need to be lifted, lowered, levelled, positioned or supported. Lifting and moving large machinery, steel construction, bridges or similar loads, supporting buildings and foundations.

More details

Price:

on demand

More info

These inexpensive cylinders of series YEGA are used for all general lifting applications in any area of industry where heavy loads need to be lifted, lowered, levelled, positioned or supported. Lifting and moving large machinery, steel construction, bridges or similar loads, supporting buildings and foundations. For all heavy-duty jacking applications where a special safety factor is appropriate like lifting and lowering bridges, supporting buildings and foundations, jacking up heavy machines, steel sections, ship modules or similar loads.



Features

  • Operating pressure max. 700 bar.
  • Plunger in special piston guiding bands.
  • Hard chromium-plated piston.
  • Overflow hole ensures a definite piston end stop.
  • Interchangeable hardened saddle.
  • Oil port thread 3/8 NPT.
  • Incl. female coupler half model CFY-1.
  • All cylinders have lifting rings.

Product combinations

Model Lift, mm Lashing capacity, kN
YEGA-340/50 50 3 370
YEGA-880/50 50 8 625
YEGA-220/50 50 2 200
YEGA-670/50 50 6 603
YEGA-560/50 50 5 520
YEGA-430/50 50 4 226
YEGA-1100/150 50 10 916
YEGA-140/50 50 1 380
YEGA-560/100 100 5 220
YEGA-1100/100 100 10 916
YEGA-430/100 100 4 226
YEGA-140/100 100 1 380
YEGA-340/100 100 3 370
YEGA-880/100 100 8 625
YEGA-220/100 100 2 200
YEGA-670/100 100 6 603
YEGA-430/150 150 4 226
YEGA-140/150 150 1 380
YEGA-340/150 150 567
YEGA-880/150 150 8 625
YEGA-220/150 150 2 200
YEGA-670/150 150 6 603
YEGA-560/150 150 5 520
YEGA-140/200 200 1 380
YEGA-240/250 250 3 370
YEGA-880/250 250 8 625
YEGA-1100/250 250 10 916
YEGA-220/250 250 2 200
YEGA-260/250 250 6 603
YEGA-560/250 250 5 520
YEGA-430/250 250 4 226
YEGA-140/300 300 1 380
