TBG / YALE TBG Stone / concrete grab with small jaw capacity   View larger

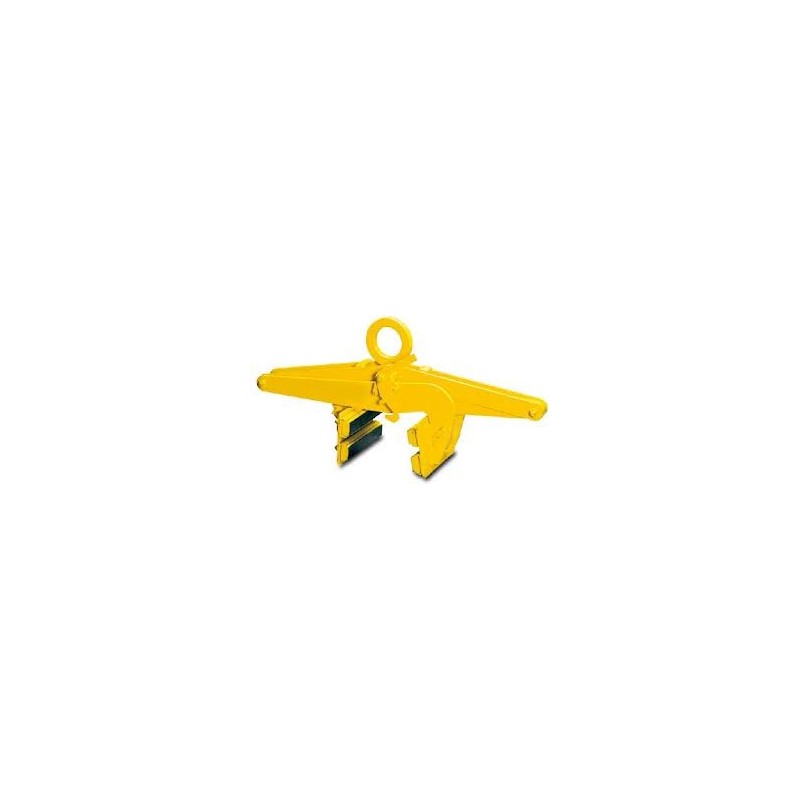

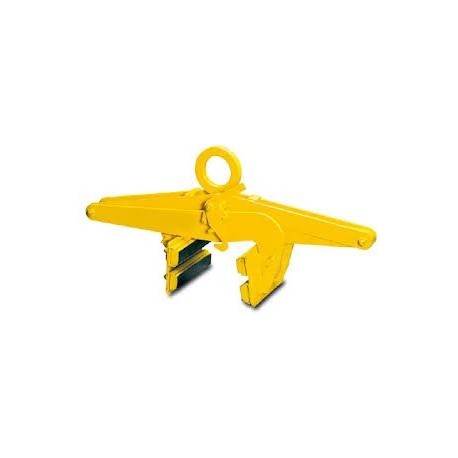

YALE TBG Stone / concrete grab with small jaw capacity

Capacity 200 - 2 500 kg

The TBG block grabs are suited for the transport of all materials with parallel surfaces that can withst and a clamping pressure twice as high as the load being lifted. The grabs are delivered with a replaceable hard rubber protective lining as standard.

More details

Price:

on demand

More info

The TBG block grabs are suited for the transport of all materials with parallel surfaces that can withst and a clamping pressure twice as high as the load being lifted. The grabs are delivered with a replaceable hard rubber protective lining as standard.

Product combinations

Model Capacity WLL in kg Jaw capacity, mm
TBG 0,2/150 200 0 - 150
TBG 0,3/150 300 0 - 150
TBG 0,5/150 500 0 - 150
TBG 1,0/250 1 000 50 - 250
TBG 1,5/250 1 500 50 - 250
TBG 2,5/250 2 500 50 - 250
