PEWAG ZG ERGO-XLH 50 Lashing strap
ZG ERGO-XLH 50

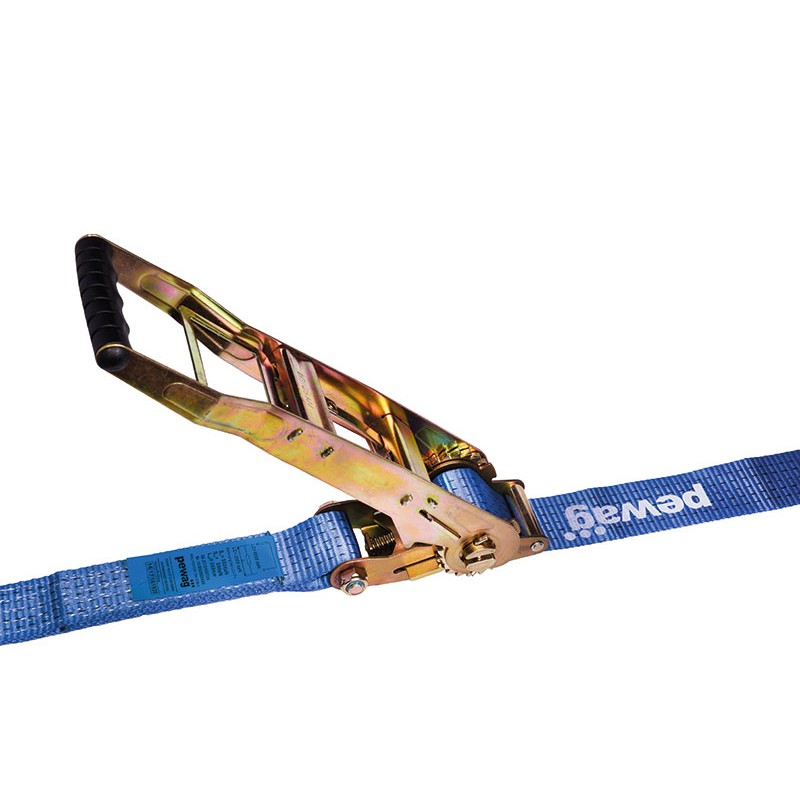

Lashing strap ZG ERGO-XLH 50 with ratchet RA ERGO-XLH 100.
Price:
on demand
Data sheet
| Webbing width, mm | 50 mm |
| Standard tension force STF | 550 daN |
| Pulling force (LC) - direct lashing process | 2 500 daN |
| Pulling force (LC) - strapping | 5 000 daN |
More info
Lashing strap ZG ERGO-XLH 50 with ratchet RA ERGO-XLH 100.
The ZG 50 lashing strap system with an extra-long lever ratchet offers high standard tension forces, thus reducing the number of lashing devices required for frictional lashing.
Order example:
ZG ERGO-XLH 50 x 8000 / 2500 Z DHS
Lashing strap system 50 two-piece, with ratchet RA ERGO-XLH 100
and 2 units DHS as end fittings, Strap width 50 mm,
length lG = 8,000 mm
