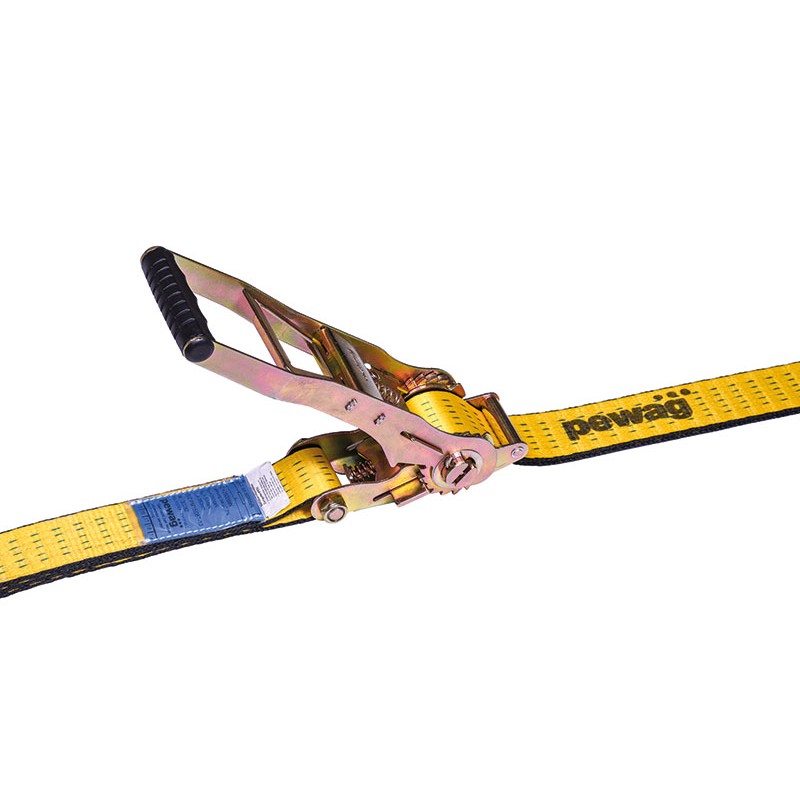

PEWAG ZG 50 VB Lashing strap

Name: PEWAG ZG 50 VB Lashing strap
Brand: PEWAG
Availability: OutOfStock

Reference: ZG 50 VB

Lashing strap ZG 50 VB with ratchet RA ERGO-DZ 100. Increased wear resistance thanks to the extra-densely woven webbing.

More details

Price:

on demand

Send to a friend

Send to a friend

PEWAG ZG 50 VB Lashing strap

Lashing strap ZG 50 VB with ratchet RA ERGO-DZ 100. Increased wear resistance thanks to the extra-densely woven webbing.

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Data sheet

Standard tension force STF	500 daN
Pulling force (LC) - direct lashing process	2 500 daN
Pulling force (LC) - strapping	5 000 daN

More info

Lashing strap ZG 50 VB with ratchet RA ERGO-DZ 100.
Increased wear resistance thanks to the extra-densely woven webbing. Lashing straps with wear-resistant webbing come with stitched-on label protection sleeve. May be combined with all ratchets and end fittings from the ZG 50 mm range.

Order example:
ZG ERGO DZ 50 VB x 8000 / 2500 Z DHS
Lashing strap system 50, two-piece lashing strap, with ratchet RA
ERGO-DZ 100 and 2 units DHS as end fittings, strap width 50 mm,
length lG = 8,000 mm made of wear-resistant webbing.
