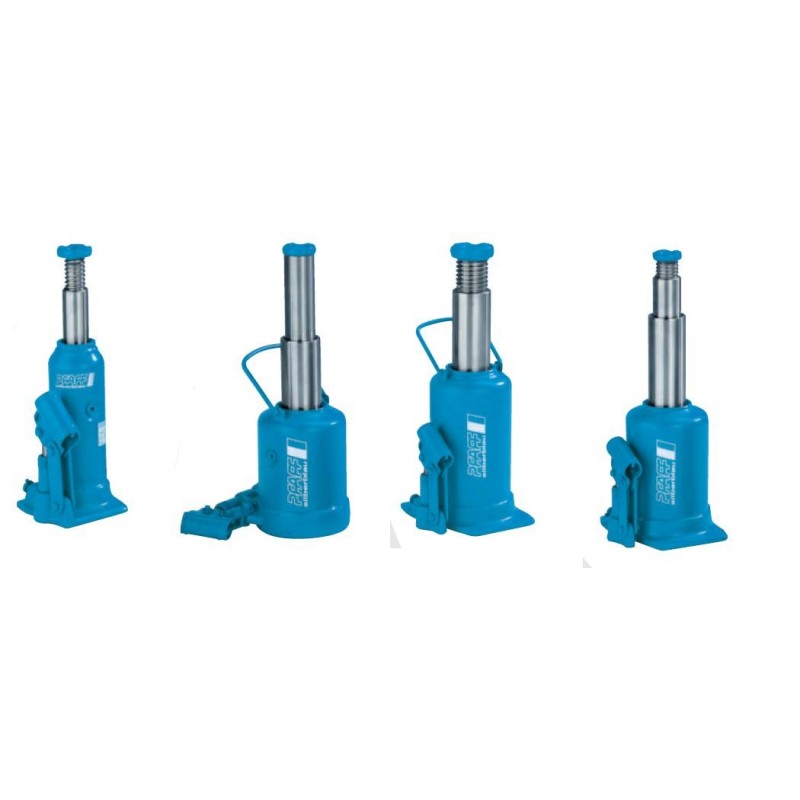

HWH KS PROLINE Hydraulic car jack PFAFF silberblau
Lifting loads from 2 t up to 30 t
For lifting vehicles on one side (the lifted load must be secured mechanically with supporting stands, for example).
Price:
on demand
More info
For lifting vehicles on one side (the lifted load must be secured mechanically with supporting stands, for example).
Features
- Versions with hydraulic piston and mechanical spindle drive or with 2 hydraulic pistons.
- With carrying bracket from load capacity 20 t.
- Extremely low design with model HWH 2K/D (incl. 1 pressure section for lift extension).
- With integrated pressure control valve for a longer service life of the jack.
- Integrated seat valve for controlled lowering of the load.
Product combinations
| Model | Capacity WLL in kg | Format |
|---|---|---|
| HWH KS 2,0 | 2 000 | piston / spindle |
| HWK 2K 3,0 | 3 000 | 2 pistons |
| HWH KS 3,5 | 3 500 | piston / spindle |
| HWH KS 5,0 | 5 000 | piston / spindle |
| HWH 2K 5,0 | 5 000 | 2 pistons |
| HWH KS 8,0 | 8 000 | piston / spindle |
| HWH 2KS 10,0 | 10 000 | 2 pistons |
| HWH KS 10,0 | 10 000 | piston / spindle |
| HWH 2KS 12,0 | 12 000 | 2 pistons |
| HWH KS 12,0 | 12 000 | piston / spindle |
| HWH KS 15,0 | 15 000 | piston / spindle |
| HWH KS 20,0 | 20 000 | piston / spindle |
| HWH KS 25,0 | 25 000 | piston / spindle |
| HWH KS 30,0 | 30 000 | piston / spindle |
