> >>>YALE YS Universal cylinder
YS Universal cylinder YALE View larger

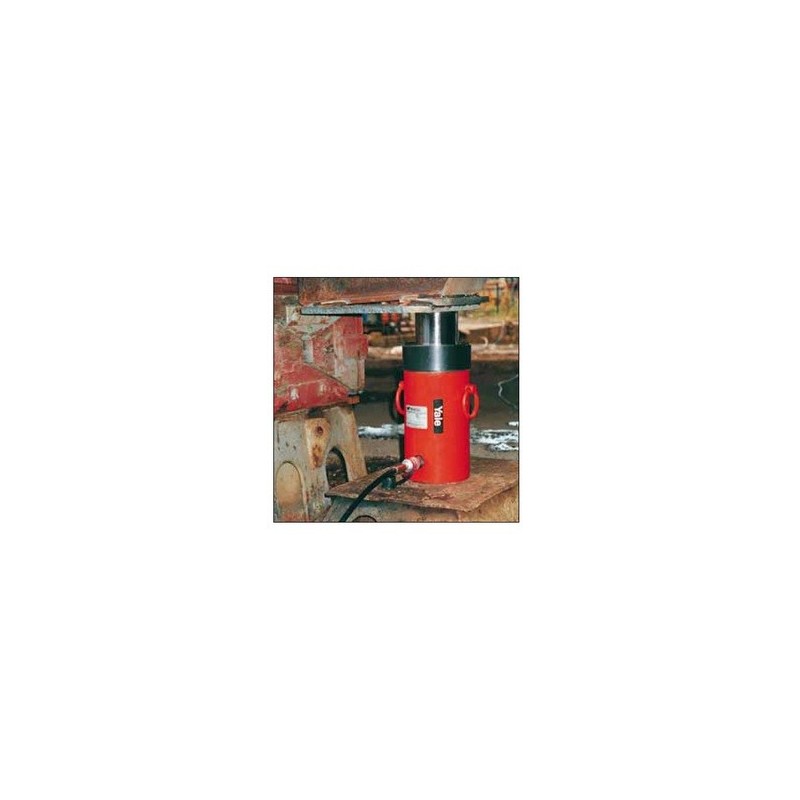

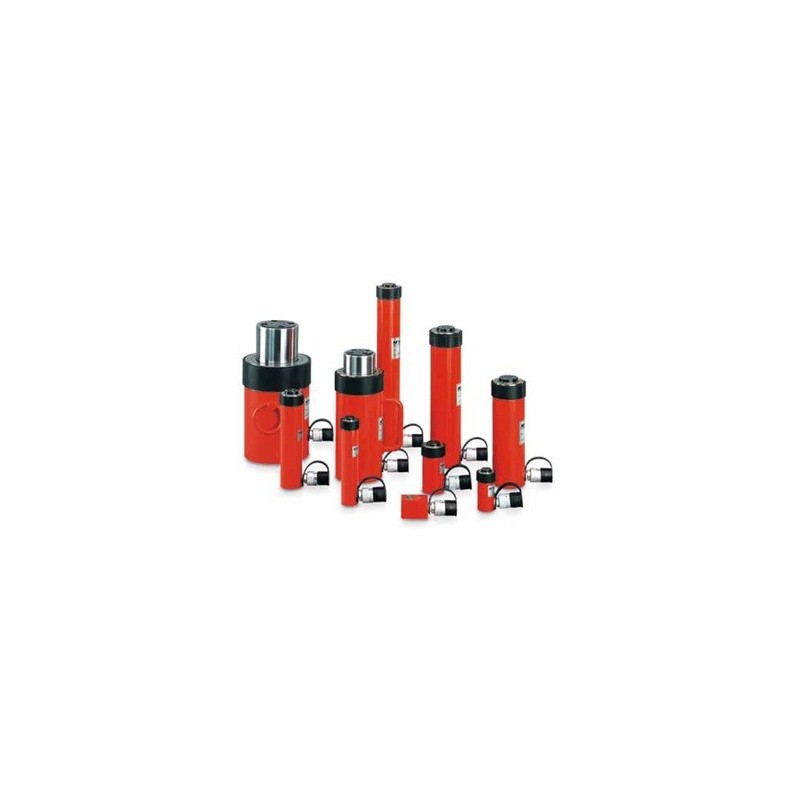

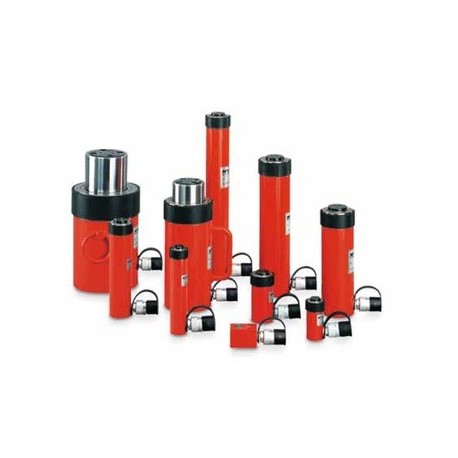

YALE YS Universal cylinder

Single-acting with spring return, capacity 5 - 100 t

Robust construction with long guides allows the units to withst and abuse and better tolerate eccentric and side loading, yet is convenient to use with only one quick-release coupler hose connection and a spring return.

More details

Price:

on demand

More info

Robust construction with long guides allows the units to withst and abuse and better tolerate eccentric and side loading, yet is convenient to use with only one quick-release coupler hose connection and a spring return. Universal cylinders are designed for all jobs where high forces but compact dimensions are required: e.g. straigh-tening steel constructions, removing parts like shafts, axles, lifting, positioning, weighing, supporting, testing as well as for all general assembly and repair applications. Due to the various mounting threads the cylinders can easily be installed in clamping devices, welding fixtures, frame presses etc.

 Features

  • Yale ChroMo-Design.
  • Operating pressure max. 700 bar.
  • Single-acting with spring return.
  • Robust design with long piston bearings to withstand eccentric loading.
  • Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated.
  • Hard-chromium plated piston with replaceable, heat-treated saddle.
  • Metric mounting threads on cylinder collar, in the base and piston rod (5 to 30t).
  • Stop ring can bear full capacity (pressure) and is fitted with dirt wiper.
  • Interchangeable hardened saddle.
  • Dirt wiper protects against dirt.
  • Oil port thread 3/8 NPT.
  • Incl. female coupler half model CFY-1.
  • Model YS-50/100 and YS-50/160 with carrying handle.
  • Models YS-50/320 up to YS-100/200 with lifting rings.

Product combinations

Model Lift, mm Lashing capacity, kN
YS-5/15 15 50
YS-15/25 25 150
YS-10/25 25 100
YS-5/25 25 50
YS-23/25 25 230
YS-10/50 50 100
YS-23/50 50 230
YS-50/50 50 500
YS-15/50 50 150
YS-5/75 75 50
YS-23/100 100 230
YS-50/100 100 500
YS-15/100 100 150
YS-100/100 100 1 000
YS-10/100 100 100
YS-30/125 125 300
YS-5/127 127 50
YS-15/150 150 150
YS-70/150 150 700
YS-10/150 150 100
YS-50/160 160 500
YS-23/160 160 230
YS-5/180 180 50
YS-15/200 200 150
YS-10/200 200 100
YS-100/200 200 1 000
YS-30/200 200 300
YS-23/210 210 230
YS-23/250 250 230
YS-15/250 250 150
YS-10/250 250 100
YS-15/300 300 150
YS-10/300 300 100
YS-23/300 300 230
YS-50/320 320 500
YS-70/330 330 700
YS-23/345 345 230
YS-15/350 350 150
