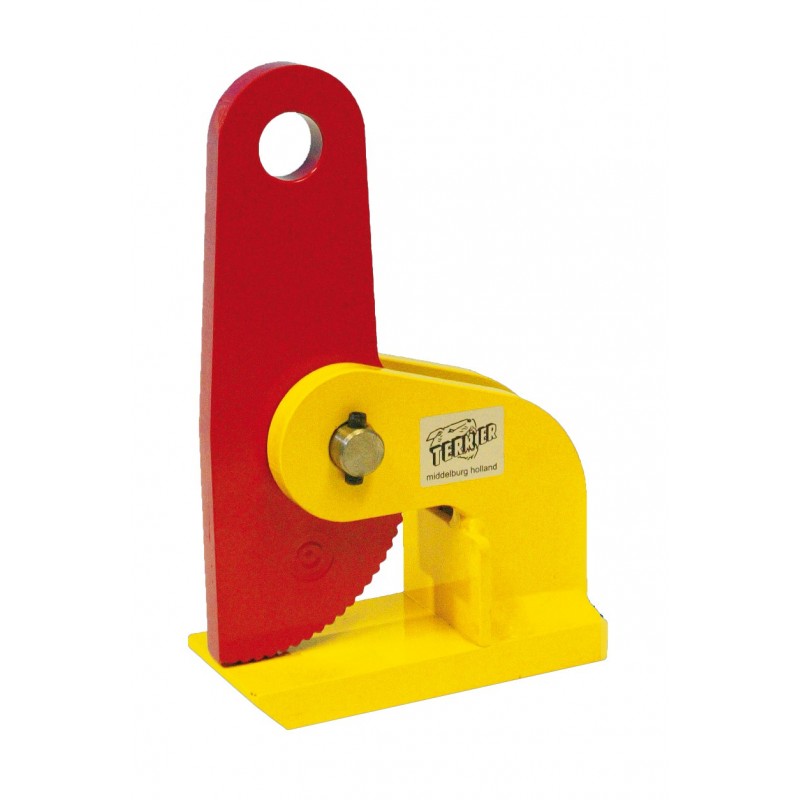

FHX / FHSX horizontal clamps TERRIER
For horizontal lifting and moving of steel plates. Clamp with compact shape and relative light unit weightbut with a high lifting capacity. FHX/FHSX pewag winner lifting clamps must always be used in pairs (or multiples thereof).
Price:
on demand
More info
For horizontal lifting and moving of steel plates.
- Clamp with compact shape and relative light unit weight but with a high lifting capacity.
- FHX/FHSX pewag winner lifting clamps must always be used in pairs (or multiples thereof).
- Lifting capacity and jaw opening are clearly engraved in the body.
- The Working Load Limits indicated are per pair of lifting clamps.
- The HSXW clamps have a larger jaw opening.
Product combinations
| Model | Capacity WLL in kg | Jaw-opening, mm |
|---|---|---|
| 1FHX | 1 000 | 0-35 |
| 2FHSX | 2 000 | 0-100 |
| 2FHX | 2 000 | 0-60 |
| 3FHSX | 3 000 | 0-100 |
| 3FHX | 3 000 | 0-60 |
| 4FHSX | 4 000 | 0-100 |
| 4FHX | 4 000 | 0-60 |
| 6FHSX | 6 000 | 0-100 |
| 6FHX | 6 000 | 0-60 |
| 8FHX | 8 000 | 0-60 |
| 8FHSX | 8 000 | 0-100 |
| 10FHSX | 10 000 | 0-100 |
| 10FHX | 10 000 | 0-60 |
| 12FHSX | 12 000 | 0-100 |
| 12FHX | 12 000 | 0-60 |
| 15FHX | 15 000 | 0-60 |
| 15FHSX | 15 000 | 0-150 |
| 25FHX | 25 000 | 0-60 |
