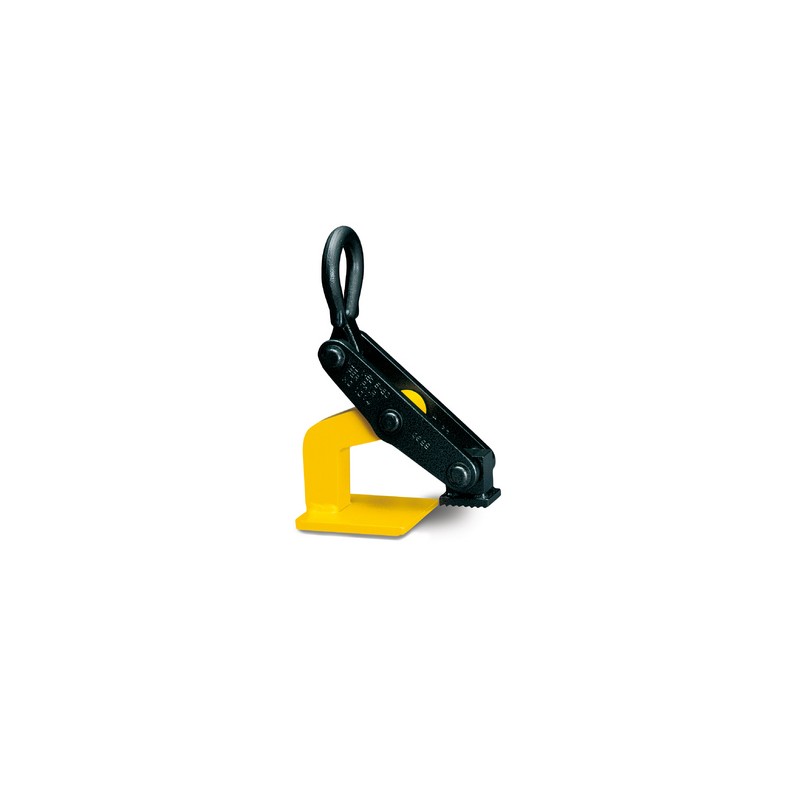

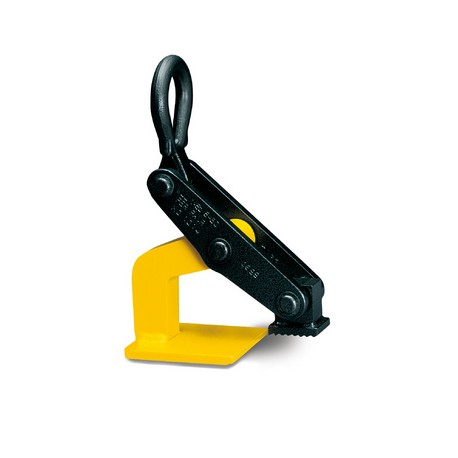

YALE TWH Lifting clamp
Capacity 1500 - 5000 kg
The TWH lifting clamp, when used in pairs, is well-suited for horizontal transport of individual and bundled plates.
Price:
on demand
More info
- The TWH lifting clamp, when used in pairs, is well-suited for horizontal transport of individual and bundled plates. The clamp is not suited for thin plates that have a tendency to sag during transport.
- It is normally used in combination with a two-legged chain sling. The capacity (WLL) applies to apair of lifting clamps.
Options
- Protective lining
Details
- The angle from the vertical must not exceed 45°.
Product combinations
| Model | Capacity WLL in kg | Type | Jaw capacity, mm |
|---|---|---|---|
| TWH 30 P | 1 500 | with plate jaw | 5 - 60 |
| TWH 30 R | 1 500 | with roller jaw | 5 - 60 |
| TWH 50 R | 2 500 | with roller jaw | 10 - 70 |
| TWH 50 P | 2 500 | with plate jaw | 10 - 70 |
| TWH 70 R | 3 500 | with roller jaw | 10 - 80 |
| TWH 70 P | 3 500 | with plate jaw | 10 - 80 |
| TWH 100 R | 5 000 | with roller jaw | 10 - 102 |
| TWH 100 P | 5 000 | with plate jaw | 10 - 102 |
