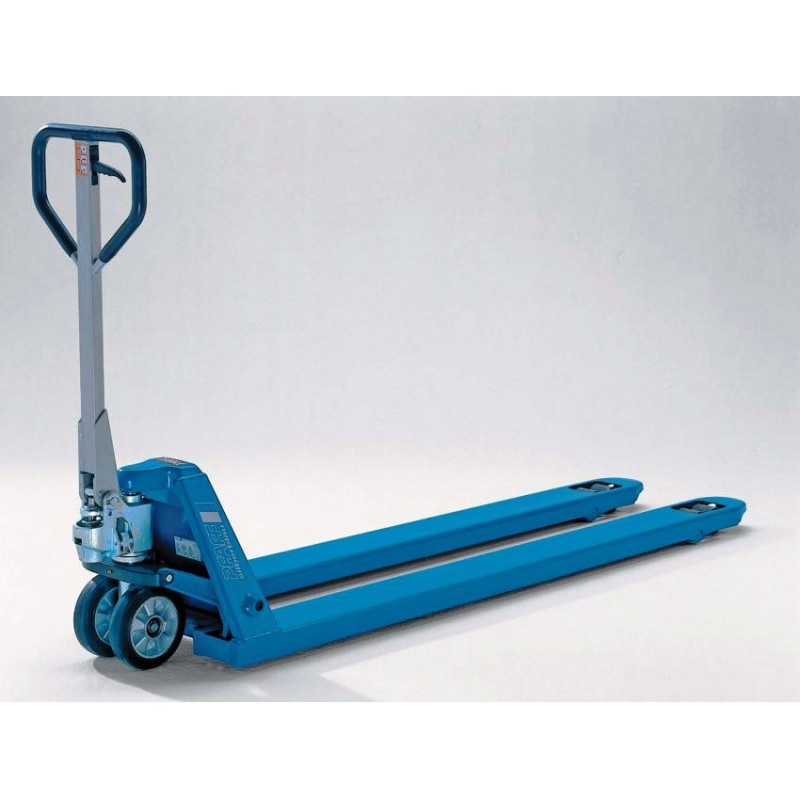

PROLINE Hand pallet truck with extended forks and increased capacity PFAFF silberblau
Capacity 3 000 - 3 500 kg
For the professional transportation of long palletised goods and box pallets under demanding conditions.
Price:
on demand
More info
For the professional transportation of long palletised goods and box pallets under demanding conditions.
- Ergonomic safety control handle for one-hand operation of lifting, driving and lowering.
- Ergonomic rubber control handle for safe handling.
- Low maintenance high performance hydraulic pump with hard chromium plated piston and pressure relief valve.
- Frame and forks in robust steel construction, adjustable connecting rods, especially hardened axles and the high quality powder coating ensure a long life expectancy.
- Fork lenghts from 1500 up to 2000 mm for transportation of long goods.
- Steering angle of 105 degree to each side for easy handling in confined spaces.
Product combinations
| Model | Capacity WLL in kg | Scroll wheel, mm | Supporting wheels, mm | Fork width, mm | Fork length, mm | Overall width Fork, mm |
|---|---|---|---|---|---|---|
| HU 20-200 TP | 2 000 | 200x50 | 82x70 | 160 | 2 000 | 540 |
| HU 20-250 TP | 2 000 | 200x50 | 82x70 | 170 | 2 500 | 550 |
| HU 20-300 TP | 2 000 | 200x50 | 82x70 | 170 | 3 000 | 550 |
| HU 20-180 TP | 2 000 | 200x50 | 82x70 | 160 | 1 800 | 540 |
| HU 35-200 TP | 2 500 | 200x50 | 82x70 | 160 | 2 000 | 550 |
| HU 30-180 TP | 3 000 | 200x50 | 82x70 | 160 | 1 500 | 550 |
| HU 30-150 TP | 3 000 | 200x50 | 82x70 | 160 | 1 500 | 540 |
