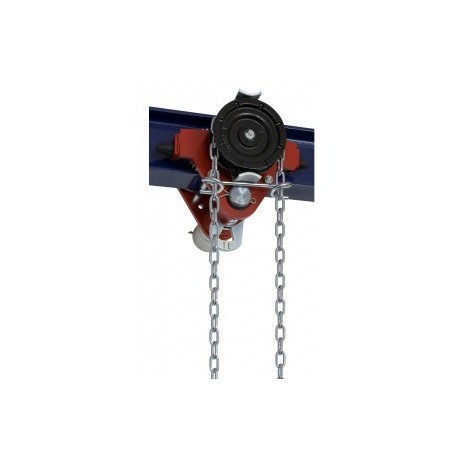

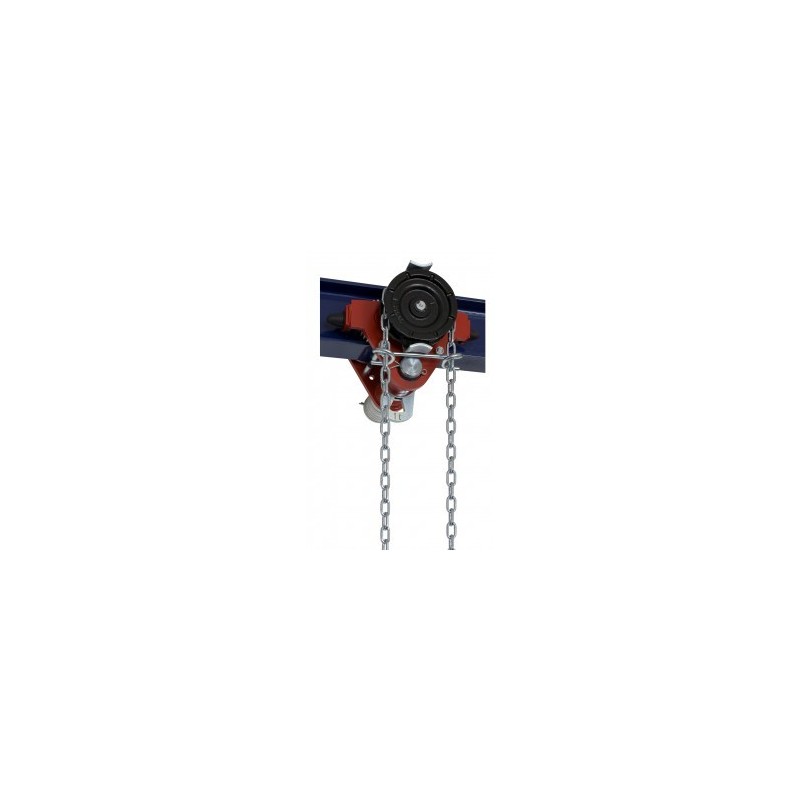

BRANO Z420 Single Beam Hand Trolley
nnovation of type Z410 – single-beam trolley is equipped with safety shock absorbers
Price:
on demand
More info
Use:
As manually controlled trolleys for suspending BRANO hoists, or hoists of other brands of the corresponding loading capacity.
Serves to move loads within the area of the crane track
- as part of the service hoists for installation and maintenance work in technological facilities of all types
- can also be used in environments with a risk of explosion (NEXP symbol)
Properties:
- simple construction, trolley adapts easily to the width of the crane track
- simple operation
- minimum maintenance demands
The single-beam trolley is intended for travelling along a horizontal crane track. Can travel along profiles with a slanted flange (rolled “I” profiles), and also along profiles with a straight flange (profily typu ” IPE, HEA, HEB, HEM “)
The trolley is manufactured as standard for a basic lift height of 3m. Lift heights from 3m to 12m are available.
Product combinations
| Model | Capacity WLL in kg | Beam (I, IPE, HEA, HEB,HEM) |
|---|---|---|
| Z420-1C | 1 000 | 125-300 (IPE, HEA, HEB) 125-155 (I – slanted flange) |
| Z420-1B | 1 000 | 58-226 (IPE, HEA, HEB) 58-155 (I – slanted flange) |
| Z420-1A | 1 000 | 58-113 |
| Z420-1,6A | 1 600 | 58-113 |
| Z420-1,6C | 1 600 | 137-300 |
| Z420-1,6B | 1 600 | 58-226 |
| Z420-3,2A | 3 200 | 82-125 |
| Z420-3,2C | 3 200 | 160-300 |
| Z420-3,2B | 3 200 | 82-226 |
| Z420-5A | 5 000 | 90-137 |
| Z420-5C | 5 000 | 170-300 |
| Z420-5B | 5 000 | 90-226 |
| Z420-7,5 | 7 500 | 125-185 (I) |
| Z420-7,5C | 7 500 | 146-300 |
| Z420-10C | 10 000 | 180-300 |
| Z420-10 | 10 000 | 125-185 (I) |
