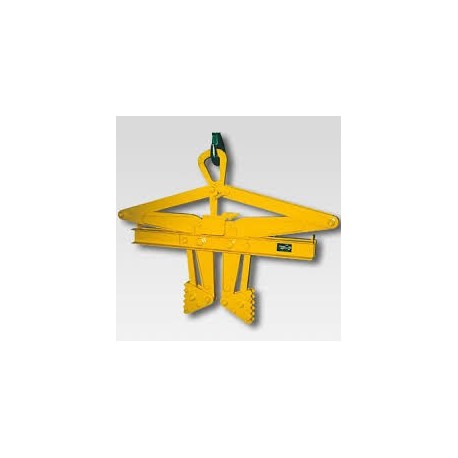

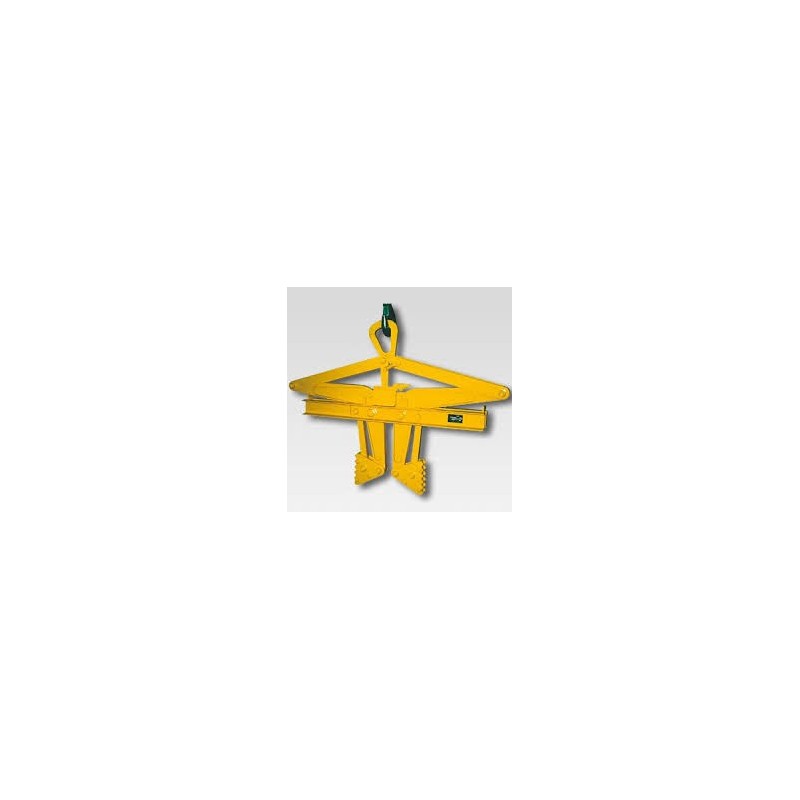

YALE TDI Inside grab
Capacity 100 - 5 000 kg
Inside g rabs are available in three versions for the handling of cylindrical and rectangular hollow bodies. The clamping jaws are available with optional steel jaws, hard manganese serrated jaws or jaws with protective lining, which are designed to grab a variety of shapes and materials. These inside grabs can be equipped with an automatic opening and closing device.
on demand
More info

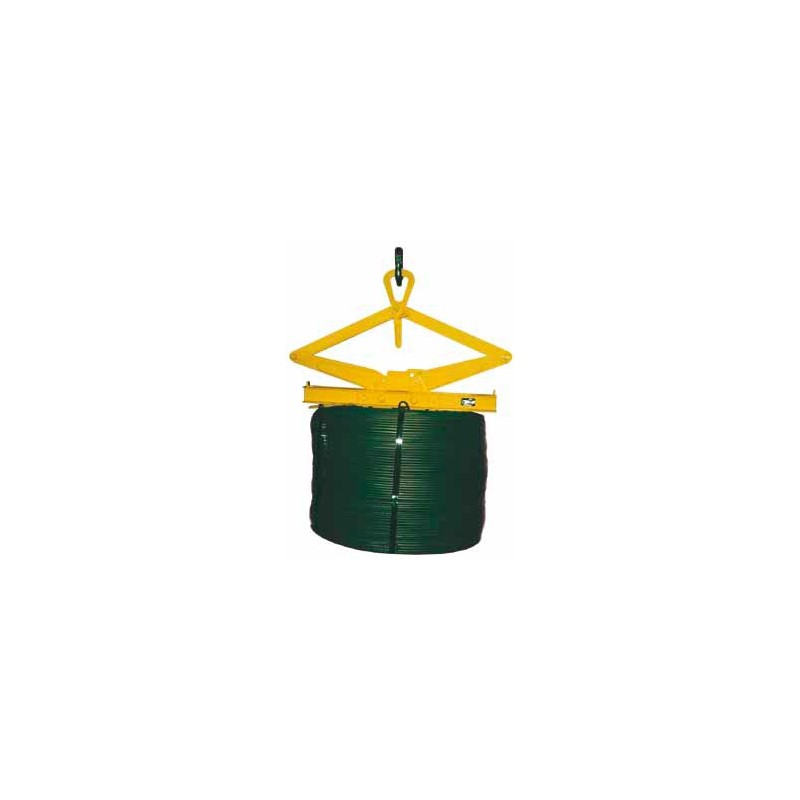

Inside g rabs are available in three versions for the handling of cylindrical and rectangular hollow bodies. The clamping jaws are available with optional steel jaws, hard manganese serrated jaws or jaws with protective lining, which are designed to grab a variety of shapes and materials. These inside grabs can be equipped with an automatic opening and closing device. Ideal especially for wire coils and hollow bodies.
Product combinations
| Model | Capacity WLL in kg | Jaw capacity, mm |
|---|---|---|
| TDI 0,1/420 | 100 | 220 - 420 |
| TDI 0,5/600 | 500 | 400 - 600 |
| TDI 1,0/600 | 1 000 | 400 - 600 |
| TDI 2,0/800 | 2 000 | 550 - 800 |
| TDI 3,0/800 | 3 000 | 550 - 800 |
| TDI 5,0/800 | 5 000 | 550 - 800 |
