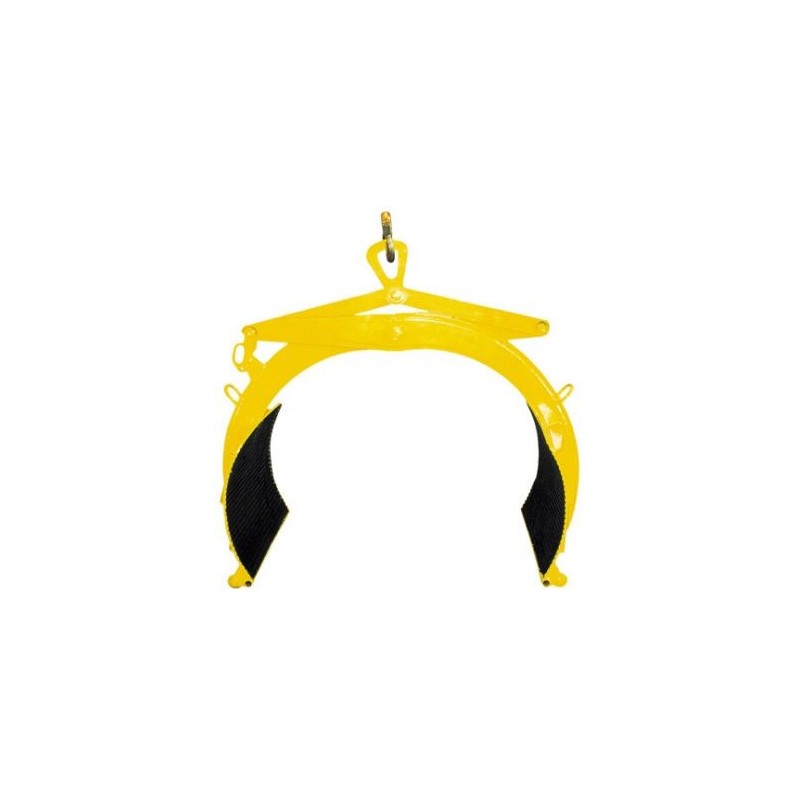

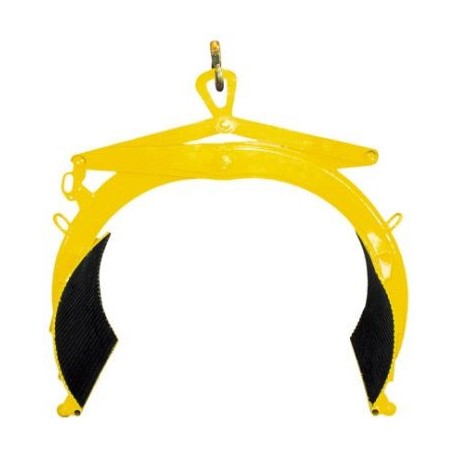

YALE TR Pipe grab
Capacity 200 - 3 000 kg
The TR pipe grab for rolls and pipes up to 1050 mm in diameter offers a large variety of different applications. Apart from pipe and drums laid on their side, this lightweight pipe grab will also handle rolls of paper, fabric, sheet metal and tubes.
Price:
on demand
More info
The TR pipe grab for rolls and pipes up to 1050 mm in diameter offers a large variety of different applications. Apart from pipe and drums laid on their side, this lightweight pipe grab will also handle rolls of paper, fabric, sheet metal and tubes. The grab can be ordered with a protective lining made of “Bremsit“ or hard rubber for extra protection in lifting loads with sensitive surface.
Product combinations
| Model | Capacity WLL in kg | Jaw capacity, mm |
|---|---|---|
| TR 0,2/650 | 200 | 450 - 650 |
| TR 0,2/550 | 200 | 350 - 500 |
| TR 0,3/750 | 300 | 500 - 750 |
| TR 0,5/750 | 500 | 500 - 750 |
| TR 0,5/900 | 500 | 650 - 900 |
| TR 0,75/1050 | 750 | 700 - 1 050 |
| TR 1,0/750 | 1 000 | 500 - 750 |
| TR 1,0/1050 | 1 000 | 700 - 1 050 |
| TR 2,0/1050 | 2 000 | 700 - 1 050 |
| TR 3,0/1050 | 3 000 | 700 - 1 050 |
