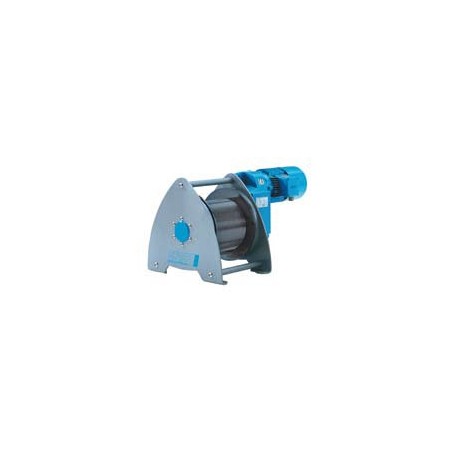

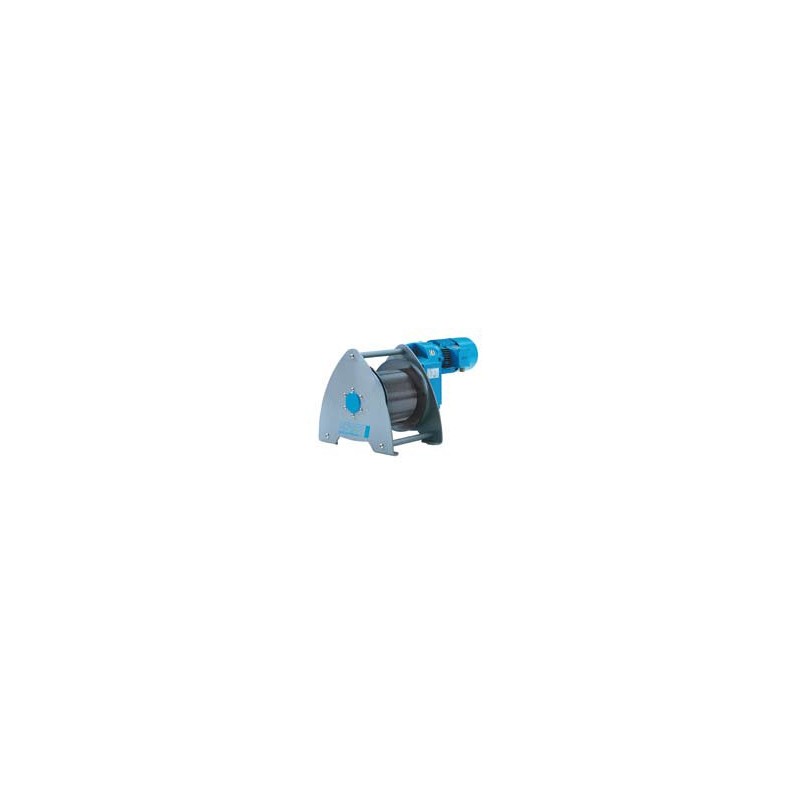

PFAFF BETA EL Electric winch
Capacity 320 - 7.500 kg
The robust and elegant electric wire rope winches BETA EL are used for lifting, lowering and pulling all types of loads in all applications. The proven technology and the high quality standard of the electric wire rope winch BETA EL guarantee trouble-free, reliable and durable operation.
on demand
More info
The robust and elegant electric wire rope winches BETA EL are used for lifting, lowering and pulling all types of loads in all applications. The proven technology and the high quality standard of the electric wire rope winch BETA EL guarantee trouble-free, reliable and durable operation. The construction kit system permits high flexibility:the electric wire rope winches BETA EL with their many options can be combined very well into an individual solution. The use of high-quality components offers safety and long service lives.
Equipment and processing
- Maintenance-free worm gear pairs or low-maintenance spur gear with milled and ground gears – running in oil bath
- Very quiet running by diagonal interlock
- Electrically released spring-applied disk brake
- Duty ratio S3 – 40 %
- Contactor control 42 V
- Range of temperature: -20 °C – +40 °C
- Powerful three-phase motor for multi-range voltage 380 – 420 V / 50 Hz or 440 – 460 V / 60 Hz
- Motor protection type IP 55
- Grooved wire rope drum
- Large wire rope capacity
- 2 rope fasteners for variable rope direction Modular construction system with many versions
- Electronic overload protection as of 1000 kg lifting load
- Large wire rope capacity
- According to the accident prevention provisions BGV D8

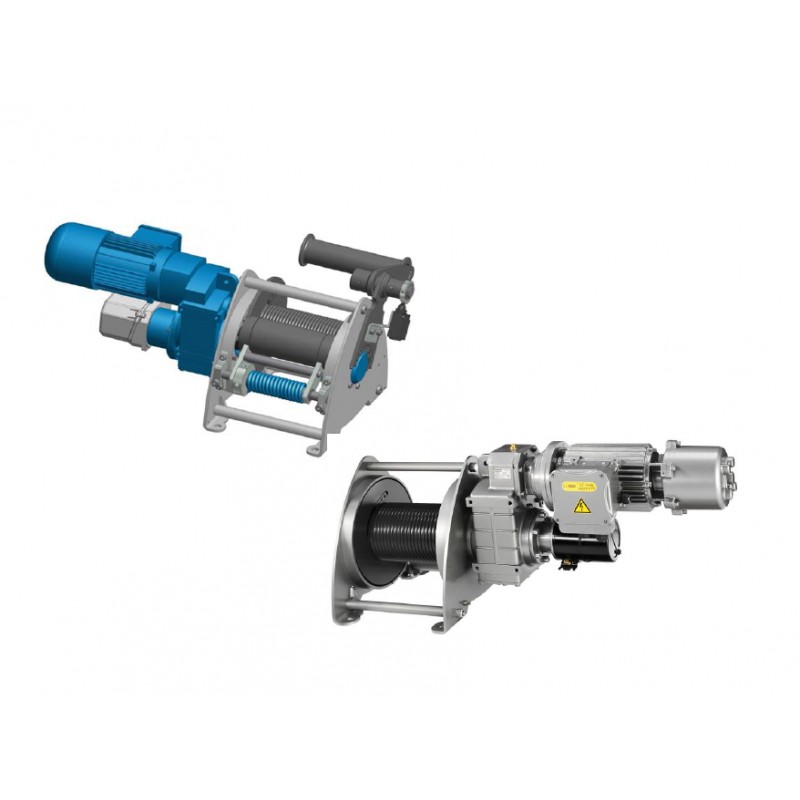

Options
- External operation via control pendant / radio
- Gear limit switch, adjustable
- Slack rope switch
- Rope pressure roller
- Special wire rope drums for multi-rope operation
- Drum extensions for higher stroke travel
- Special preservation
- Other operating voltages
- Other motorprotection types
- Absolute and incremental encoder
- Control with frequency converter forcontinuously adjustable variable speeds
Product combinations
| Model | Capacity WLL in kg | Lifting speed main lift m/min | Rope diameter in mm | Motor power, kW |
|---|---|---|---|---|
| BETA EL1 320 - 75 | 320 | 13,8 | 5 | 0,75 |
| BETA EL1 320 - 37 | 320 | 5,6 | 5 | 0,37 |
| BETA EL1 320 - 1.5 | 320 | 30,7 | 5 | 1,5 |
| BETA EL1 500 - 37 | 500 | 8,5 | 6 | 0,37 |
| BETA EL1 500 - 75 | 500 | 8,4 | 6 | 0,75 |
| BETA EL1 500 - 1.5 | 500 | 8,4 | 6 | 1,5 |
| BETA EL1 630 - 1.5 | 630 | 6,8 | 6 | 1,5 |
| BETA EL1 630 - 37 | 630 | 6,8 | 6 | 0,37 |
| BETA EL1 630 - 75 | 630 | 6,8 | 6 | 0,75 |
| BETA EL2 800 - 3 | 800 | 17,1 | 8 | 3 |
| BETA EL2 800 - 75 | 800 | 17,1 | 8 | 0,75 |
| BETA EL2 800 - 1.1 | 800 | 17,1 | 8 | 1,1 |
| BETA EL2 980 - 3 | 980 | 11 | 9 | 3 |
| BETA EL2 980 - 75 | 980 | 11 | 9 | 0,75 |
| BETA EL2 980 - 1.1 | 980 | 11 | 9 | 1,1 |
| BETA EL3 1250 - 2.2 | 1 250 | 16,3 | 12 | 2,2 |
| BETA EL2 1250 - 3 | 1 250 | 8,7 | 9 | 3 |
| BETA EL2 1250 - 75 | 1 250 | 8,7 | 9 | 0,75 |
| BETA EL3 1250 - 3 | 1 250 | 16,3 | 12 | 3 |
| BETA EL3 1250 - 1.1 | 1 250 | 16,3 | 12 | 1,1 |
| BETA EL2 1250 - 1.1 | 1 250 | 8,7 | 9 | 1,1 |
| BETA EL3 1600 - 2.2 | 1 600 | 12,1 | 12 | 2,2 |
| BETA EL3 1600 - 3 | 1 600 | 12,1 | 12 | 3 |
| BETA EL3 1600 - 1.1 | 1 600 | 12,1 | 12 | 1,1 |
| BETA EL3 2000 - 1.1 | 2 000 | 9,8 | 12 | 1,1 |
| BETA EL3 2000 - 3 | 2 000 | 9,8 | 12 | 3 |
| BETA EL3.5 2500 - 4 | 2 500 | 13,8 | 14 | 4 |
| BETA EL3.5 2500 - 2.2 | 2 500 | 13,8 | 14 | 2,2 |
| BETA EL4 3200 - 4 | 3 200 | 15,6 | 18 | 4 |
| BETA EL3.5 3200 - 2.5 | 3 200 | 11,4 | 14 | 2,5 |
| BETA EL3.5 3200 - 5 | 3 200 | 11,4 | 14 | 5 |
| BETA EL4 4000 - 4 | 4 000 | 12,7 | 18 | 4 |
| BETA EL4 5000 - 4 | 5 000 | 12 | 16 | 4 |
| BETA EL5 5000 - 3 | 5 000 | 20,3 | 20 | 3 |
| BETA EL5 6300 - 3 | 6 300 | 16,4 | 20 | 3 |
| BETA EL5 7500 - 5.5 | 7 500 | 13,4 | 20 | 5,5 |
